Icom iV86 Service Manual Addendum page 34

(Replacement page)
April 2020

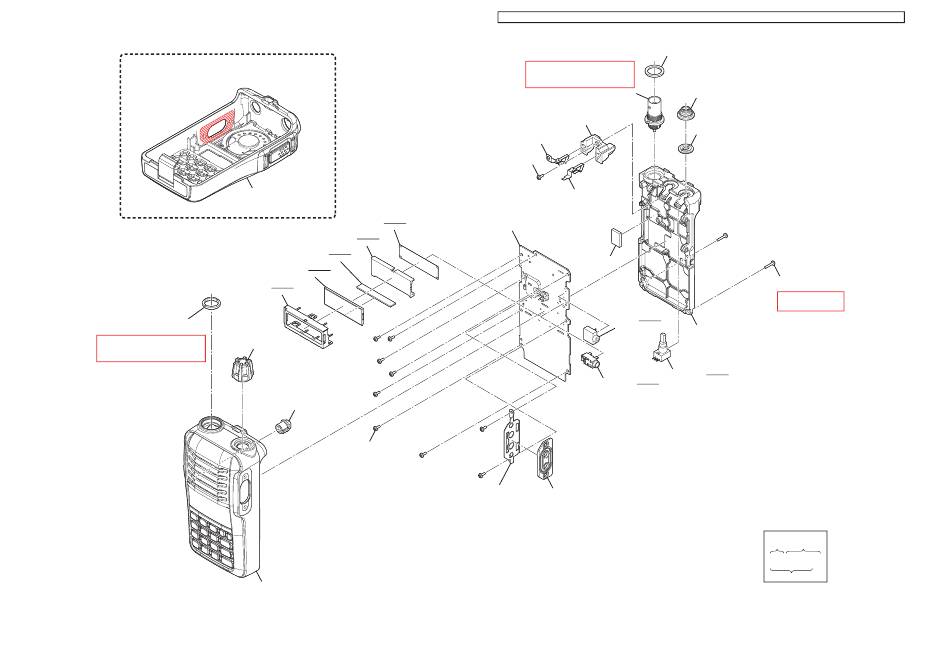

Apply the grease to the following area of the front panel
Grease type: G501 (80G) SHINETSU (8950002750)
MP26 (CHASSIS)
(8830004670)
Tightening with:
"ICOM Driver (K)" (8960000113)
Torque: 0.8 N·m
MP16 (CHASSIS)
MP9 (MAIN/MAIN-A)
(8930080260)
MP7 (MAIN/MAIN-A)
(8210034210)
EP1 (MAIN/MAIN-A)
(8930101610)
DS400 (MAIN/MAIN-A)
(5030004550)
MP8 (MAIN/MAIN-A)
(8930101200)
MP10 (CHASSIS)
(8610014170)
MP30 (CHASSIS)
(8930100760)
MP12 (CHASSIS)×9
(8810009511)
MP16 (CHASSIS)
(Refer to the parts list.)
The underlined parts have been updated from the previous version of the addendum, or from the original page.
Tightening with:
"ICOM Driver (Y)" (8960000461)
Torque: 1.5 N·m (±0.15 N·m)
J1 (CHASSIS)
(6510032950)
MP2 (CHASSIS)
(8930079900)
MP5 (CHASSIS)
(8930080400)
MP13 (CHASSIS)
(8810009511)
MP33 (CHASSIS)
(8930080100)
MAIN UNIT
MP24 (CHASSIS)
(8930101210)
J700 (MAIN/MAIN-A)
(6450000131)
J701 (MAIN/MAIN-A)
(6450002530)
MP22 (CHASSIS)
MP21 (CHASSIS)
(8930101260)
(8930101250)
6-2a
MP28 (CHASSIS)
(8850003421)
MP11 (CHASSIS)
(8930080280)
MP9 (CHASSIS)
(8830003390)
MP15 (CHASSIS)×2
(8810008761)
Tightening torque:
0.3 N·m
MP1 (CHASSIS)
(8010021713)
S400 (MAIN/MAIN-A)
(2250001090)
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
