Icom iV86 Service Manual Addendum page 56

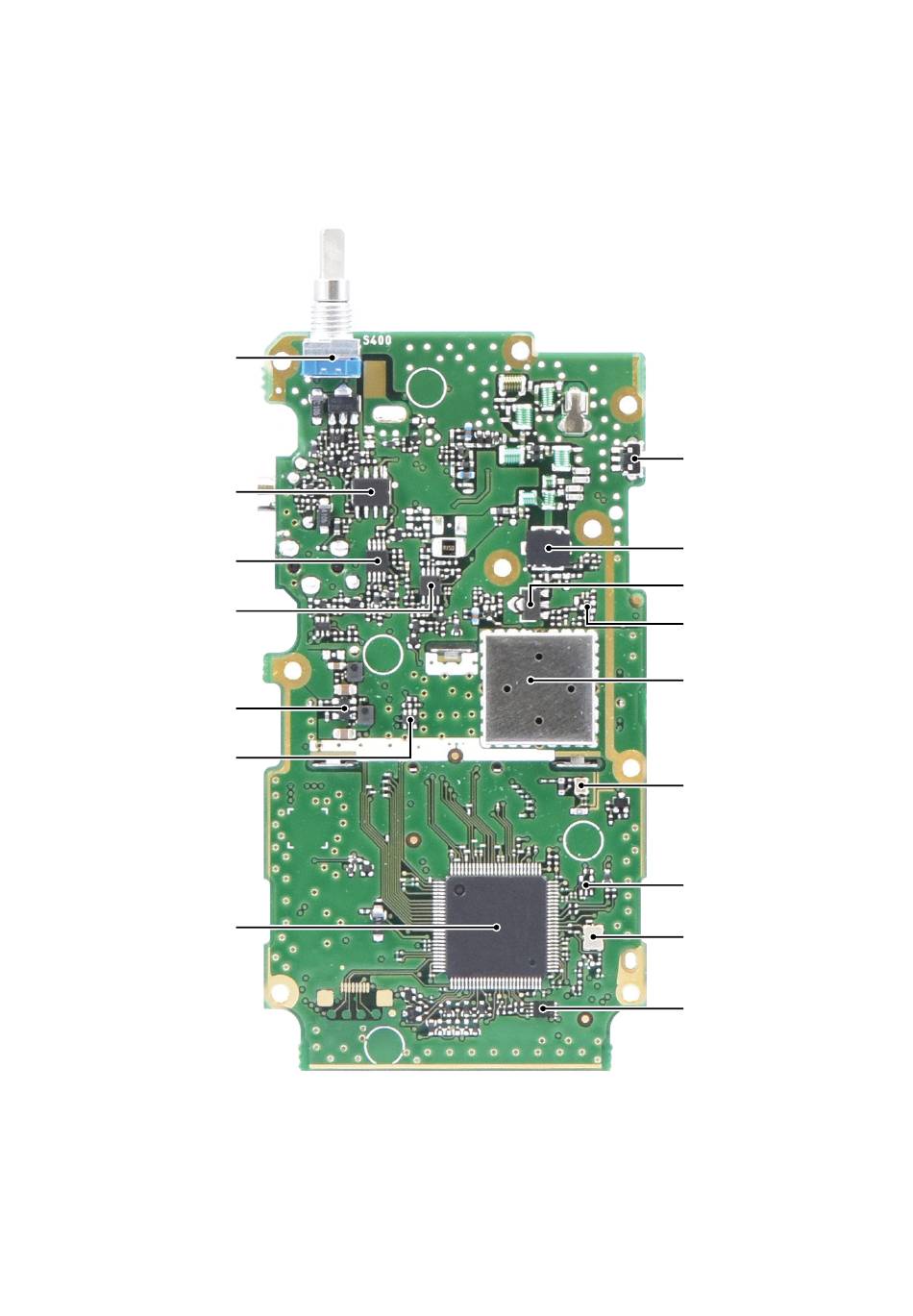

• MAIN UNIT (BOTTOM VIEW)
[VOL] (S400)
D/A CONVERTER
(IC702)
AF AMPLIFIER
(IC817)
APC AMPLIFIER
(IC1)
+3.3 V DC-DC CONVERTER
(IC707)
AF MUTE SWITCH
(IC820)
CPU
(IC402)
2-2
[PTT] (S401)
POWER AMPLIFIER
(Q9)
DRIVER
(Q7)
PRE DRIVE
(Q6)
DIRECT CONVERSION IC
(IC3)
Inside the shielded case.
13 MHz
REFERENCE OSCILLATOR
(X2)
RESET IC
(IC403)
12.288 MHz
CPU CLOCK OSCILLATOR
(X400)
EEPROM
(IC400)
