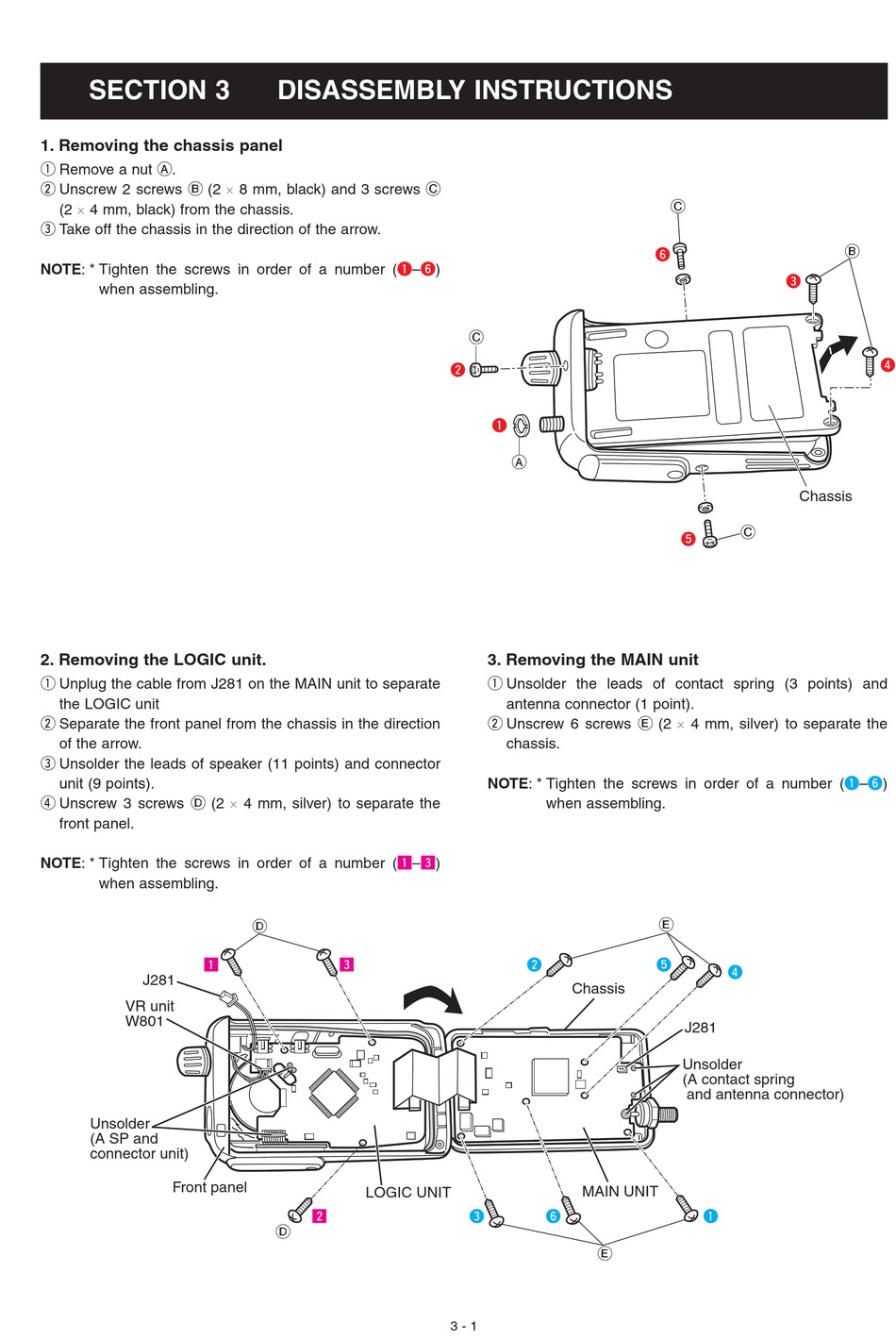

SECTION 3
1. Removing the chassis panel
q Remove a nut A.
w Unscrew 2 screws B (2 × 8 mm, black) and 3 screws C
(2 × 4 mm, black) from the chassis.
e Take off the chassis in the direction of the arrow.
NOTE: * Tighten the screws in order of a number (q–y)
when assembling.
2. Removing the LOGIC unit.
q Unplug the cable from J281 on the MAIN unit to separate
the LOGIC unit
w Separate the front panel from the chassis in the direction
of the arrow.
e Unsolder the leads of speaker (11 points) and connector
unit (9 points).
r Unscrew 3 screws D (2 × 4 mm, silver) to separate the
front panel.
NOTE: * Tighten the screws in order of a number (z–c)
when assembling.
z
����
�� ����
����
��������
�� �� ���
��������� �����
����� �����

DISASSEMBLY INSTRUCTIONS

D
c
����� ����
x
D
C
w
q
A
3. Removing the MAIN unit
q Unsolder the leads of contact spring (3 points) and
antenna connector (1 point).
w Unscrew 6 screws E (2 × 4 mm, silver) to separate the
chassis.
NOTE: * Tighten the screws in order of a number (q–y)
when assembling.
w
�������
���� ����
e y
E
3 - 1
C
y
e
�������
C
t
E
t
r
����
��������
�� ������� ������
��� ������� ����������
q
B
r
