Please refer to Page-10 JP4 jumper setting for GPIO header GPIO Port or 80
Note
*
:
Port function select:
Pin 1&2 of JP4 Open: or 80Port Function; Pin 1&2 of JP4 Closed: For Normal 8-bit GPIO Function

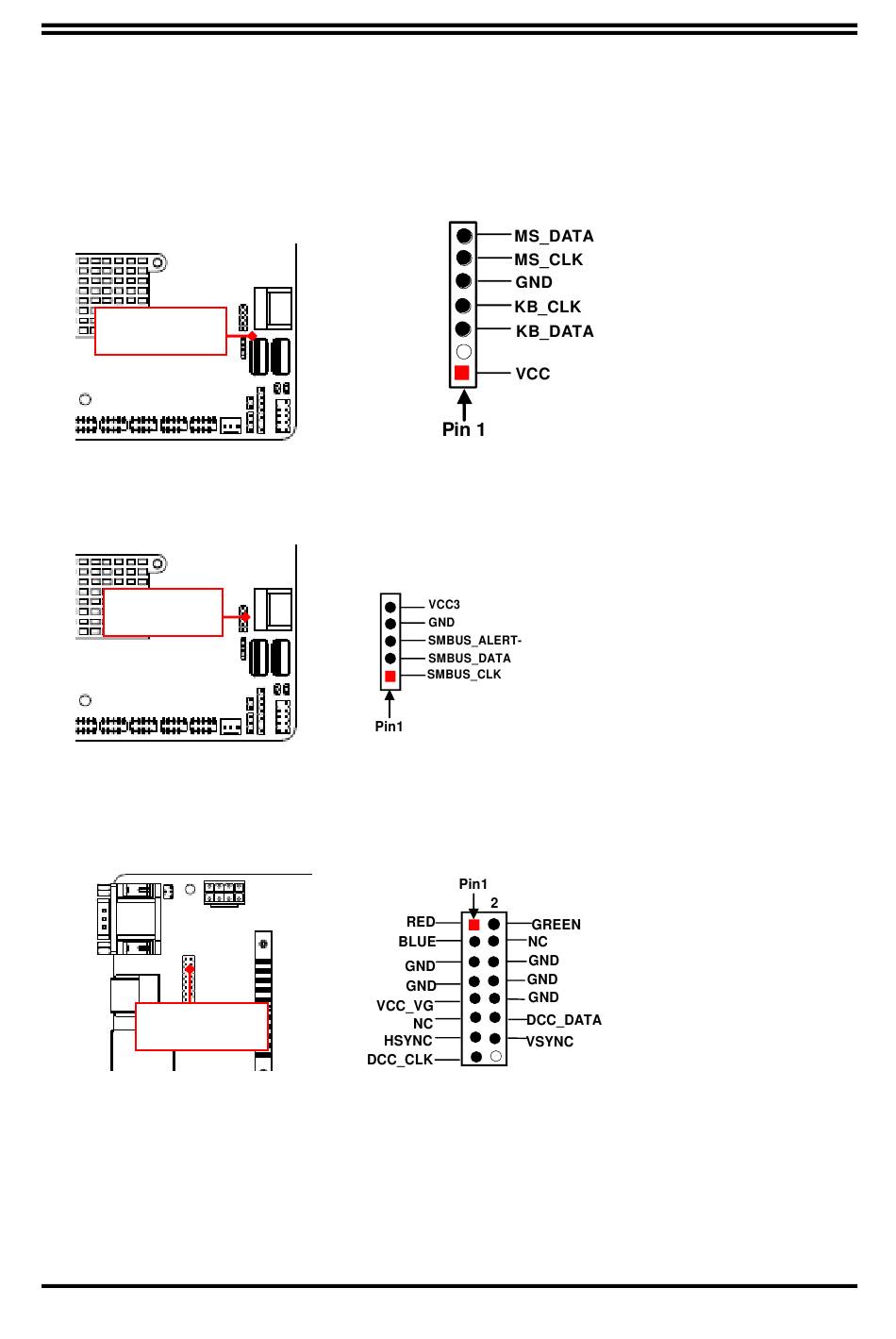

(8) PS2KBMS (6-pin): PS/2 Keyboard & Mouse Header Pitch=2.54mm
PS2KBMS
*Note: Maximum current limit is 500mA while using 5V working voltage
(9) SMBUS1 (5-pin): SMBUS Header Pitch=2.0mm
SMBUS1
*Note: Maximum current limit is 0.3A while using 5V working voltage
(10)
VGA (15-pin): Video Graphic Attach Port Header Pitch=2.54mm
VGA
18
