1 .2 System description

The system comprises the following hardware functional modules:
1 Input voltage
2 User interfaces:
3 Keyboard and display:
4 Sensor interface:
5 Microcontroller system:
2.1 User interface 1:
2.2 User interface 2:
FC01- CA | Flow Meter
DESCRIPTION
DC supply (terminal XV)
2.1 signal outputs
2.2 analogue output
keypads
liquid crystal display
calorimetric monitoring head type CSx _ (terminal XSK)
signal processing and monitoring
Power supply DC/DC
1
4
Sensor
Microcontroller
interface
system
calorimetric
monitoring
5
head CSx _
Keyboard and Display
3
1 Input voltage: DC 19 ... 32 V
relay outputs:
transistor outputs:
analogue outputs
current or voltage
3 Keyboard/Display: keypads
LC display
2 x 16 digits
4 Sensor interface: calorimetric monitoring head type CSx_
5 Controller system :
signal processing
I/O - controlling
monitoring
parameter memory
2-way or 4-way signal outputs (terminal XAH)
1 and 2 (terminal XAO)
2.1
User
interface 1
User
interface 2
2.2
2 limit values
2 limit values +
1 error indication +
1 busy signal or
frequency output
(software selected)

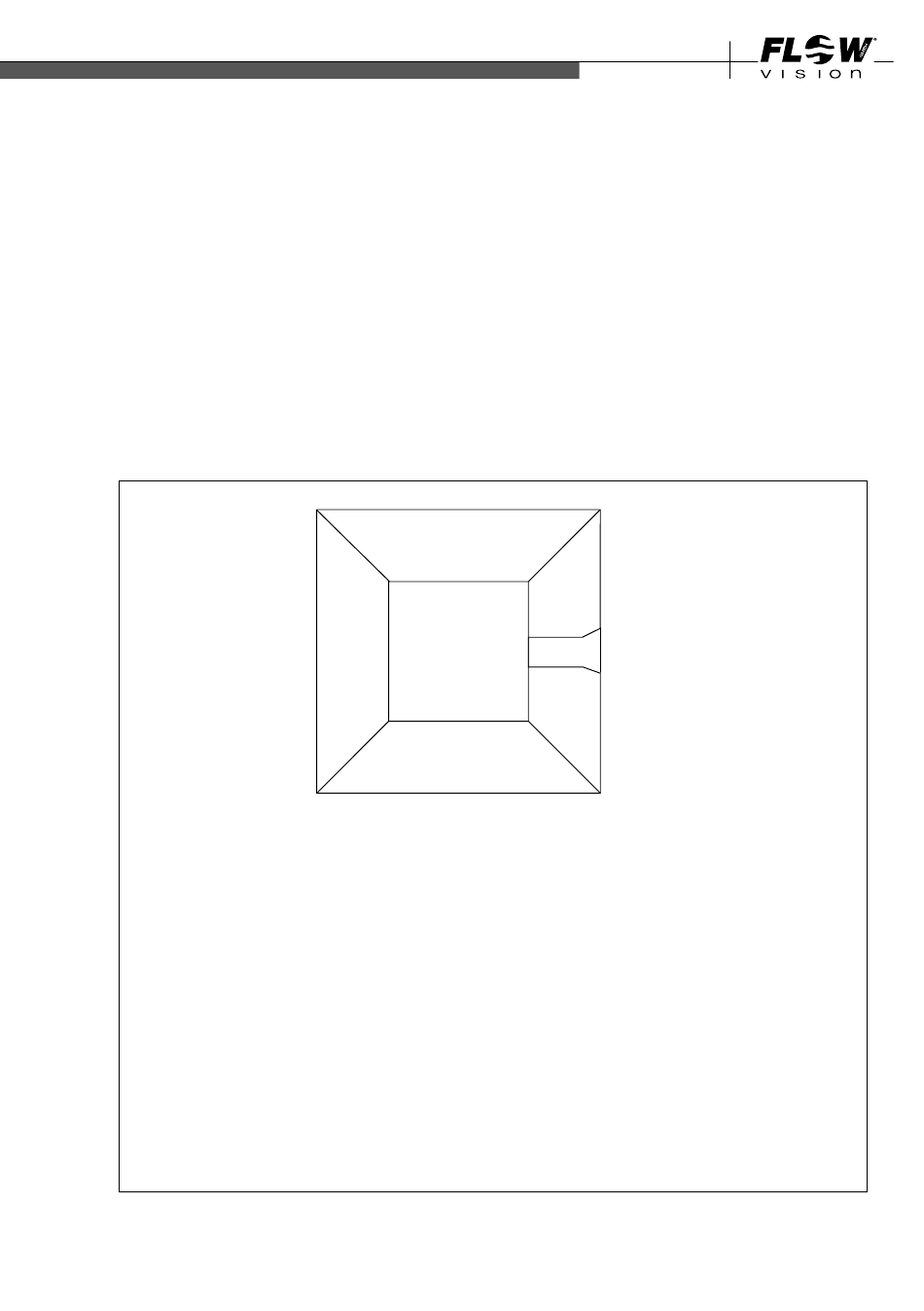

fig. 2
