2 . 1 .2 Mechanical installation

2 . 1 .2 . 1 Thread-mounted monitoring head CST-11

Application:
Medium:
Styles:
Materials of the area
exposed to medium:
If installed in fittings or T pieces with appropriate internal thread the max. length of the connection
piece should be 36 mm from the inner pipe wall.
FC01- CA | Flow Meter
INSTALLATION
general industry and installation
gases
G1/2A
stainless steel 1.4571 /AISI 316 Ti (standard)
nickel based alloy (Hastelloy C4 2.4610)
M
G1/2A
S
round plug
G1/2A
øA
B
øA
18 10
SW27

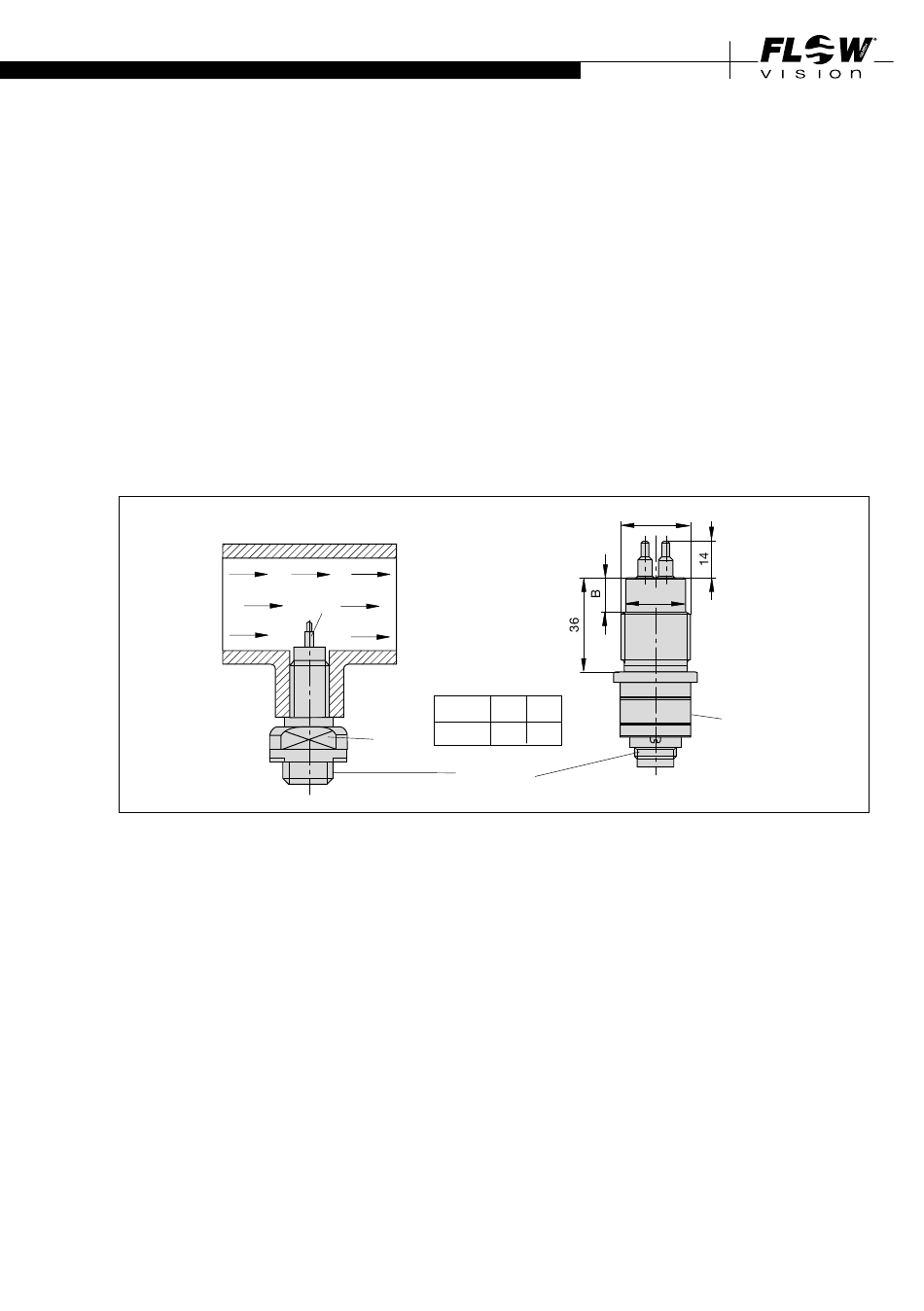

fig. 3
13
