FC01- CA | Flow Meter
INSTALLATION

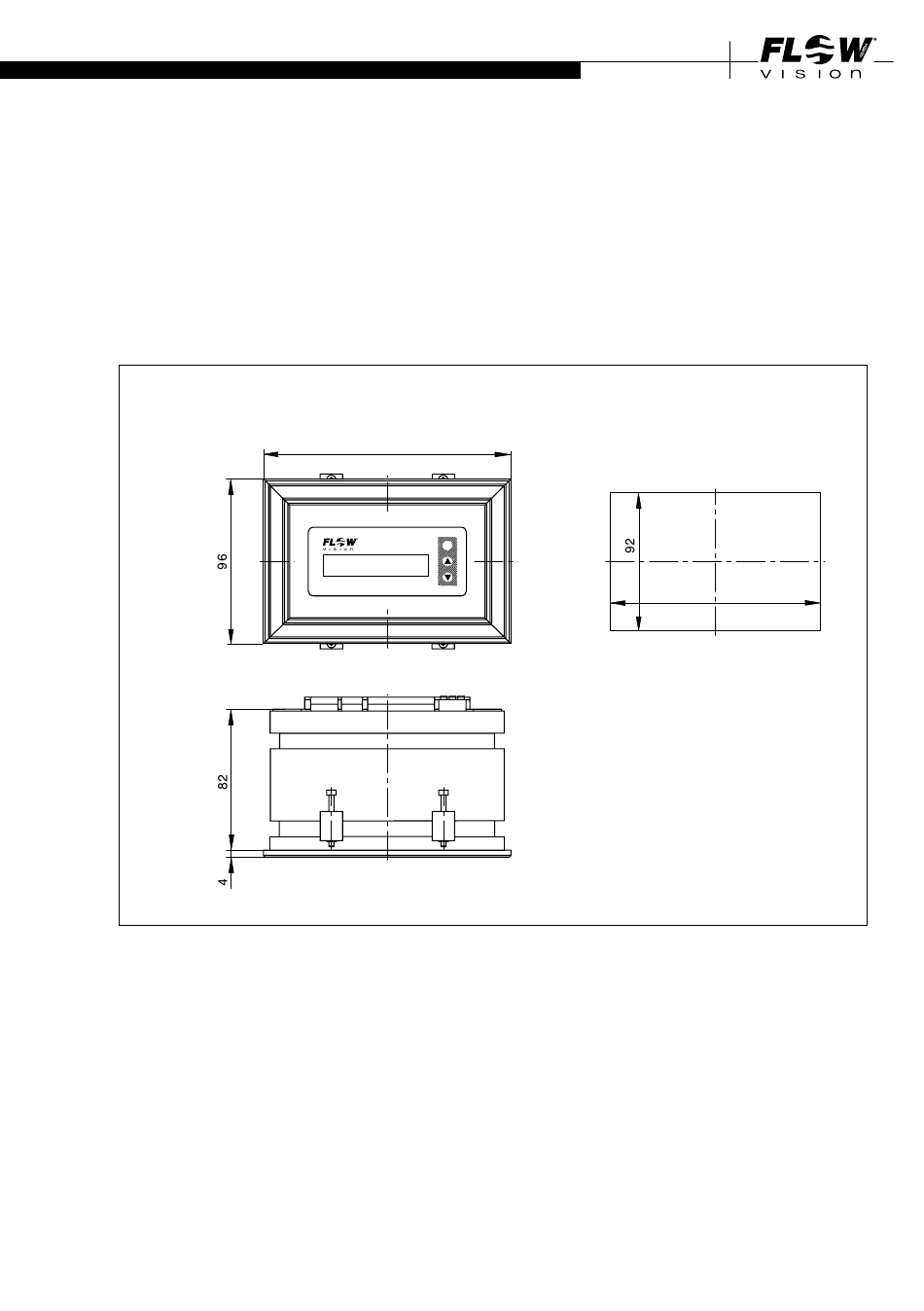

2 .2 . 1 .3 Front panel mounted housing FC01-CA-ST-U1 . . . (fig. 17)
• Insert housing into front of mounting hole and fix with 4 screws (see fig. 17) from the rear.
144
mounting hole
DIN 43700
M
140
fig. 17
25
