1.5 StackMaster™ SNMP Management Unit
Connectors
Indicators
1-10
The optional StackMaster™ SNMP Management unit can be installed at
the top of the StackMaster™ stack to provide SNMP formatted information
to external network management platforms.
StackMaster™
Network Management Unit
Ethernet
NOTE: SNMP management also can be provided by an optional SNMP
management circuit board installed in one of the StackMaster™ units.

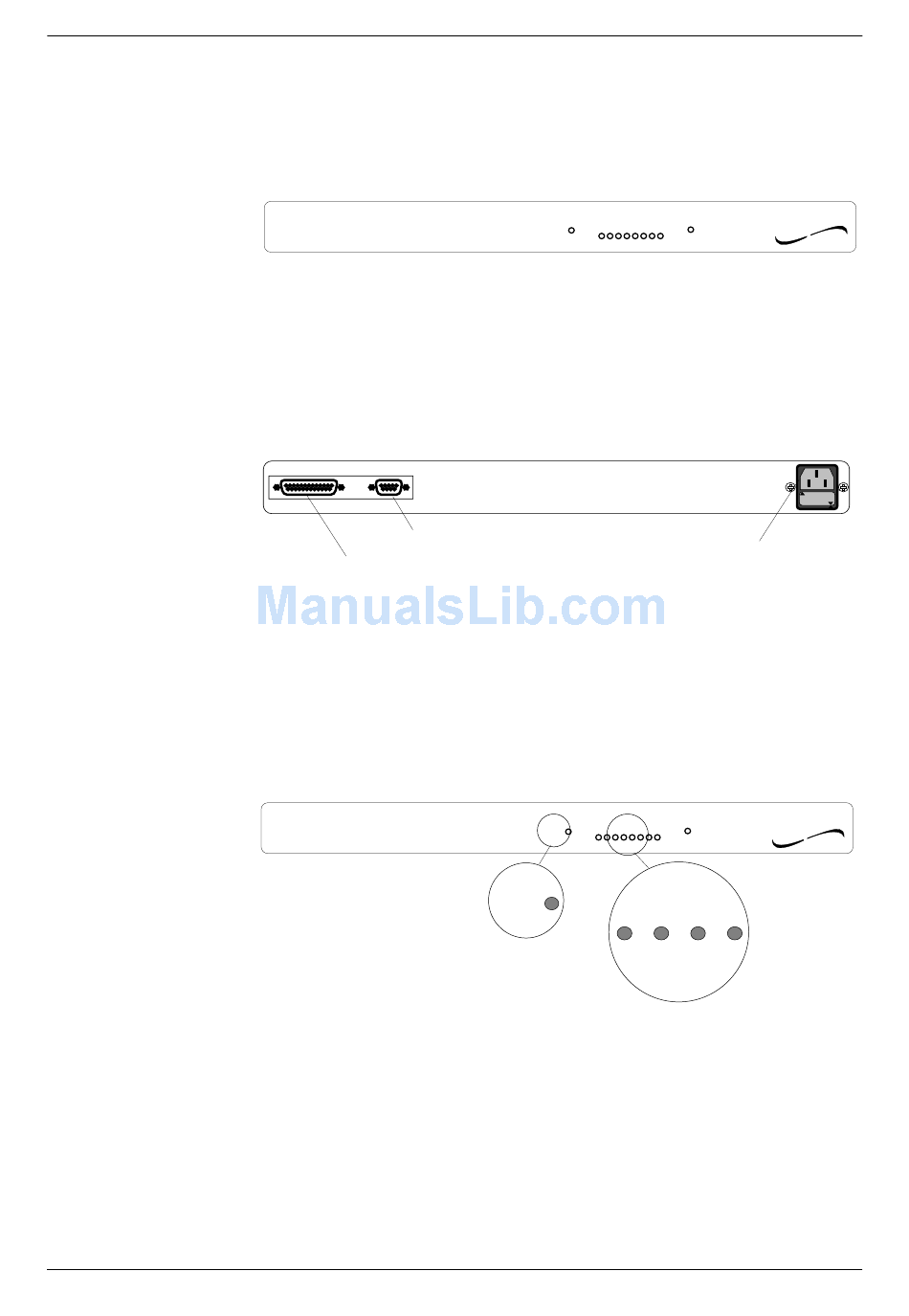

A Management Interface (bus) connector, DB9 Serial Port connector, and
power connector are provided at the back of the SNMP Management hub.
Management Interface Serial Port
Serial Port
Management Interface
When the StackMaster™ SNMP Management hub is powered, the Power
indicator is illuminated. When the StackMaster™ Stack is functioning
normally, the eight Status indicators cycle in a steady roll.
StackMaster™
Network Management Unit
Ethernet
Status
Power
Status
Power
Power
Status
Reset
T R A N S I T I O N
n e t w o r k s
220-240
110-120
Power
Reset
T R A N S I T I O N
n e t w o r k s
StackMaster™
