SINGLE Managed Unit

STACKED Unmanaged Units

SINGLE Unmanaged Unit

MANAGEABLE HUB

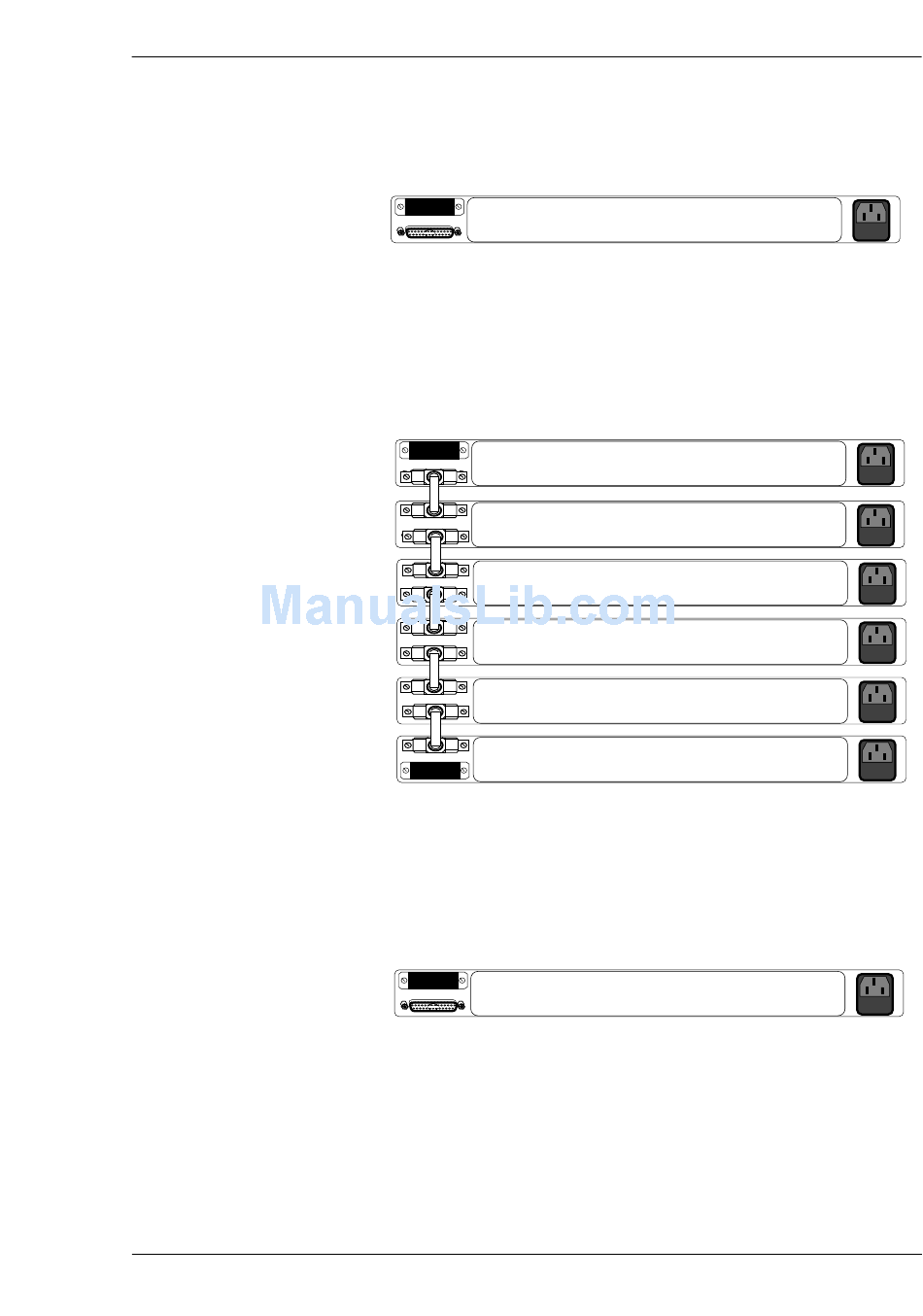

If internal SNMP network management is used in a stack consisting of a
single hub, a terminator should be installed at the top cascade position of
the hub.
Terminator
Cascade A
Cascade B
If no SNMP network management is used in a stack, a terminator should
be installed at the top position of the TOP hub of the stack AND at the
bottom position of the BOTTOM hub of the stack.
Terminator
Cascade A
Cascade B
Cascade A
Cascade B
Cascade A
Cascade B
Cascade A
Cascade B
Cascade A
Cascade B
Cascade A
Terminator
Cascade B
If a stack consists of a single hub without network management, a
terminator should be installed at the top cascade position of the hub.
Terminator
Cascade A
Cascade B
3. INSTALLATION
3-11
