12-Port 10Basefl Repeater - Transition Networks StackMaster SMHB-E-FL-12 User Manual

1.4

12-Port 10BaseFL Repeater

Connectors
Indicators
1-8
The StackMaster™ 12-Port 10BaseFL hub supports twelve 10BaseFL port
connections. Additionally, the StackMaster™ 12-Port 10BaseFL hub
supports installation of an SNMP Management Board that allows the
StackMaster™ 12-Port 10BaseFL hub to manage the entire Stack.

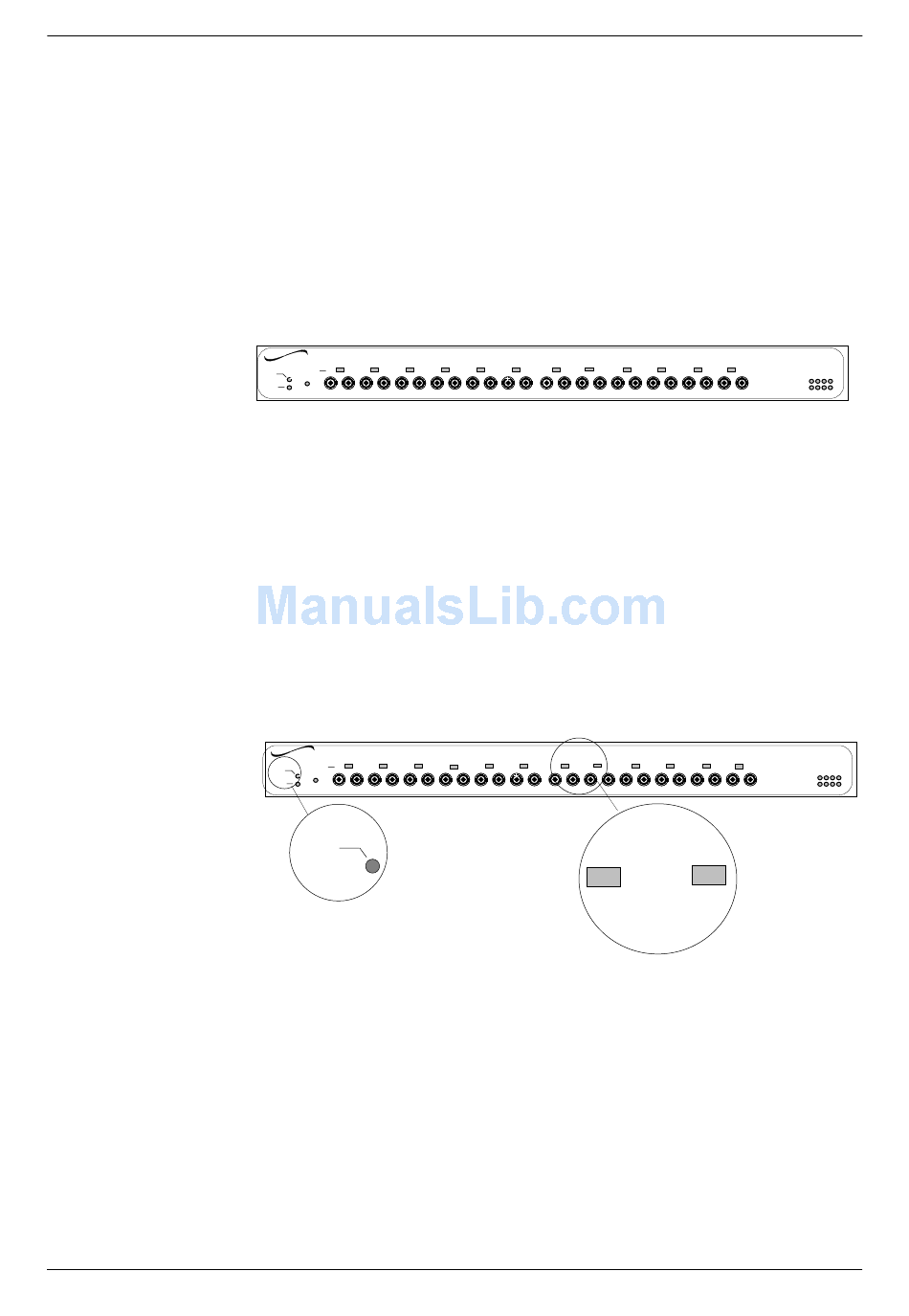

Twelve (12) 10BaseFL port connections through transmit (TX) and receive
(RX) ST connectors are provided at the front of the 12-Port 10BaseFL hub.
StackMaster™ FL
T R A N S I T I O N
n e t w o r k s
1 2 3
Port
Status
Power
RX TX RX TX RX TX
Mgmt
Enable
Reset
NOTE: A power connector, DB9 serial port connector, AUI port
connector, and Cascade (bus) connector are provided at the back of the
12-Port 10BaseFL hub.
When the StackMaster™ 12-Port 10BaseFL hub is powered, the Power
indicator is illuminated. Port Status LEDs above each of the twelve
10BaseFL TX/RX port connector pairs indicate link status for each of the
twelve input/output connections.
green LED:
StackMaster™ FL
T R A N S I T I O N
n e t w o r k s
1 2 3
Port
Status
Power RX TX RX TX RX
Mgmt
Enable
Reset
Power
5 6 7
4 8
RX TX RX TX RX TX RX TX RX TX
good link
4 5 6 7
8
TX RX TX RX TX RX TX RX TX RX
7
9 10
11 12
RX TX RX TX RX TX RX TX
9 10 11 12
TX RX TX RX TX RX TX RX TX
8
StackMaster™
Management
Status
1 2 3 4
5 6 7 8
Management
Status
1 2 3 4
5 6 7 8
