CRMFE10xx-20x / SRMFE10xx-20x
Part Number Port One - Copper
100Base-TX
CRMFE1029-200 RJ-45
SRMFE1029-200 100 m (328 ft)*
CRMFE1029-201 RJ-45
SRMFE1029-201 100 m (328 ft)*
A CRMFE1029-200 or a SRMFE1029-200 is to be installed
with either a CRMFE1029-201 or a SRMFE1029-201;
where one is the local converter and the other is the
remote converter.
CRMFE1029-202 RJ-45
SRMFE1029-202 100 m (328 ft)*
CRMFE1029-203 RJ-45
SRMFE1029-203 100 m (328 ft)*
A CRMFE1029-202 or a SRMFE1029-202 is to be installed
with either a CRMFE1029-203 or a SRMFE1029-203;
where one is the local converter and the other is the
remote converter.
CRMFE1039-200 RJ-45
SRMFE1039-200 100 m (328 ft)*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network. (TX = transmit, RX = receive)
Optional Accessories for the SRMFE10xx-20x (sold separately).
Part Number Description
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone
Output: 12.6VDC, 1.0 A
SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-back;
Output: 12.6VDC, 1.0 A
E-MCR-04 12-Slot Media Converter Rack (includes universal internal power
supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBL Optional Wall Mount Brackets; Length: 4.0 in. (102 mm)
WMBV Optional Vertical Mount Bracket; Length: 5.0 in. (127 mm)
WMBD Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)
WMBD-F Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84 mm)
2
24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
Port Two - Fiber-Optic - 100Base-FX
single fiber single mode
SC, 1310 nm TX / 1550 nm RX
20 km (12.4 miles)*
SC, 1550 nm TX / 1310 nm RX
20 km (12.4 miles)*
SC, 1310 nm TX / 1550 nm RX
40 km (24.8 miles)*
SC, 1550 nm TX / 1310 nm RX
40 km (24.8 miles)*
LC,1300 nm multimode,
2 km (1.2miles)*

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when setting the 4-position switch and the jumpers and when
installing the CRMFE10xx-20x slide-in-module into the PointSystem™ chassis.
Failure to observe this caution could result in damage to, and subsequent
failure of, the media converter.

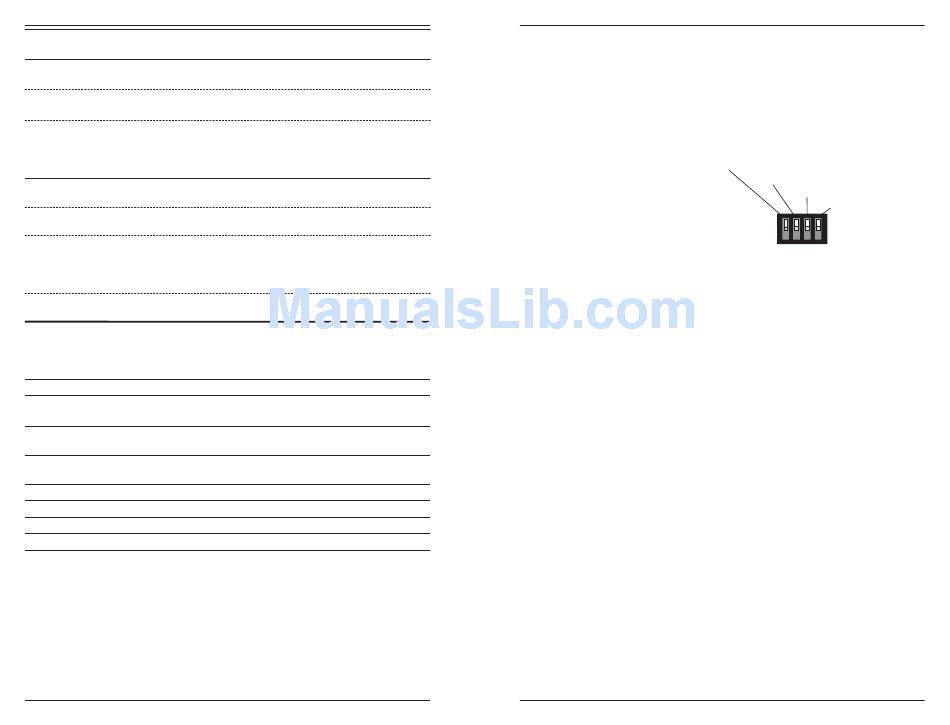

Set the 4-Position Switch
SRMFE10xx-200: The switch is on
the side of the media converter
housing.
CRMFE10xx-20x: The switch is on
the media converter ciruit board.
Use a small flatblade screwdriver or a similar device to set the recessed
switches. Refer to the drawing (above) for the locations of the four individual
switches.
1. Twisted-Pair Auto-Negotiation
up Enable Auto-Negotiation for the copper connection (see page 8).
down Disable Auto-Negotiation for the copper connection.
2. Twisted-Pair Pause Feature
up Enable Pause feature for the copper connection (see page 9).
down Disable Pause feature for the copper connection
3. Link Pass-Through
up Enable Link Pass-Through (see page 8).
down Disable Link Pass-Through.
4. Far-End Fault
up Enable Far-End Fault (see page 9).
down Disable Far-End Fault.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
Auto-Negotiation (up = enable)
Pause (up = enable)
Link Pass-Through (up = enable)
Far End Fault
(up = enable)
1 2 3 4
