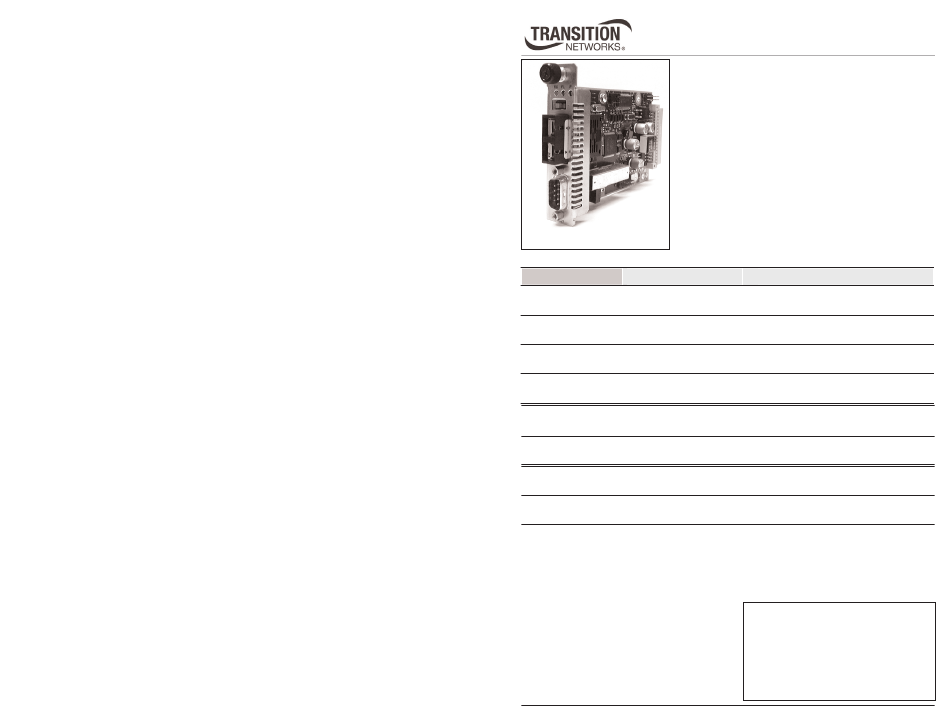

User's Guide
CRS2F31xx-100
Slide-in-Module Media Converter
RS-232 to Fiber

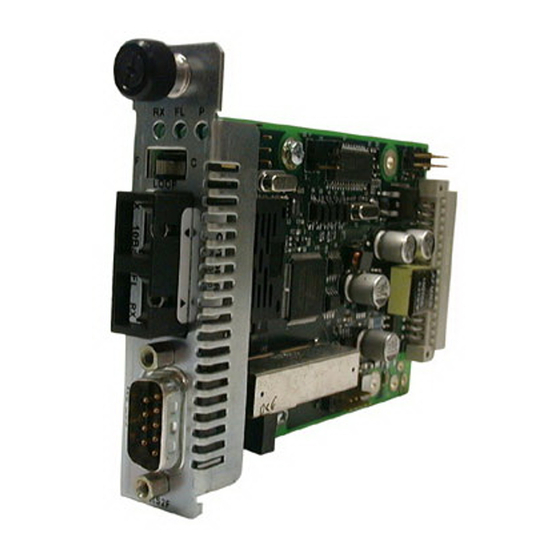

Transition Networks CRS2F31xx-100 series media
converters are designed to be installed in the
PointSystem™ chassis and connect copper RS-232
cable to fiber-optic cable at asynchronous data rates up
to 115 kB/s.
The CRS2F31xx-100 is designed to be installed in pairs
where one is the local media converter and the other is
the remote.
Part Number
Port One - Copper
RS-232
CRS2F3111-100
15 m (50 ft)
RS-232
CRS2F3113-100
15 m (50 ft)
RS-232
CRS2F3114-100
15 m (50 ft)
RS-232
CRS2F3115-100
15 m (50 ft)
RS-232
CRS2F3129-100
15 m (50 ft)
RS-232
CRS2F3129-101
15 m (50 ft)
RS-232
CRS2F3129-102
15 m (50 ft)
RS-232
CRS2F3129-103
15 m (50 ft)
**Install CRS2F3129-100/101 or CRS2F3129-102/103 in the same network
where one is the local converter and the other is the remotec onverter.
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network
installation.
Port Two - Duplex Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 TX/1550 RX nm single mode
20 km (12.4 miles)**
SC, 1550 TX/1310RX nm single mode
20 km (12.4 miles)**
SC, 1550 TX/1310RX nm single mode
40 km (12.4 miles)**
SC, 1550 TX/1310RX nm single mode
40 km (24.8miles)**
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRS2F31-100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CRS2F31-100 Series

Summary of Contents for Transition Networks CRS2F31-100 Series

  • Page 1 User’s Guide CRS2F31xx-100 Slide-in-Module Media Converter RS-232 to Fiber Transition Networks CRS2F31xx-100 series media converters are designed to be installed in the PointSystem™ chassis and connect copper RS-232 cable to fiber-optic cable at asynchronous data rates up to 115 kB/s.

  • Page 2: Installation

    CRS2F31xx-100 Installation Installation -- Continued CAUTION: Wear a grounding device and observe electrostatic discharge precautions Using Null-Modem RS-232 Cable when setting the switches and jumper. Failure to observe this caution could result in Set the switch to DTE Set the switch to DCE damage to, and subsequent failure of, the media converter.
  • Page 3 CRS2F31xx-100 Installation Installation -- Continued -- Continued CAUTION: Wear a grounding device and observe electrostatic discharge precautions Install the Fiber Cable when setting the hardware/software jumper and installing the media converter. Failure Locate or build fiber cable with male, two-stranded TX to RX connectors to observe this caution could result in damage to, and subsequent failure of, the media installed at both ends.

  • Page 4: Operation

    CRS2F31xx-100. For example, a local Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm CRS2F3111-100 converter (that is installed in a managed Transition Networks Link Budget: 26.0 dB PointSystem™ chassis) is connected, via fiber, to a remote SRS2F3111-100...

  • Page 5: Technical Specifications

    SNMP interface, select “disable loop-back” option. depends on the physical characteristics and the installation configuration of the • Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600. Transition Networks PointSystem™ chassis in which this slide-in-module will be installed. • Proceed to step 5.
  • Page 6 International: 00-1-952-941-7600 Local Converter Remote Converter Transition Now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-Based Seminars w/SNMP Management Transition Networks provides seminars via live web-based training. •...

  • Page 7: Compliance Information

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
