User's Guide
CGETF10xx-10x
Slide-in-Module Media Converter
• Gigabit Ethernet
• Copper to Fiber
• 1000Base-T to 1000Base-SX/LX

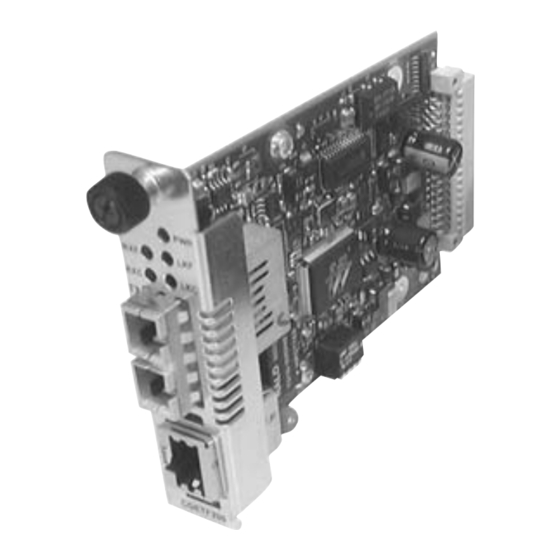

Transition Networks CGETF10xx-10x Gigabit
Ethernet media converter connects 1000Base-T
shielded or unshielded twisted-pair copper cable to
1000Base-SX or 1000Base-LX, fiber-optic cable.
The CGETF10xx-10x is also designed to be
installed in the Transition Networks PointSystem™
chassis.
Part Number
Port One - Copper
CGETF1013-105 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1014-105 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1015-105 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1017-105 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1018-105 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1024-105 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1035-105 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1039-105 RJ-45 1000Base-T
100 m (328 ft)*
*Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network installation.
NOTE: The stand-alone version of the media
converter is SGETF10xx-10x. For more
information, see the SGETF10xx-10x user's
guide on-line at: www.transition.com.
Port Two - Duplex Fiber-Optic
SC, 1000Base-SX, 850 nm multimode
300 m (984 ft)* (62.5/125
m cable)
µ
500 m (1,640 ft)* (50/125
m cable)
µ
SC, 1000Base-LX, 1310 nm single mode
10 km (6.2 miles)*
SC, 1000Base-LX, 1310 nm single mode
25 km (15.5 miles)*
SC, 1000Base-LX, 1550 nm single mode
65 km (40.4 miles)*
MT-RJ, 1000Base-SX, 850 nm multimode
300 m (984 ft)* (62.5/125
m cable)
µ
500 m (1,640 ft)* (50/125
m cable)
µ
SC, 1000Base-SX, 1300 nm extended
multimode, 2 km (1.2 miles)*
Note: 62.5/125
m (fiber only)
µ
SC, 1000Base-LX, 1550 nm single mode
125 km (77.5 miles)*
LC, 1000Base-SX, 850 nm multimode
300 m (984 ft)* (62.5/125
m cable)
µ
500 m (1,640 ft)* (50/125
m cable)
µ
Installation . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . .8
Technical Specifications . . . . .9
Troubleshooting . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . .11
Compliance Information . . . .12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CGETF10XX-10X
Summary of Contents for Transition Networks CGETF10XX-10X
- Page 1 Transition Networks CGETF10xx-10x Gigabit Ethernet media converter connects 1000Base-T shielded or unshielded twisted-pair copper cable to 1000Base-SX or 1000Base-LX, fiber-optic cable. The CGETF10xx-10x is also designed to be installed in the Transition Networks PointSystem™ chassis. Part Number Port One - Copper...
-
Page 2: Installation
4. Fiber Auto-Negotiation down = Enable Auto-Negotiation for the fiber link. If the CGETF10xx-10x is connected via fiber to another CGETF10xx-10x, both media converters must have the fiber Auto-Negotiation setting disabled (switch 4 = up). Otherwise, the fiber-linked media converters will not link up. -
Page 3: Operation
Install the Fiber Cable Locate or build 1000Base-SX/LX compliant fiber cable with male, two- stranded TX to RX connectors installed at both ends. Connect the fiber cables to the CGETF10xx-10x media converter as described: • Connect the male TX cable connector to the female TX port. -
Page 4: Link Pass-Through
Enable/disable full-duplex and half-duplex advertisement • Enable/disable Link Pass-Through • Enable/disable Auto-Negotiation • Symmetric pause • Asymmetric TX (transmit) pause • Asymmetric RX (receive) pause • Disable pause See the on-line documentation that comes with Transition Networks FocalPoint™ software for applicable commands and usage. -
Page 5: Cable Specifications
PointSystem™ chassis in which this slide-in-module will be installed. The information contained in this user’s guide is subject to change. For the most up-to-date information on the CGETF10xx-10x media converter, view the user’s guide on-line at: max: +2.0 dBm www.transition.com. -
Page 6: Troubleshooting
CGETF1029-107, CGETF1029-108, CGETF1039-105 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CGETF10xx-10x to which this declaration refers is in conformity with the following standards. CISPR 22:1993; EN 55022:1998 Class A; FCC Part 15 Subpart B; EN 55024:1998; 21CFR subpart J; EN 61000-2-3:1995; EN61000-3-3:1995;... -
Page 7: Compliance Information
All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions © 2003-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks.
