Transition Networks C/E-100BTX-FX-05(LH) User Manual

100base-tx to 100base-fx slide-in-module media converters
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Enlarged version

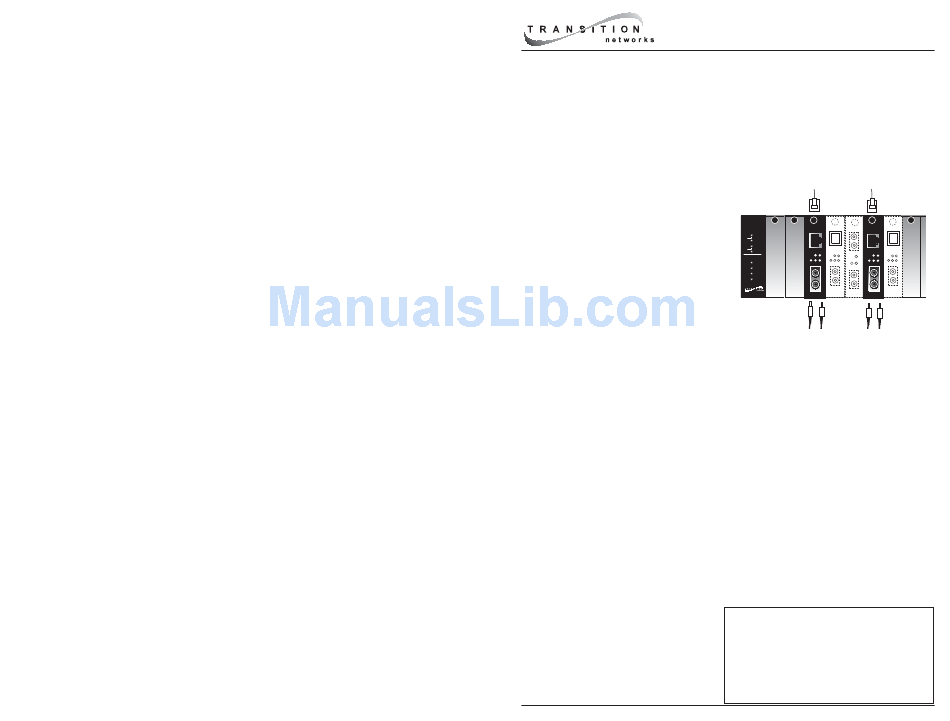

100BASE-TX to 100BASE-FX
Slide-In-Module Media Converters
C/E-100BTX-FX-05
USER'S GUIDE
Designed to be installed in the TRANSITION Networks E-MCC-1600 Media
Converter Chassis, C/E-100BTX-FX-05 series
Ethernet™ 100BASE-TX to 100BASE-FX
media converters connect 100 Mb/s
copper cable to 100 Mb/s fiber cable.
C/E-100BTX-FX-05
Provides an RJ-45 twisted pair
100BASE-TX connector and a set of RX
(receive) and TX (transmit) ST
100BASE-FX connectors to 1300 nm
multimode fiber-optic cable.
C/E-100BTX-FX-05(SC)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) SC
100BASE-FX connector to 1300 nm
multimode fiber-optic cable.
C/E-100BTX-FX-05(MT)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) MT-RJ
100BASE-FX connector to 1300 nm
multimode fiber-optic cable.
C/E-100BTX-FX-05(SM)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) SC
100BASE-FX connector to 1300 nm
singlemode fiber-optic cable.
C/E-100BTX-FX-05(SMLC)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) LC
100BASE-FX connector to 1300 nm
singlemode fiber-optic cable.
Media
Conversion
Center
Power Modules
Power
1
In Use
Power
2
In Use
Management
Module
Power
Link
TX
RX
C/E-100BTX-FX-05(LH)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) SC
100BASE-FX connector to 1300 nm
singlemode fiber-optic cable.
C/E-100BTX-FX-05(XL)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) SC
100BASE-FX connector to 1300 nm
singlemode fiber-optic cable.
C/E-100BTX-FX-05(LW)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) SC
100BASE-FX connector to 1550 nm
singlemode fiber-optic cable.
Installation . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . . . .9
Technical Specifications . . . . . . . . .11
Compliance Information . . . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C/E-100BTX-FX-05(LH) and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks C/E-100BTX-FX-05(LH)

Summary of Contents for Transition Networks C/E-100BTX-FX-05(LH)

  • Page 1: Table Of Contents

    Slide-In-Module Media Converters C/E-100BTX-FX-05 USER’S GUIDE Designed to be installed in the TRANSITION Networks E-MCC-1600 Media Converter Chassis, C/E-100BTX-FX-05 series Ethernet™ 100BASE-TX to 100BASE-FX media converters connect 100 Mb/s Media Conversion Center copper cable to 100 Mb/s fiber cable. Power Modules...

  • Page 2: C/E-100Btx-Fx-05 In The Network

    C/E-100BTX-FX-05 IN THE NETWORK Use the media converter (or two media converters in pairs) to connect a workstation to a remote hub or to connect two hubs, switches, or workstations. TRANSITION Networks C/E-100BTX-FX-05 100BASE-TX to 100BASE-FX media converters connect 100BASE-TX Ethernet copper cable to 100BASE-FX Ethernet ™...
  • Page 3 INSTALLATION (continued) Set Four-Position Switch Switches are located at side of Media Converter Slide-in-Module circuit board. FOUR-POSITION SWITCH SETTINGS 1 (UP) Advertises 100 Mb/s FULL-DUPLEX ONLY during autonegotiation. (DOWN) (Used primarily when connecting Fiber Port UP=ON to hub.) Operates at 100 Mb/s in duplex mode of attached device.

  • Page 4: Operation

    OPERATION After installation, the media converter should function without operator intervention. Status LEDs Use the status LEDs to monitor media converter operation in the network. Power Fiber Power Illuminated green LED indicates connection to external AC power. Signal Detect/Fiber: Steady green LED indicates fiber port is connected to device.

  • Page 5: Cable Specifications

    FAULT ISOLATION and CORRECTION If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the Power LED on the media converter illuminated? • Is the media converter inserted properly into the chassis? •...

  • Page 6: Copper Cable

    0-10,000 feet Lifetime DECLARATION OF CONFORMITY Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: C/E-100BTX-FX-05 Series Media Converters Part Number(s): C/E-100BTX-FX-05, C/E-100BTX-FX-05(SC), C/E-100BTX-FX-05(MT), C/E-100BTX-FX-05(SM), C/E-100BTX-FX-05(SMLC), C/E-100BTX-FX-05(LH), C/E-100BTX-FX-05(XL), C/E-100BTX-FX-05(LW) Regulation: EMC Directive 89/336/EEC Purpose : To declare that the C/E-100BTX-FX-05 to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    COMPLIANCE INFORMATION CISPR/EN55022 Class A FCC Regulations This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This manual is also suitable for:

C/e-100btx-fx-05(lw)C/e-100btx-fx-05(sc)C/e-100btx-fx-05(mt)C/e-100btx-fx-05(sm)C/e-100btx-fx-05(smlc)C/e-100btx-fx-05(xl) ... Show all
