Crs2f31xx-100 series slide-in-module media converter rs-232 to fiber
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Enlarged version
Part Number
Port One - Copper
CRS2F3111-100
RS-232
15 m (50 ft)*
CRS2F3113-100
RS-232
15 m (50 ft)*
CRS2F3114-100
RS-232
15 m (50 ft)*
CRS2F3115-100
RS-232
15 m (50 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
The stand alone version of the media converter is SRS2F31xx-100. For more
information,
see
the
SRS2F31xx-100
www.transition.com.

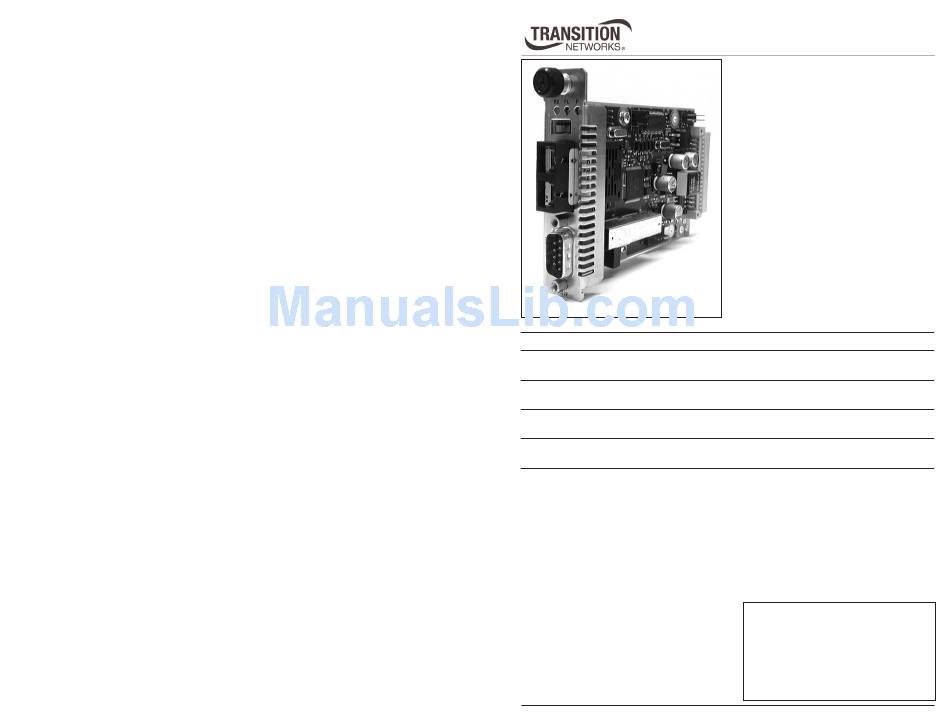

User's Guide
CRS2F31xx-100

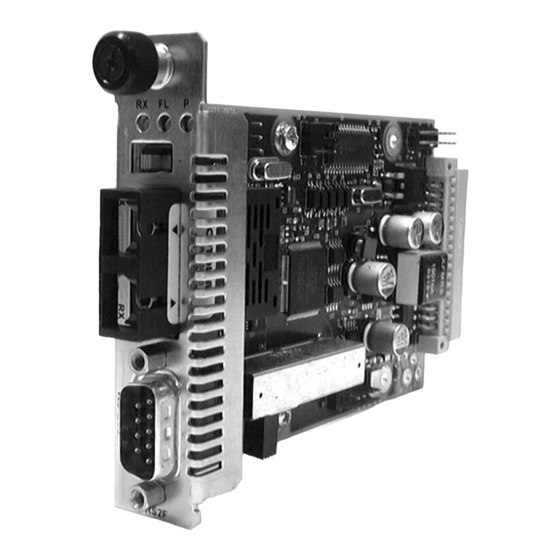

Slide-in-Module Media Converter
RS-232 to Fiber
Transition Networks CRS2F31xx-100
series media converters are designed to
be installed in the PointSystem™ chassis
and connect copper RS-232 cable to
fiber-optic cable at asynchronous data
rates up to 115 kB/s.
The CRS2F31xx-100 is designed to be
installed in pairs where one is the local
media converter and the other is the
remote.
Port Two - Duplex Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
user's
guide
on-line
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12
at:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRS2F3111-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks CRS2F3111-100

Summary of Contents for Transition Networks CRS2F3111-100

  • Page 1 Part Number Port One - Copper Port Two - Duplex Fiber-Optic CRS2F3111-100 RS-232 ST, 1300 nm multimode 15 m (50 ft)* 2 km (1.2 miles)* CRS2F3113-100...

  • Page 2: Installation

    CRS2F31xx-100 Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the switches and jumper. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the DTE/DCE Switch The DTE/DCE switch is located on the side of the media converter. How the DTE/DCE switch is set depends on the type of device connected to the media converter: •...
  • Page 3 CRS2F31xx-100 Installation -- Continued CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the hardware/software jumper and installing the media converter. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the Hardware/Software Jumper •...

  • Page 4: Operation

    The CRS2F31xx-100 can remotely manage the SRS2F31xx-100 (the stand- alone version of the media converter) or another CRS2F31xx-100. For example, a local CRS2F3111-100 converter (that is installed in a managed Transition Networks PointSystem™ chassis) is connected, via fiber, to a remote SRS2F3111-100 converter.

  • Page 5: Technical Specifications

    CRS2F31xx-100 Technical Specifications For use with Transition Networks Model CRS2F31xx-100 or equivalent Data Rate 115 kB/s (asynchronous) Dimensions 3.4" x 5.0" x 0.86" (86 mm x 127 mm x 22 mm) Weight 3 oz. (91 g) (approximately) Power Consumption 5 Watts MTBF 2,613,860 hours (MIL217F2 V5.0) (MIL-HDBD-217F) 6,569,957 hours (Bellcore7 V5.0)
  • Page 6 -- Click the “Transition Now” link for a live Web chat. 1-800-260-1312 00-1-952-941-7600 952-941-7600 800-526-9267 952-941-2322 Declaration of Conformity Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. CRS2F31xx-100 Series Media Converter CRS2F3111-100, CRS2F3113-100, CRS2F3114-100, CRS2F3115-100 EMC Directive 89/336/EEC September 2007_____ Date...

  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
