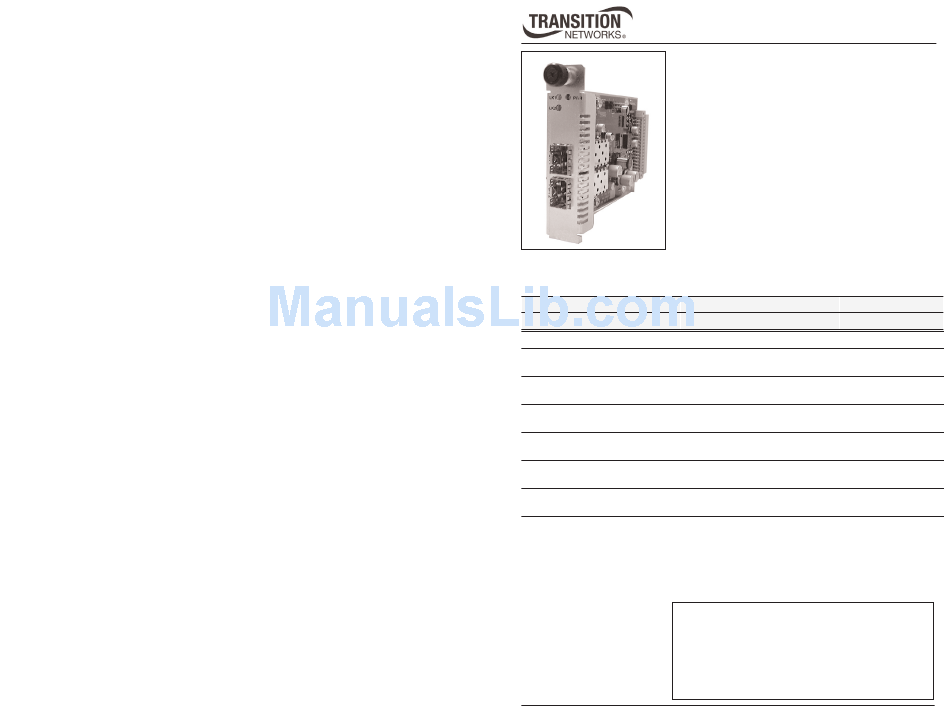

User's Guide
CFMFF4040-100
Optical Line Converter for
Small Form Factor Pluggable (SFP)
Transceiver Modules
The Transition Networks CFMFF4040-100 optical
line converter is designed to accommodate two (2)
small form factor pluggable (SFP) transceiver
modules; and install into the Transition Networks
PointSystem™ chassis.
The following SFP transceiver modules are compatible with the CFMFF4040-100
converter and are available from Transition Networks (sold separately).
Port 1
CFMFF4040-100
empty
Part Number
Description
TN-SFP-SX
LC, 1000Base-SX, 850 nm multimode, 220-500 mm (720-1640 ft)*
TN-SFP-LX1
LC, 1000Base-LX, 1310 nm single mode, 10 km (6.2 miles)*
with DMI
TN-SFP-LX3
LC, 1000Base-LX, 1310 nm single mode, 30 km (18.8 miles)*
with DMI
TN-SFP-LX5
LC, 1000Base-LX, 1550 nm single mode, 50 km (31.2 miles)*
with DMI
TN-SFP-LX8
LC, 1000Base-LX, 1550 nm single mode, 80 km (50.0 miles)*
with DMI
TN-SFP-LX12
LC, 1000Base-LX, 1550 nm single mode, 120 km (74.56 miles)*
with DMI
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Diagnostic Monitor Interface (DMI) . . . . . . . . . .7
Technical Specifications . . . . . . . . . . . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .9
Contact Us . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Compliance Information . . . . . . . . . . . . . . . . .11
Port 2
empty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFMFF4040-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CFMFF4040-100

Summary of Contents for Transition Networks CFMFF4040-100

  • Page 1 (2) small form factor pluggable (SFP) transceiver modules; and install into the Transition Networks PointSystem™ chassis. The following SFP transceiver modules are compatible with the CFMFF4040-100 converter and are available from Transition Networks (sold separately). Port 1 CFMFF4040-100...

  • Page 2: Installation

    CFMFF4040-100 Optical line converter -- continued The following SFP transceiver modules are compatible with the CFMFF4040-100 converter and are available from Transition Networks (sold separately). Part number Duplex Fiber Optic TN-SFP-OC3M LC, 100Base-FX/OC-3 SFP 1300 nm multimode 2km (1.2 miles)*...

  • Page 3: Operation

    CFMFF4040-100 Installation -- continued Power the Media Converter The CFMFF4040-100 optical line converter is powered through the Transition Networks PointSystem™ chassis. Install SFP Transceiver Modules To install SFP transceiver modules into the CFMFF4040-100 converter: Position the SFP transceiver module at the installation slot so that the label faces to the right.
  • Page 4 CFMFF4040-100 Operation -- continued SNMP Use SNMP at an attached terminal or at a remote location to supervise the media converter by monitoring: • Media converter power* • Presence of SFP modules • Fiber link status • SFP vendor and model* •...

  • Page 5: Technical Specifications

    The information in this user’s guide is subject to change. For the most up-to-date information on the CFMFF4040-100 optical line converter, view the user’s guide on-line at: www.transition.com. The stand-alone version of this media converter is SFMFF4040-100. For more information, see the SFMFF4040-100 user’s guide on-line at:...

  • Page 6: Compliance Information

    Part Number: CFMFF4040-100 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CFMFF4040-100 to which this declaration refers is in conformity with the following standards. EN 55022:1998 Class A; EN 55024:1998+A1+A13564:2002; FCC Part 15 subpart B; 21CFR subpart J I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
  • Page 7 Trademark notice All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions © 2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means—graphic, electronic, or mechanical—without written permission from Transition Networks.
