RS-485/422 Serial-Port Fiber Extension
Media Converters
C/RS485-CF-01, C/RS485-CF-02
USER'S GUIDE
Designed to be installed in the TRANSITION Networks E-MCC-1600 Media
Converter Chassis, the C/RS485-CF-0x series serial-port fiber extension Media
Converters extend distances between RS-485 or RS-482 nodes for up to two (2)
kilometers over multimode fiber or up to twenty (20) kilometers over singlemode
fiber.
C/RS485-CF-0x series Media Converters allow RS-485 two-wire half-duplex
operation, RS-485 four-wire full-duplex operation, and RS-422 four-wire
operation, with switch-selectable termination and biasing resistors, at speeds from
1 Kb/s to 500 Kb/s.
C/RS485-CF-01
Provides one (1) terminal block RS-
485/RS-422 copper connector and
one (1) set of RX (receive) and TX
(transmit) ST 100BASE-FX connectors
to multimode fiber @ 850 nM.
C/RS485-CF-01(SM)
Provides one (1) terminal block RS-
485/RS-422 copper connector and
one (1) set of RX (receive) and TX
(transmit) ST 100BASE-FX connectors
to singlemode fiber @ 1300 nM.
C/RS485-CF-01(SC)
Provides one (1) terminal block RS-
485/RS-422 copper connector and
one (1) set of RX (receive) and TX
(transmit) SC 100BASE-FX connectors
to multimode fiber @ 850 nM.
C/RS485-CF-02
Provides one (1) DB-9 RS-485/RS-422
copper connector and one (1) set of
RX (receive) and TX (transmit) ST
100BASE-FX connectors to multimode
fiber @ 850 nM.
C/RS485-CF-02(SM)
Provides one (1) DB-9 RS-485/RS-422
copper connector and one (1) set of
RX (receive) and TX (transmit) ST
100BASE-FX connectors to singlemode
fiber @ 1300 nM.
C/RS485-CF-02(SC)
Provides one (1) DB-9 RS-485/RS-422
copper connector and one (1) set of
RX (receive) and TX (transmit) SC
100BASE-FX connectors to multimode
fiber @ 850 nM.
C/RS485-CF-0x in the Network . . . .2
Installation . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .5
Fault Isolation and Correction . . . . .5
Cable Specifications . . . . . . . . . . . . .6
Technical Specifications . . . . . . . . . .7
Compliance Information . . . . . . . . . .8

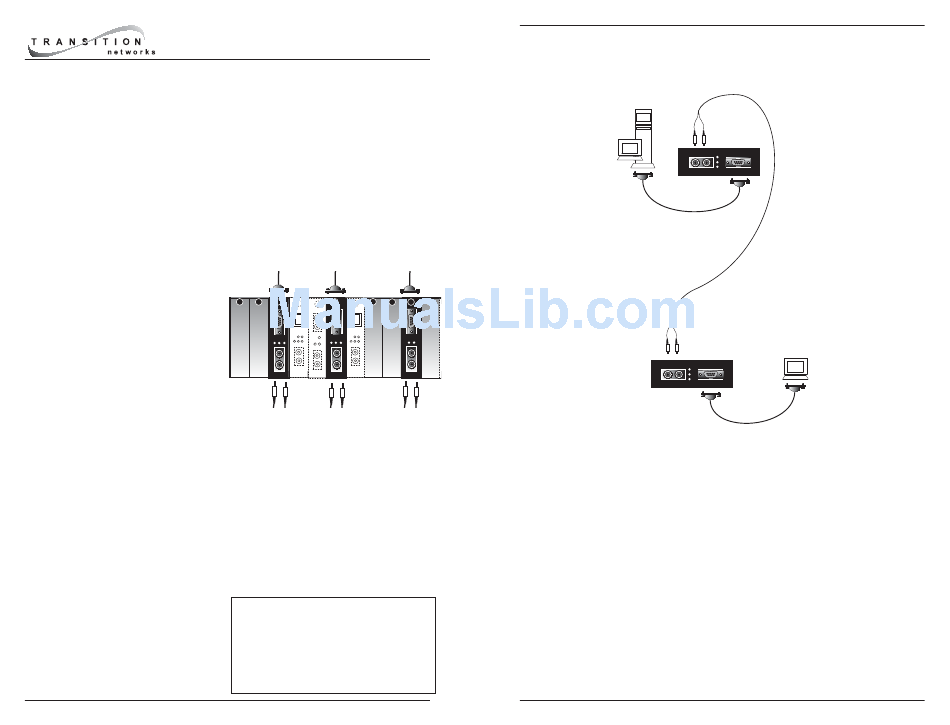

C/RS485-CF-0X in the NETWORK
The C/RS485-CF-0x can be used to install a fiber network extension between
RS-485 or RS-422 network nodes.
RS-485/422 CABLE
One slide switch on the C/RS485-CF-0x series Media Converter allows site
selection of RS-485 2-wire (half-duplex) operation, RS-485 4-wire (full-
duplex) operation, or RS-422 4-wire (full-duplex) operation (see page 3).
A second slide switch on the C/RS485-CF-0x series Media Converter allows
echo prevention in two-wire mode or transmission only on "transmit/receive -
(B) RS-485 2wire, transmit - RS-422 and transmit/receive + (A) RS-485 2wire,
transmit + RS-422" pair (see page 3).
A 4-position dip switch on the C/RS485-CF-0x series Media Converter allows
site selection of 130 ohm terminator insertion on the "receive – C/RS485 4
wire, RS422 and receive + C/RS485 4 wire, RS422" pair or on the
"transmit/receive - (B) C/RS485 2wire, transmit - RS422 and transmit/receive
+ (A) C/RS485 2wire, transmit + RS422" pair (see page 3.).
The dip switch also allows site selection of 1K ohm pull down on
"transmit/receive - (B) C/RS485 2wire, transmit - RS422" or of 1K ohm pull up
on "transmit/receive + (A) C/RS485 2wire, transmit + RS422" (see page 3).
2
RS-485/422 CABLE
C/RS485-CF-0x
