Installation - Transition Networks CDFTF1111-100 User Manual

CDFTFxxxx-10x
Telco Connectors and Signals -- Continued
The chart below shows the 50 signals that go through each Telco connector on
the CPSMC1850-150 to slots 7-12 (Telco connector #2) OR to slots 13-18 (Telco
connector #1).
Pin # Signal
{
{ 1 Port 1 Transmit -
upper
2 Port 1 Receive -
Chassis Slot
{
#7 or 13 3 Port 2 Transmit -
lower
4 Port 2 Receive -
{
{
5 Port 3 Transmit -
upper
6 Port 3 Receive -
Chassis Slot
{
7 Port 4 Transmit -
#8 or 14
lower
8 Port 4 Receive -
{
{
9 Port 5 Transmit -
upper
10 Port 5 Receive -
Chassis Slot
{
#9 or 15 11 Port 6 Transmit -
lower
12 Port 6 Receive -
{
{
13 Port 7 Transmit -
upper
Chassis Slot 14 Port 7 Receive -
{
15 Port 8 Transmit -
#10 or 16
lower
16 Port 8 Receive -
{
{
17 Port 9 Transmit -
upper
18 Port 9 Receive -
Chassis Slot
{
19 Port 10 Transmit -
#11 or 17
lower
20 Port 10 Receive -
{
{
21 Port 11 Transmit -
upper
22 Port 11 Receive -
Chassis Slot
{
23 Port 12 Transmit -
#12 or 18
lower
24 Port 12 Receive -
25 N.C.

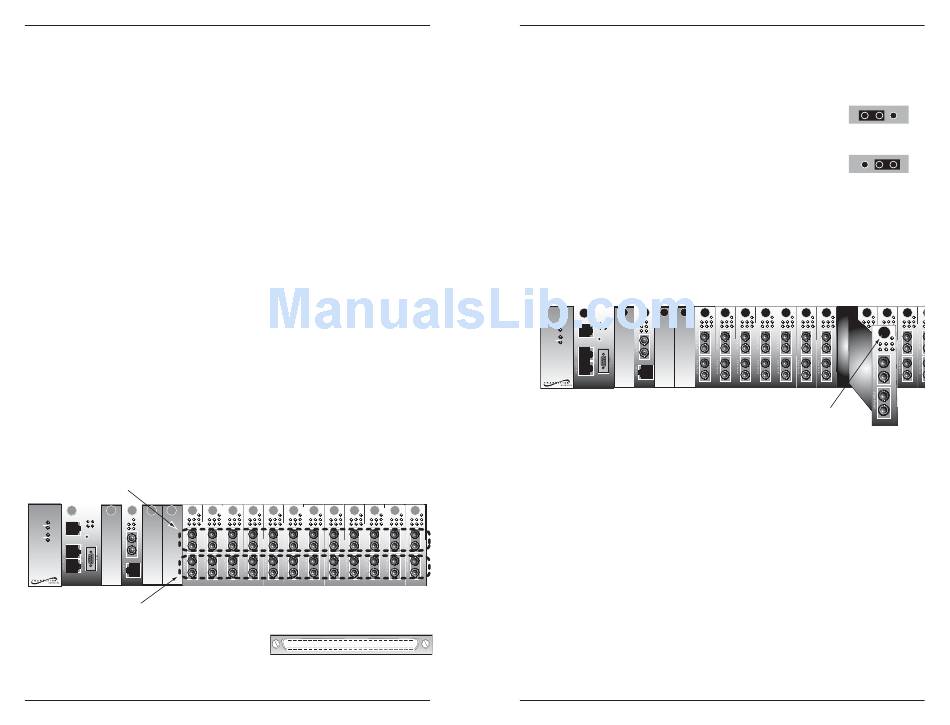

The chart also shows how the signals are distributed to either the UPPER or
LOWER port on the CDFTFxxxx-10x (see figure below).
upper ports
Media
Conversion
Center
TX PWR
PWR
LKF
Power
1
RXF
In Use
RX LNK RXC LKC
Power TX
2
RESET
In Use
RX
MCCM10
MGMT MASTER CETTF100 CDFTF100
lower ports
The figure to the right illustrates the locations
of pins 1-50 on the Telco connector.
4
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Pin # Signal
26 Port 1 Transmit +
27 Port 1 Receive +
28 Port 2 Transmit +
29 Port 2 Receive +
30 Port 3 Transmit +
31 Port 3 Receive +
32 Port 4 Transmit +
33 Port 4 Receive +
34 Port 5 Transmit +
35 Port 5 Receive +
36 Port 6 Transmit +
37 Port 6 Receive +
38 Port 7 Transmit +
39 Port 7 Receive +
40 Port 8 Transmit +
41 Port 8 Receive +
42 Port 9 Transmit +
43 Port 9 Receive +
44 Port 10 Transmit +
45 Port 10 Receive +
46 Port 11 Transmit +
47 Port 11 Receive +
48 Port 12 Transmit +
49 Port 12 Receive +
50 N.C.
CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100
25
50

Installation

Set the Hardware/Software Jumper
• The jumper is located on the circuit board and is labeled "H" and "S".
• Use small needle-nose pliers to set the jumper.
Hardware The media converter settings such as
Software
Install the Slide-in-Module
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing the CDFTFxxxx-10x. Failure to observe this
caution could result in damage to, and subsequent failure of, the media
converter.
Media
Conversion
Center
Power
1
In Use
Power
2
In Use
To install the CDFTFxxxx-10x into the CPSMC1850-150 PointSystem™
chassis:
1. Locate an empty installation slot on the PointSystem™ chassis.
2. Carefully slide the slide-in-module into the installation slot, aligning the
module's circuit board with the installation guides.
3. Ensure that the module is firmly seated inside the chassis.
4. Push in and rotate the the attached panel fastener screw clockwise to
secure the module to the chassis front.
CAUTION: Slots in the PointSystem™ chassis without a slide-in-module
CDFTF100 CDFTF100
installed MUST have a protective plate covering the empty slot for Class A
compliance.
1
26
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
AutoCross and Link Pass-Through cannot be
changed.
The media converter settings are determined
by the most-recently saved, on-board
microprocessor settings.
TX PWR PWR
LKF
RXF
RX LNK
RXC LKC
TX
RESET
RX
MCCM10
MGMT MASTER CETTF100 CDFTF100 CDFTF100 CDFTF100
H S
Hardware Mode
H S
Software Mode
CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CD
panel fastener screw
CDFTF100
