Transition Networks CDFTF 10 Series User Manual

TELCO 100BASE-TX to 100BASE-FX
Slide-In-Module Media Converters
CDFTFxxxx-10x
USER'S GUIDE
The TRANSITION Networks CDFTFxxxx-10x series dual-port media converters are
intended to be installed in a CPSMC1850 PointSystem
high density TELCO environment. The media converters connect twisted-pair
copper TELCO signals (received at the back of the CPSMC1850 chassis) to fiber-
optic cable ports on each CDFTFxxxx-10x series media converter (installed at the
front of the CPSMC1850 chassis).
CDFTF1111-100
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic ST connectors to
multimode 1300 nm fiber cable.
CDFTF1313-100
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic SC connectors to
multimode 1300 nm fiber cable.
CDFTF1414-100
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic SC connectors to
singlemode 1300 nm (LX) fiber cable.
CDFTF1515-100
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic SC connectors to long-
haul singlemode 1300 nm fiber cable.
CDFTF1616-100
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic MT-RJ connectors to
singlemode 1300 nm (LX) fiber cable.
CDFTF1717-100
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) long-wavelength fiber-optic
connectors to singlemode 1300 nm (LX)
fiber cable.
™ Conversion Center in a
CDFTF2929-100
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic SC connectors to
singlemode 1310 nm TX (transmit) /
1550 nm RX (receive) fiber cable.
CDFTF2929-101
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic SC connectors to
singlemode 1550 nm TX (transmit) /
1310 nm RX (receive) fiber cable.
CDFTF2929-102
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic SC connectors to
singlemode 1310 nm TX (transmit) /
1550 nm RX (receive) fiber cable.
CDFTF2929-103
Provides a connection between two (2)
internal chassis TELCO signals and two
(2) fiber-optic SC connectors to
singlemode 1550 nm TX (transmit) /
1310 nm RX (receive) fiber cable.
CDFTFxxxx-10x in the Network .2
Installation . . . . . . . . . . . . . . . . .5
Operation . . . . . . . . . . . . . . . . . .7
Fault Isolation and Correction . . .8
Cable Specifications . . . . . . . . . .9
Technical Specifications . . . . . .11
Compliance Information . . . . . .12
Related TN Equipment:
CPSMC 1850
PointSystem ™ chassis that provides
installation slots, power, and optional
network management for TRANSITION
Networks Media Converter Slide-in-
Modules and also provides two (2)
external RJ-21 TELCO connectors at
chassis back.

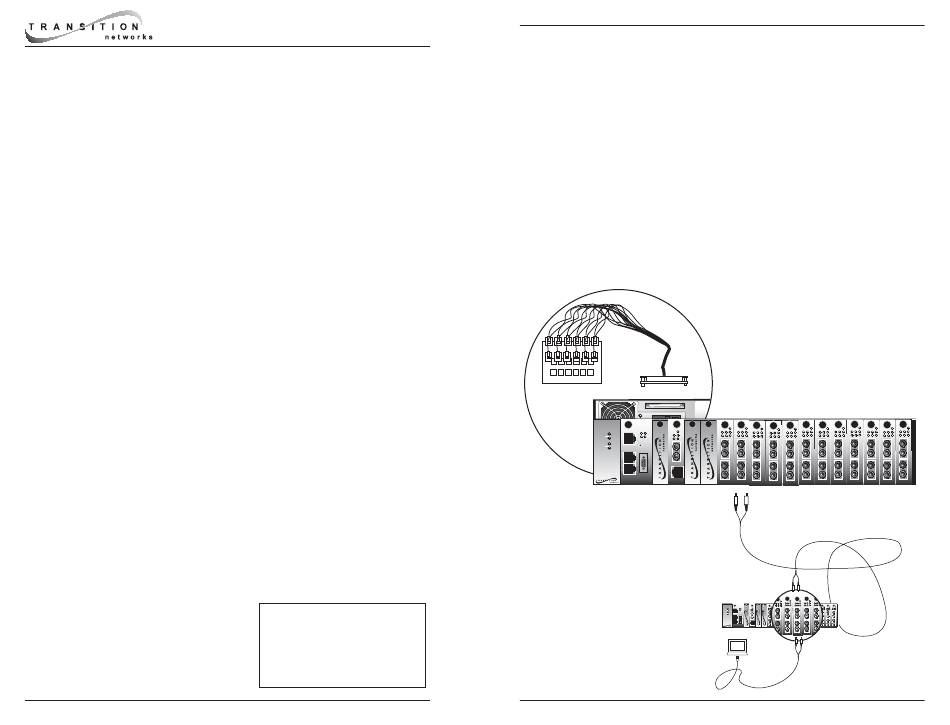

CDFTFxxxx-10x in the NETWORK
The CPSMC1850 PointSystem ™ Conversion Center with TELCO option distributes
up to twenty-four (24) 100BASE-TX TELCO signals to two (2) ports (Converter 1
and Converter 2) on each of up to twelve (12) installed CDFTFxxxx-10x media
converters to extend TELCO network distances over 100BASE-FX fiber-optic cable.
CPSMC1850 Back
Media I
0
Conversion
Center
TX PWR PWR
LKF
Power
1 RXF
In Use
RX LNK RXC LKC
Power TX
2
RESET
In Use
RX
MCCM10
MGMT MASTER
CETTF100
CPSMC1850 Front
2
21HC45-6
TELCO cable with RJ-21 connector at
one end and twelve (12) RJ-45
connectors at other end.
21HC21-6
TELCO cable with RJ-21 connectors at
both ends.
CDFTF100 CDFTF100
CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100
CDFTF100
Fiber Network Extension
Conversion
Center
TX PWR PWR
Power LKF
1 RXF
In Use RX LNK RXC LKC
2 Power RESET TX
In Use
RX
MGMT MASTER MCCM10 CDFTF100 CDFTF100
CETTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100
CDFTF100 CDFTF100 CDFTF100
CDFTFxxxx-10x
