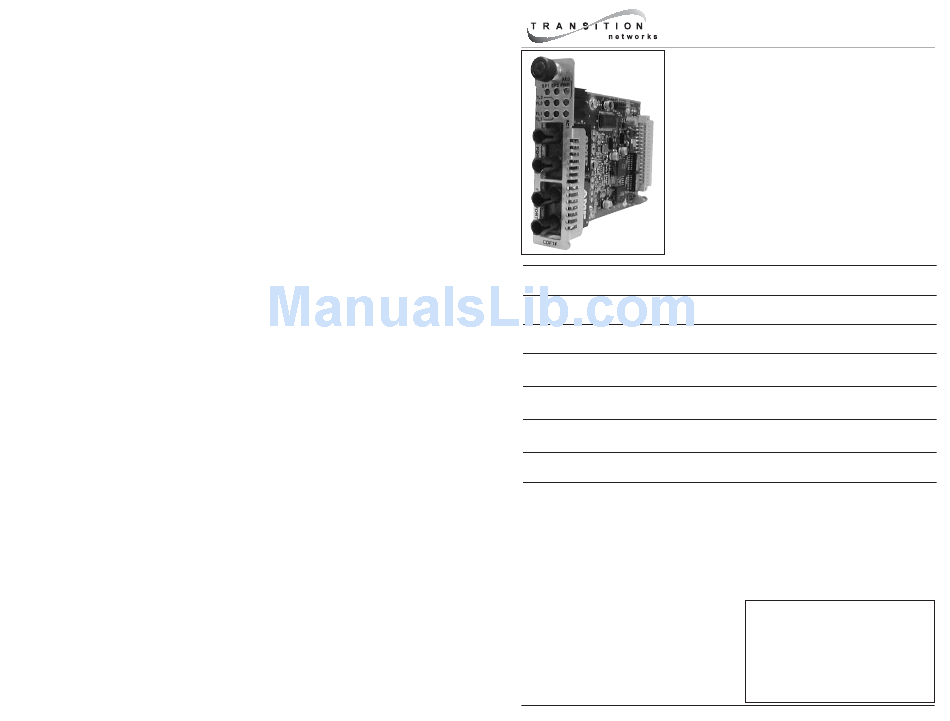

User's Guide
CDFTFxxxx-10x
Slide-in-Module Media Converter
• Telco Network
• Copper to Fiber
• 100Base-TX to 100Base-FX
Transition Networks CDFTFxxxx-10x series dual-
port media converters are designed to be installed in
a CPSMC1850-150 PointSystem™ chassis. The
CDFTFxxxx-10x connects twisted-pair copper Telco
signals (received at the back of the CPSMC1850-150
chassis) to fiber-optic cable ports on each
CDFTFxxxx-10x series media converter (installed at
the front of the CPSMC1850-150 chassis).
Part Number
Copper - Twisted-pair
Telco signals
CDFTF1111-100
Two (2)
internal signals
CDFTF1313-100
Two (2)
internal signals
CDFTF1414-100
Two (2)
internal signals
CDFTF1515-100
Two (2)
internal signals
CDFTF1616-100
Two (2)
internal signals
CDFTF1717-100
Two (2)
internal signals
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
Fiber-Optic - Two (2) external
100Base-FX ports
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.9 miles)*
SC, 1310 nm single mode
60 km (37.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
Installation . . . . . . . . . . . . . . . . . .5
Operation . . . . . . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Cable Specifications . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDFTF1111-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks CDFTF1111-100

  • Page 1 • Copper to Fiber • 100Base-TX to 100Base-FX Transition Networks CDFTFxxxx-10x series dual- port media converters are designed to be installed in a CPSMC1850-150 PointSystem™ chassis. The CDFTFxxxx-10x connects twisted-pair copper Telco signals (received at the back of the CPSMC1850-150...
  • Page 2 CDFTFxxxx-10x Part Number Copper - Twisted-pair Fiber-Optic - Two (2) external Telco signals 100Base-FX ports CDFTF2929-100 Two (2) SC, 1310 mn (TX)/1550 nm (RX) internal signals 20 km (12.4 miles)* CDFTF2929-101 Two (2) SC, 1550 mn (TX)/1310 nm (RX) internal signals 20 km (12.4 miles)* CDFTF2929-100 and CDFTF2929-101 are intended to be installed in the same network where one is the local converter and the other is the remote converter.
  • Page 3: Installation

    CDFTFxxxx-10x Telco Connectors and Signals -- Continued The chart below shows the 50 signals that go through each Telco connector on the CPSMC1850-150 to slots 7-12 (Telco connector #2) OR to slots 13-18 (Telco connector #1). Pin # Signal Port 1 Transmit - upper Port 1 Receive - Chassis Slot...
  • Page 4: Operation

    CDFTFxxxx-10x Installation -- Continued NOTE: The media converter does not support Auto-Negotiation. Set the external devices to forced 100 Mb/s full-duplex. Connect the Telco Copper Cable CAUTION: The twisted-pair copper Telco cables must be less than 60 m (196 ft.). Failure to observe this caution could cause data transfer to fail. Locate the 100Base-TX cable with the male 50-pin Telco connector at one end and with twelve (12) RJ-45 connectors at other end (P/N 21HC45-6).
  • Page 5: Technical Specifications

    <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm CDFTF1111-100 1300 nm multimode CDFTF1313-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB...
  • Page 6: Troubleshooting

    Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: CDFTFxxxx-10x Series Media Converters Part Number(s): CDFTF1111-100, CDFTF1313-100, CDFTF1414-100, CDFTF1515-100, CDFTF1616-100, CDFTF1717-100, CDFTF2929-100, CDFTF2929-101, CDFTF2929-102, CDFTF2929-103 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CDFTFxxxx-10x to which this declaration refers is in conformity with the following standards.
  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A + EN55204 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
