The RS-232 and T1/E1 interfaces are independent of each other and the signals
from these ports can be sent over the fiber interface simultaneously.
The S4TEF10xx-10x is designed to be installed in pairs. For example, install one
S4TEF1011-100 as the local media converter and another S4TEF1011-100 as the
remote media converter.
All S4TEF10xx-10x models have the following copper connectors:
Connector Type
Number
RS-232
one (1)
T1/E1
four (4)
The various fiber connectors are available on separate models. Both duplex and
single mode fiber optic converters are available:
Part Number
Duplex Fiber-Optic - 100Base-FX
S4TEF1011-100
ST, 1300 nm multimode, 2 km (1.2 miles)*
S4TEF1013-100
SC, 1300 nm multimode, 2 km (1.2 miles)*
S4TEF1014-100
SC, 1310 nm single mode, 20 km (12.4 miles)*
S4TEF1015-100
SC, 1310 nm single mode, 40 km (24.8 miles)*
S4TEF1016-100
SC, 1310 nm single mode, 60 km (37.2 miles)*
S4TEF1017-100
SC, 1550 nm single mode, 80 km (49.7 miles)*
S4TEF1018-100
MT-RJ, 1300 nm multimode, 2 km (1.2 miles)*
S4TEF1029-10x
(single mode, single fiber models are listed on page 2)
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network.
The chassis version of the media
converter is C4TEF10xx-10x. For more
information, see the user's guide on-line
at: www.transition.com.

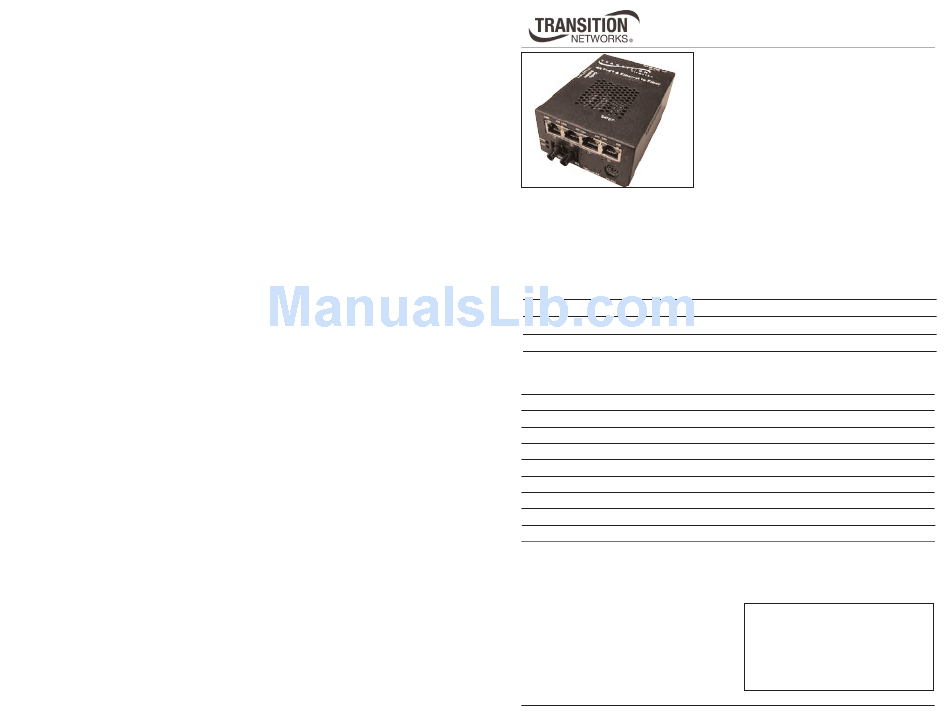

User's Guide
S4TEF10xx-10x
Stand-Alone Media Converter
• RS-232 to Fiber
• (4) T1/E1 to Fiber
The S4TEF10xx-10x media converter can
extend signals from an RS-232 data port and
up to four (4) T1/E1 network ports over fiber.
Description
6-pin, DIN serial, 3.2 m (10 ft.)*
RJ-48
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . .10
Cable Specifications . . . . . . . . . .12
Technical Specifications . . . . . . .14
Troubleshooting . . . . . . . . . . . . .15
Compliance Information . . . . . . .19
Advertisement
Table of Contents
Related Manuals for Transition Networks C4TEF10XX-10X
Summary of Contents for Transition Networks C4TEF10XX-10X
- Page 1 Installation ....2 converter is C4TEF10xx-10x. For more Operation ....10 information, see the user’s guide on-line...
-
Page 2: Installation
S4TEF10xx-10x Part Number Fiber-Optic - single fiber, single mode, 100Base-FX S4TEF1029-100 SC, 1310 mn (TX)/1550 nm (RX), 20 km (12.4 miles)* S4TEF1029-101 SC, 1550 mn (TX)/1310 nm (RX), 20 km (12.4 miles)* S4TEF1029-100 and S4TEF1029-101 are intended to be installed in the same link where one is the local converter and the other is the remote converter. - Page 3 S4TEF10xx-10x Installation -- Continued Switch Set #1 - T1/E1 Options 5, 6, 7, 8 - Loop-Back Settings The loop-back setting is used for installation and network debugging procedures. Each of the T1/E1 ports can be individually set for loop-back mode: •...
-
Page 4: Power The Media Converter
Verify that the media converter is powered by observing the illuminated LED power indicator light. NOTE: For DC power, consult the user’s guide for the Transition Networks SPS1872-xx DC external power supply. techsupport@transition.com -- Click the “Transition Now” link for a live Web chat. -
Page 5: Install The Fiber Cable
S4TEF10xx-10x Installation -- Continued Install the T1/E1 Cable Locate or build ITU-compliant copper cable with straight-through RJ-48 connectors installed at both ends. (See page 13 for the proper cable specifications for your network application.) Connect the RJ-48 connector at one end of the cable to one of the T1/E1 ports on the S4TEF10xx-10x media converter. -
Page 6: Operation
-- Continued The S4TEF10xx-10x, can be remotely managed when connected via fiber cable to a local C4TEF10xx-10x slide-in-module media converter that is installed in a managed Transition Networks PointSystem™ chassis. The SNMP section (below) lists the commands that can be used to monitor and manage a networked S4TEF10xx-10x media converter at a remote location. -
Page 7: Cable Specifications
S4TEF10xx-10x Cable Specifications The physical characteristics must meet or exceed ITU specifications. Fiber Cable Bit Error Rate: <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm S4TEF1011-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity:... -
Page 8: Technical Specifications
S4TEF10xx-10x Technical Specifications For use with Transition Networks Model S4TEF10xx-10x or equivalent. Standards G.703, AMI/B8Zs/HDB3 Data Rate Fiber: 100 Mb/s Dimensions 3.7" x 4.7" x 1.8" (93 mm x 120 mm x 47 mm) Weight 1 lb. (0.45 kg) (approximate) Power Consumption 6.0 watts... - Page 9 S4TEF10xx-10x Troubleshooting -- Continued 5. Is data transfer failing on one of the T1/E1 ports? • Verify the local T1/E1 connection at the local converter by starting a local loop-back at the local converter: - HW mode: set the local converter to T1/E1 loop-back (see page 4). - SW mode: enter the local T1/E1 loop-back command at the local converter.
-
Page 10: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. - Page 11 All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
