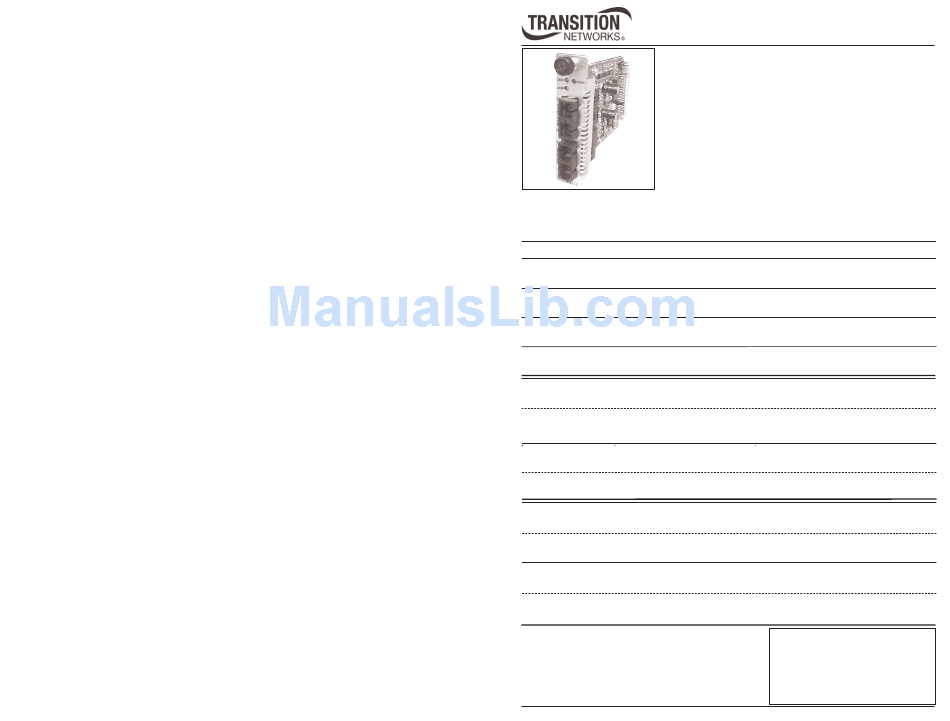

CFMFFxxxx-2xx User's Guide
•
Slide-in-Module Media Converter
•
Fast Ethernet, ATM, SONET, or Gigabit
Transition Networks CFMFFxxxx-2xx series media
converters extend multimode and singlemode
interfaces to singlemode fiber optic cable over Fast
Ethernet, ATM, SONET, and Gigabit networks. The
CFMFFxxxx-2xx is also designed to install into the
Transition Networks PointSystem™ chassis.
622 Mb/s cable speed:
The models with the -21x extension are for cable speeds of 622 Mb/s and extend
ATM or SONET over singlemode fiber up to 60 km.
Part Number
Port One - Fiber-Optic
CFMFF1314-210 SC, 1300 nm multimode
2 km (1.2 miles)
CFMFF1316-210 SC, 1300 nm multimode
2 km (1.2 miles)
CFMFF1317-210 SC, 1300 nm multimode
2 km (1.2 miles)
CFMFF1717-210 SC, 1550 nm singlemode
60 km (37.2 miles)
CFMFF1329-210 SC, 1300 nm multimode
duplex, 2 km (1.2 miles)
CFMFF1329-211 SC, 1300 nm multimode
duplex, 2 km (1.2 miles)
CFMFF1329-212 SC, 1300 nm multimode
duplex, 2 km (1.2 miles)
CFMFF1329-213 SC, 1300 nm multimode
duplex, 2 km (1.2 miles)
CFMFF1429-210 SC, 1310 nm singlemode
duplex, 15 km (9.3 miles)
CFMFF1429-211 SC, 1310 nm singlemode
duplex, 15 km (9.3 miles)
CFMFF1429-212 SC, 1310 nm singlemode
duplex, 15 km (9.3 miles)
CFMFF1429-213 SC, 1310 nm singlemode
duplex, 15 km (9.3 miles)
Port Two - Fiber-Optic
SC, 1310 nm singlemode
15 km (9.3 miles)
SC, 1310 nm singlemode
40 km (24.8 miles)
SC, 1550 nm singlemode
60 km (37.2 miles)
SC, 1550 nm singlemode
60 km (37.2 miles)
SC, 1310 nm (TX)/1550 nm (RX)
SM single fiber, 20 km (12.4 mi)
SC, 1550 nm (TX)/1310 nm (RX)
SM single fiber, 20 km (12.4 mi)
SC, 1310 nm (TX)/1550 nm (RX)
SM single fiber, 40 km (24.8 mi)
SC, 1550 nm (TX)/1310 nm (RX)
SM single fiber, 40 km (24.8 mi)
SC, 1310 nm (TX)/1550 nm (RX)
SM single fiber, 20 km (12.4 mi)
SC, 1550 nm (TX)/1310 nm (RX)
SM single fiber, 20 km (12.4 mi)
SC, 1310 nm (TX)/1550 nm (RX)
SM single fiber, 40 km (24.8 mi)
SC, 1550 nm (TX)/1310 nm (RX)
SM single fiber, 40 km (24.8 mi)
Installation . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .14
Compliance Information . . . . . . .16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CFMFF1314-210
Summary of Contents for Transition Networks CFMFF1314-210
- Page 1 ATM or SONET over singlemode fiber up to 60 km. Part Number Port One - Fiber-Optic Port Two - Fiber-Optic CFMFF1314-210 SC, 1300 nm multimode SC, 1310 nm singlemode 2 km (1.2 miles) 15 km (9.3 miles) CFMFF1316-210 SC, 1300 nm multimode SC, 1310 nm singlemode 2 km (1.2 miles)
- Page 2 CFMFFxxxx-2xx 155 Mb/s cable speed: The models with the -20x extension are for cable speeds of 155 Mb/s and extend ATM or Fast Ethernet over singlemode fiber up to 80 km. Part Number Port One - Fiber-Optic Port Two - Fiber-Optic CFMFF1313-200 SC, 1300 nm multimode SC, 1300 nm multimode 2 km (1.2 miles)
-
Page 3: Installation
CFMFFxxxx-2xx Installation Install these Models in Pairs The following media converter pairs are to be installed in the same network, where one serves as the local converter and the other a remote converter (either converter can be installed in either location). 155 Mb/s network: •... -
Page 4: Operation
CFMFFxxxx-2xx Operation Status LEDs Use the three status LEDs on the media converter (shown here) to monitor its operation in the network. PWR ON = Connection to external power. ON = Singlemode fiber link is up. ON = Multimode fiber link is up. Link Pass-Through The Link Pass-Through feature allows the media converter to monitor RX (receive) ports for loss of signal. - Page 5 Bit Error Rate: Port 1: max: -8.0 dBm Fiber-optic Transmitter Power: max: -8.0 dBm Fiber-optic Receiver Sensitivity: Link Budget Port 2: CFMFF1314-210 max: -8.0 dBm Fiber-optic Transmitter Power: max: -8.0 dBm Fiber-optic Receiver Sensitivity: Link Budget: CFMFF1316-210 max: -2.0 dBm Fiber-optic Transmitter Power: max: -7.0 dBm...
- Page 6 CFMFFxxxx-2xx Cable Specifications – Continued 622 Mb/s fiber specifications (CFMFF14xx-21x) Bit Error Rate: <10-9 Port 1: 1310 nm singlemode Fiber-optic Transmitter Power: min: -15.0 dBm Fiber-optic Receiver Sensitivity: min: -28.0 dBm Link Budget: 13.0 dB Port 2: CFMFF1429-210 1310 nm (TX) / 1550 nm (RX) singlemode Fiber-optic Transmitter Power: min: -14.0 dBm Fiber-optic Receiver Sensitivity:...
-
Page 7: Technical Specifications
Transition Networks PointSystem™ chassis in which this slide-in-module will be installed. Note: The CFMFFxxxx-2xx media converters are for use in Transition Networks’ max: -3.0 dBm max: -3.0 dBm Note: For the most up-to-date information on the CFMFFxxxx-2xx media max: -3.0 dBm... -
Page 8: Troubleshooting
Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: CFMFFxxxx-2xx Series Media Converters Part Number(s): CFMFF1313-200, CFMFF1314-200, CFMFF1314-210, CFMFF1313-220, CFMFF1314-220, CFMFF1315-200, CFMFF1315-220, CFMFF1316-200, CFMFF1316-210, CFMFF1317-200, CFMFF1317-210, CFMFF1317-220, CFMFF1717-210, CFMFF1329-200, CFMFF1329-201, CFMFF1329-202, CFMFF1329-203,CFMFF1329-210, CFMFF1329-211, CFMFF1329-212, CFMFF1329-213,CFMFF1329-220, CFMFF1329-221, CFMFF1329-222,... -
Page 9: Compliance Information
Compliance Information UL Listed Accessory C-UL Listed (Canada) CISPR22/EN55022 Class A & B + EN55024 CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
