CDFTFxxxx-10x
Part Number Copper - Twisted-pair
Telco signals
CDFTF2929-100 Two (2)
internal signals
CDFTF2929-101 Two (2)
internal signals
CDFTF2929-100 and CDFTF2929-101 are intended to be installed in the same
network where one is the local converter and the other is the remote converter.
CDFTF2929-102 Two (2)
internal signals
CDFTF2929-103 Two (2)
internal signals
CDFTF2929-102 and CDFTF2929-103 are intended to be installed in the same
network where one is the local converter and the other is the remote converter.
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network. (TX) = transmit, (RX) = receive
Related Transition Networks Equipment (sold separately)
Part Number Description
CPSMC1850-150 18-slot PointSystem™ chassis with two (2) external RJ-21
Telco connectors. **
21HC45-6 Telco cable with RJ-21 connector at one end and twelve (12)
RJ-45 connectors at the other end.
21HC21-6 Telco cable with RJ-21 connectors at both ends.
**For more information on the CPSMC1850-150 chassis, see the user's guide on-
line at www.transition.com

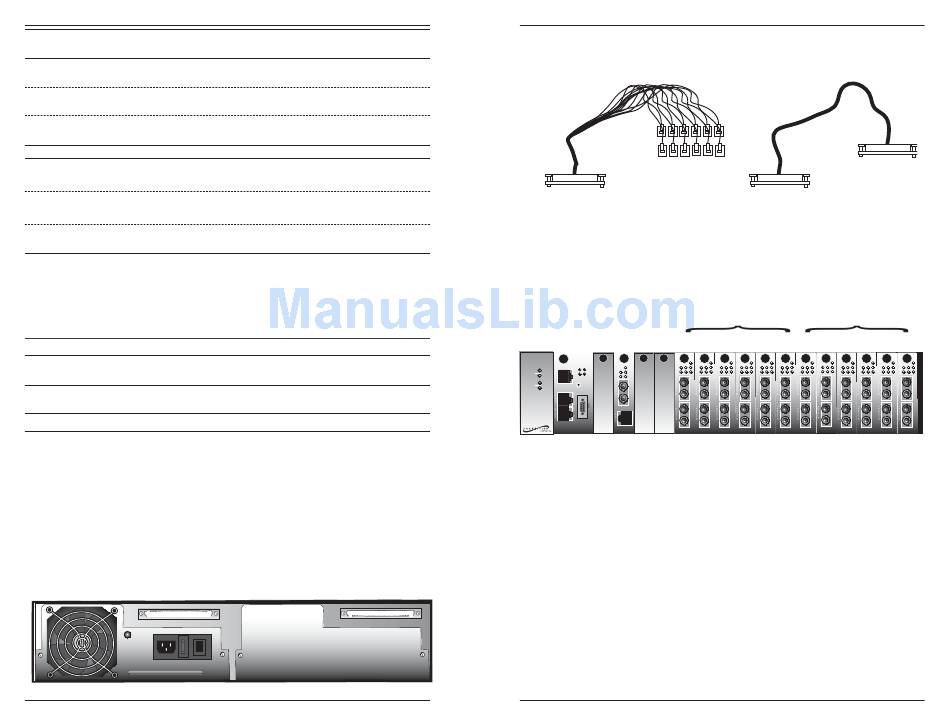

CPSMC1850-150 Chassis
The CPSMC1850-150 PointSystem™ chassis provides two (2) 50-pin Telco
connectors installed at the chassis back. The two Telco 50-pin connectors
concentrate a total of 24 UTP connections, which are distributed to twelve
(12) installation slots in the front of the CPSMC1850-150 chassis.
RJ-21 Telco connector #1
I
0
2
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Fiber-Optic - Two (2) external
100Base-FX ports
SC, 1310 mn (TX)/1550 nm (RX)
20 km (12.4 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
20 km (12.4 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
40 km (24.8 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
40 km (24.8 miles)*
RJ-21 Telco connector #2
Telco Cables and Signals
The two kinds of Telco cables available from Transition Networks are pictured
below:
21HC45-6:
one (1) RJ-21 connector
and 12 RJ-45 connectors
The signals from the Telco connectors are distributed as follows:
• Signals from Telco connector #2 go to chassis slots 7 - 12.
• Signals from Telco connector #1 go to chassis slots 13 - 18.
Telco connector #2
1 2 3 4 5 6 7
Media
Conversion
Center
TX PWR PWR
LKF
Power
1
RXF
In Use
RX LNK RXC LKC
TX
Power
2
RESET
In Use
RX
MCCM10
MGMT MASTER CETTF100 CDFTF100 CDFTF100
In order to fully utilize the Telco option on the CPSMC1850-150 chassis, the
Transition Networks CDFTFxxxx-10x is required and it must be installed in
slots 7 through 18.
Please note:
• Slots 1-6 on the CPSMC1850-150 are designed for any Transition
Networks media converter slide-in-module.
• Slots 7-18 on the CPSMC1850-150 can accommodate any Transition
Networks media converter slide-in-module. However the Telco option
will not function unless a CDFTFxxxx-10x media converter is installed in
those slots.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
21HC21-6:
two (2) RJ-21 connector
Telco connector #1
8 9 10 11 12 13 14 15 16
CDFTF100
CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100
17 18
CDFTF100
