C4TEF10xx-11x
Installation
-- Continued
Hardware/Software Jumper
The hardware/software jumper is located near the back end on the upper
circuit board.
Use small needle-nose pliers to set the jumper.
Hardware The Device mode is determined by the switch
settings.
Software
The Device mode is determined by the most-
recently saved, on-board microprocessor
settings.

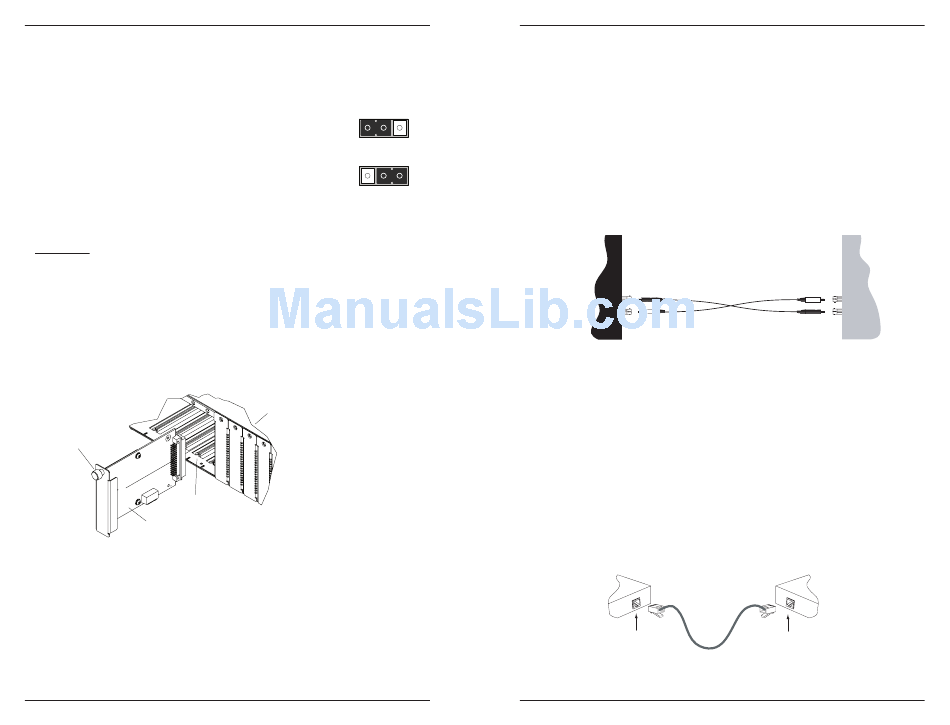

Install the Slide-in-Module

CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing the C4TEF10xx-11x slide-in-module Device. Failure
to observe this caution could result in damage to, and subsequent failure of, the
slide-in-module.
1.
Carefully slide the slide-in-module into two adjacent installation slots,
aligning the module with the installation guides.
2.
Ensure that the module is firmly seated inside the chassis.
3.
Push in and rotate the panel fastener screw clockwise to secure the
module to the chassis front.
Panel Fastener
Slot
Media Converter
Install the T1/E1 Cable
1.
Locate or build ITU compliant copper cable with straight-through RJ-48
connectors installed at both ends. (See Cable Specifications section for
network application.)
2.
Connect the RJ-48 connector at one end of the cable to one of the T1/E1
ports on the C4TEF10xx-11x Device.
3.
Connect the RJ-48 connector at the other end of the cable to the T1/E1
port on the other device.
8
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
H
S
Hardware Mode
H
S
Software Mode
Point System Chassis
Installation
-- Continued

Install the Fiber Cable

1.
Locate or build ITU compliant fiber cable with male, two-stranded TX to
RX connectors installed at both ends.
2.
Connect the fiber cables to the local C4TEF10xx-11x Device as
described:
Connect the male TX cable connector to the female TX port.
Connect the male RX cable connector to the female RX port.
3.
Connect the fiber cables to the remote Device as described:
Connect the male TX cable connector to the female RX port.
Connect the male RX cable connector to the female TX port.
Connect fiber cable
to media converter
as shown.
RX
TX
Install the Ethernet Cable
Ensure that the correct cable type is installed to support the highest speed and
mode of operation to be selected.
1.
Locate or build IEEE 803.2™ compliant 10Base-T or 100Base-TX cables,
with straight-through RJ-45 cable, and with straight-through RJ-45
connectors installed at both ends.
2.
Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the C4TEF10xx-11x Device.
3.
Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (switch, workstation, etc.)
Note: The MDI (straight-through) or MDI-X (crossover) cable connection is
configured automatically, according to the network conditions.
RJ-45 port
on the media
converter
