CBFTF10xx-14x
Installation
-- Continued
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when setting the jumpers and when installing the media converter.
Failure to observe this caution could result in damage to, and subsequent
failure of, the media converter.
Use small, needle-nose pliers or a similar device when setting the jumpers.

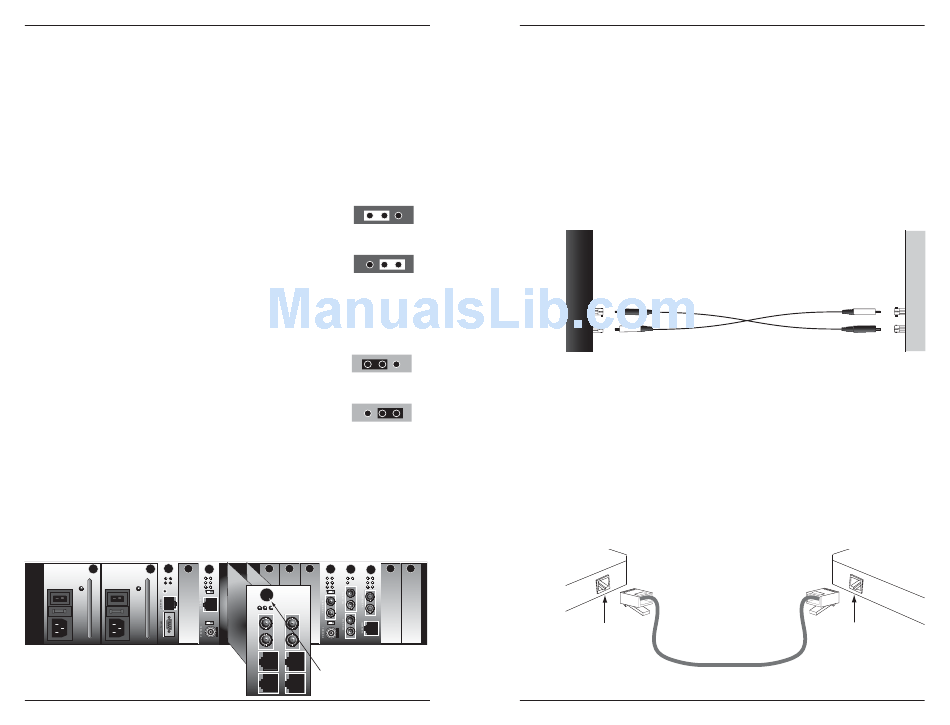

Set the Fiber Duplex Jumper (Fiber Port 2)
The fiber duplex jumper sets the full-duplex/half-duplex mode for fiber port 2
(F2). It is located on the circuit board and is labeled "F" and "H".
Full-Duplex The cable distances for fiber port 2 (F2)
are constrained
requirements (see pages 1 and 2).
Half-Duplex The cable distances for fiber port 2 (F2)
are constrained by the 512-Bit Rule (see
page 9).
Set the Hardware/Software Jumper
The hardware/software jumper is located on the circuit board and is labeled "H"
and "S".
Hardware The media converter settings are determined
by dip switch settings (p. 3-5).
Software The media converter settings are determined
by the most-recently saved, on-board
microprocessor settings.

Install the Slide-in-Module

1. Carefully slide the slide-in-module into two adjacent installation slots,
aligning the module with the installation guides.
2. Ensure that the module is firmly seated inside the chassis.
3. Push in and rotate the attached panel fastener screw clockwise to secure
the module to the to the chassis front.
TX PWR
LA
RXF
RX LNK
RXC
R
Link Alert
E
E
S
E
T
INIT
TERM
0
CPSMM120 CECF100
6
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
F
by the cable
Full-Duplex
F
Half-Duplex
H
Hardware Mode
H
Software Mode
PWR
PWR PWR
LA LKS SPD PWR
LNK LNK
RXF LKM FRX FLNK
COL RXC COL CRX CLNK
TX
Link Alert
D E D
TX
RX
RX
TX
50½ 0 50½
RX
CETCF100 CFMFF100 CFETF100
Panel Fastener Screw
Installation

Connect the Fiber Cable

1. Locate or build IEEE 803.2™ compliant 100Base-FX fiber cable with
male, two-stranded TX to RX connectors installed at both ends.
2. Connect the fiber cables to the CBFTF10xx-14x media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
• Connect the male TX cable connector to the female RX port.
H
• Connect the male RX cable connector to the female TX port.
H
RX
TX
S

Connect the Twisted-Pair Copper Cable

S
The AutoCross feature allows either MDI (straight-through) or MDI-X
(crossover) cable connections to be configured automatically, according to the
network conditions.
1. Locate or build IEEE 803.2™ compliant 10Base-T or 100Base-TX cables,
with male, RJ-45 connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the CBFTF10xx-14x media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (switch, workstation, etc.).
RJ-45 port
on the media
converter
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
-- Continued
Connect the fiber cable
to the media converter
as shown.
Connect the fiber cable
to the other device
(media converter,
hub, etc.) as shown
RX
TX
RJ-45 port
on the other device
(switch, work station, etc.)
7
