C4TEF10xx-11x
Installation -- Continued

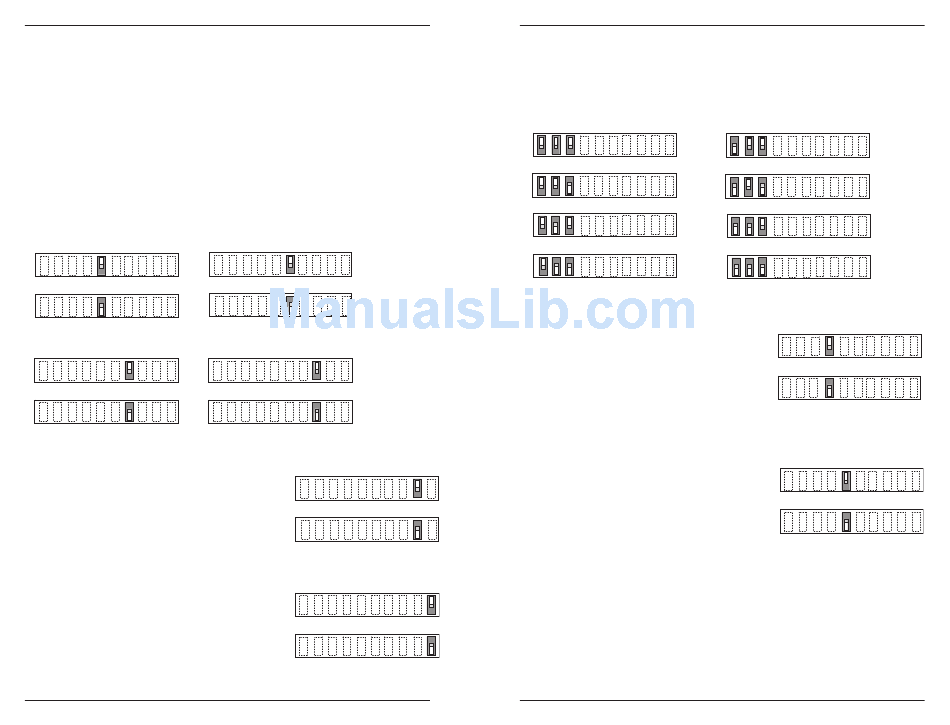

Switch set #1 - T1/E1 options
5, 6, 7, 8 - Loop-Back settings
The loop-back setting is used for installation and network debugging procedures.
Each of the T1/E1 ports can be individually set for loop-back mode:
• Switch 5 controls T1/E1 port 1
• Switch 6 controls T1/E1 port 2
• Switch 7 controls T1/E1 port 3
• Switch 8 controls T1/E1 port 4
When the loop-back switch for a particular T1/E1 port is enabled, the port loops
the signal from the receive port back to the transmit port. The T1/E1 loop-back
test scenarios are described in detail in under Troubleshooting.
5
up
Disable Loop-Back on T1/E1 port 1
down
Enable Loop-Back on T1/E1 port 1
7
up
Disable Loop-Back on T1/E1 port 3
down
Enable Loop-Back on T1/E1 port 3
9 - Transmit AIS
up - Enable the transmit AIS (Alarm Indication
Signal) on loss of the carrier signal. This function is
un-framed and applies to ALL channels, both
copper and fiber.
down - Disable the transmit AIS function.
10 - RS-232 Port Mode
up - Data port mode (normal operation). Transmits
data to a desk top computer or other data
collection device
down - Local (auxiliary) management mode. See
the SNMP section for the commands that are
supported via the RS-232 connector.
4
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
6
up
Disable Loop-Back on T1/E1 port 2
down
Enable Loop Back on T1/E1 port 2
8
up
Disable Loop-Back on T1/E1 port 4
down
Enable Loop-Back on T1/E1 port 4
Enable
Disable
Data Mode
Local Management Mode
Installation
Switch Set #2 - Serial and Ethernet Options
1, 2, 3 - Serial Connection Speed Line Settings
Switches 1, 2, and 3 on switch set #2 are used to set the serial connection speed.
1 2 3
1200 baud
2400 baud
4800 baud
9600 baud
4. Enable/Disable Parity
When parity is enabled, an additional bit is
added to the 8-bit signal to identify whether the
signal is sent successfully. Use switch 5 to send
odd or even signal parity.
up - Disable parity.
down - Enable parity.
5. Parity Select
9
up
up - Select odd serial parity.
down - Select even serial parity.
This switch is inactive if switch 4 (UP).
down
10
up
down
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
-- Continued
1 2 3
19200 baud
38400 baud
57600 baud
115200 baud
Disable Parity
Enable Parity
Odd Serial Parity
Even Serial Parity
4
up
down
5
up
down
5
