INSTALLATION
(continued)
Install Slide-In-Module in E-MCC-1600 Chassis
NOTE: Media Converter Slide-in-Modules can be installed in any
installation slot, in any order.
• Remove Media Converter Slide-in-Module protective plate
from selected installation slot by removing two (2) screws
that secure plate to front of E-MCC-1600.
• Carefully slide Media Converter Slide-in-Module into
installation slot, aligning Media Converter Slide-in-Module
with installation guides.
NOTE: Ensure that the Media Converter Slide-in-Module is firmly
seated against the backplane.
• Secure Slide-in-Module by securing panel fastener screw
attached to Slide-in-Module to E-MCC-1600 chassis.
Install Cable
COPPER
T1 100 OHM (RJ-45 CONNECTOR)
OR E1 120 OHM (RJ-45 CONNECTOR)
NOTE: KEEP TWISTED-PAIR RUNS AS SHORT AS POSSIBLE.
• Locate or build twisted-pair cables that are compliant with
specifications on page 10.
• Connect male RJ-45 plug connector at one end of cable to
media converter RJ-45 jack connector.
• Set MDI/MDI-X switch to MDI-X according to network
conditions.
• Connect male RJ-45 plug connector at other end of cable to
network equipment..
E1 75 OHM (COAX CONNECTOR)
NOTE: Ground coax segment to earth ground at one end.
• Locate or build coax cables that are compliant with
specifications on page 10.
• Connect BNC connector at one end of cable to media
converter.
• Connect BNC connector at other end of cable to network
equipment..
FIBER
• Locate or build duplex fiber cables that are compliant with
specifications on page 10.
• Connect male TX and RX cable connectors at one end of cable
to TX and RX female connectors, respectively, on media
converter.
• Connect male TX and RX cable connectors at other end of
cable to RX and TX connectors of compliant fiber device.
Connect to Power
• Install Power Adapter cord at back of Media Converter.
• Connect Power Adapter plug to AC power.
• Verify that Media Converter is powered by observing
illuminated LED(s).

OPERATION

After installation, the media converter should function without operator
intervention.

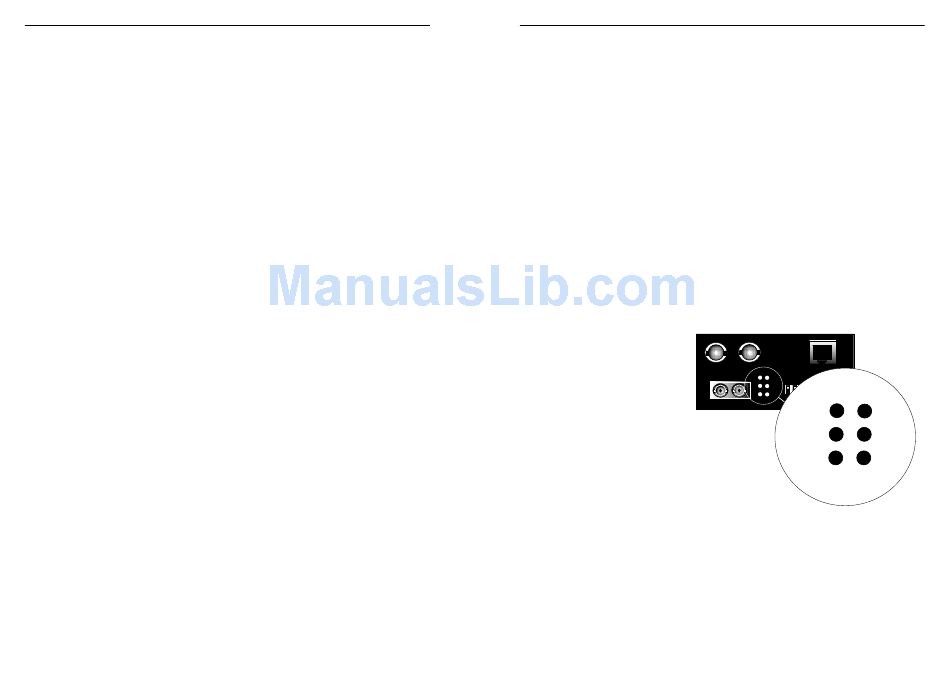

Status LEDs
Use the status LEDs to monitor media converter operation in the network.
Power Steady green
LED indicates
connection to
external AC
power.
SDFiber Signal
Detect/Fiber -
Steady green
LED indicates
fiber link is up.
AISFiber All Ones
Insertion/Fiber
- Blinking
green LED
indicates all ones received on fiber
Coax Steady green LED indicates coax interface selected.
SDTP Signal Detect/Twisted-Pair - Steady green LED indicates
twisted-pair link is up.
AISTP All Ones Insertion/Twisted-Pair - Blinking green LED indicates
all ones received on twisted-pair
Power Coax
SDFiber
SDTP
AISFiber AISTP
