Transition Networks CGFEB1xxx-15x User Manual

Slide-in-module media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

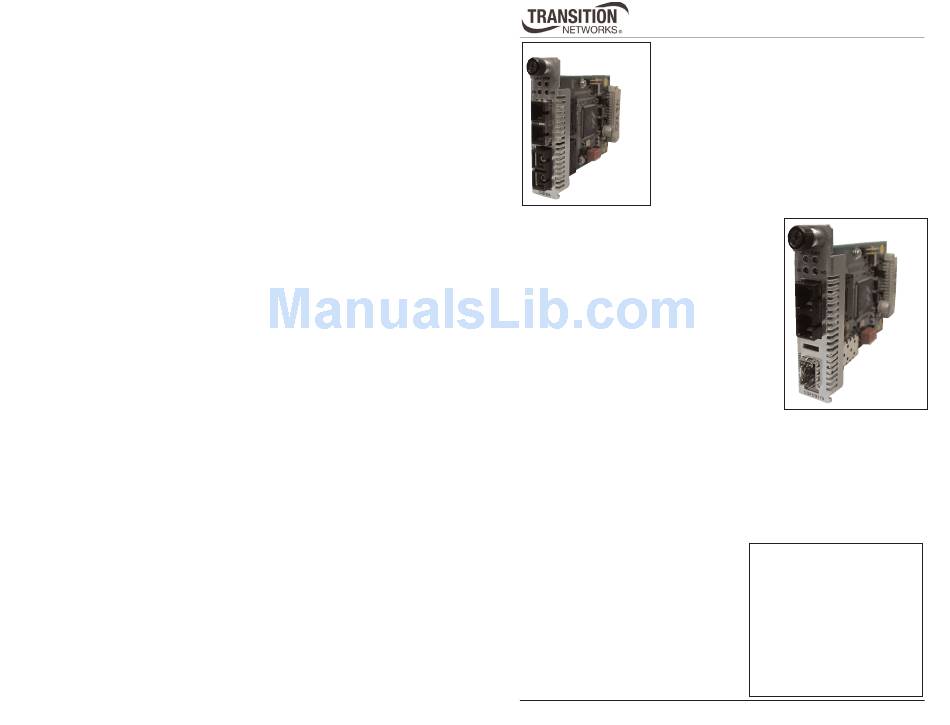

User's Guide
CGFEB1xxx-15x
CGFEB1xxx-15x
Converter
• Fiber to Fiber
• 100Base-FX to 1000Base-SX/LX
Transition Networks CGFEB1xxx-15x series media
converters are designed to install in a PointSystem™
chassis; they connect 100Base-FX to 1000Base-SX or
1000Base-LX devices.
The CGFEB1xxx-15x has two fiber-optic ports.
CGFEB1x40-170
Slide-in-Module Media Converter
•
Fiber to Fiber
•
100Base-FX to Small Form Factor (SFP)
Transition Networks CGFEB1x40-1xx series media
converters are designed to install in a PointSystem
chassis; they connect 100Base-FX to 1000Base SFPs.
The CGFEB1x40-170 has one 100Base-FX port and one
1000Base SFP port.
Note: Third party Multi Source Agreement (MSA) compliant Small Form Factor
Pluggables (SFPs) can be used in the CGFEB1xxx-15x and the CGFEB1x40-170
media converters.
Slide-in-Module Media
CGFEB1x40-170
Installation . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . .8
(DMI) . . . . . . . . . . . . . . . . . . .11
Cable Specifications . . . . . . . .12
Troubleshooting . . . . . . . . . . .15
Contact Us . . . . . . . . . . . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CGFEB1xxx-15x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CGFEB1xxx-15x

Summary of Contents for Transition Networks CGFEB1xxx-15x

  • Page 1: Table Of Contents

    1000Base SFP port. Note: Third party Multi Source Agreement (MSA) compliant Small Form Factor Pluggables (SFPs) can be used in the CGFEB1xxx-15x and the CGFEB1x40-170 media converters. Installation ....4 Operation .
  • Page 2 125 km (77.7 miles) *Typical maximum cable distance. Actual distance is dependent upon the physical The CGFEB1324 extends 1000Base-LX beyond 220 meters. Transition Networks cannot characteristics of the network. guarantee a full 2-km distance on every installation since the distance is largely dependent on the quality of the fiber, cable installation, and splicing.

  • Page 3: Installation

    CGFEB1xxx-1xx CGFEB1xxx-1xx Installation Installation -- Continued CAUTION: Wear a grounding device and observe electrostatic discharge precautions Hardware/software jumper when handling the media converter. Failure to observe this caution could result in damage the media converter. The hardware/software three-pin header J5 is located on the circuit board labeled H and S.
  • Page 4 CGFEB1xxx-1xx CGFEB1xxx-1xx Installation -- Continued Installation -- continued Installing fiber cables Port locations Locate either a 100Base-FX or 1000Base-SX/LX compliant fiber cable with The drawings below illustrate the locations of Port 1 and Port 2 male, two-stranded TX to RX connectors installed at both ends. The CGFEB1xxx-150 and -170 media converters have two ports.

  • Page 5: Operation

    CGFEB1xxx-1xx CGFEB1xxx-1xx Operation Operation—continued Product features Status LEDs Auto-Negotiation (Fiber) The status LEDs show media converter operations. Fiber Auto-Negotiation allows the fiber interface to detect and then advertise the Fiber status LEDs support capabilities of the remote device. It is supported only when the fiber cable PWR: Power ON Green...
  • Page 6 "double-tagged" frame. SNMP VLAN tagging can be configured to one of the following settings: See the on-line documentation that comes with Transition Networks FocalPoint™ • Normal = frames are unmodified when passing through the converter. software for applicable commands and usage.

  • Page 7: Diagnostic Monitoring Interface

    Product features -- continued The following DMI port screen and explanation table contains brief definitions of the DMI support offered on Transition Networks SFP optical interfaces. For further Port-Based VLAN information, please see the help option on the CPSMM-xxx SNMP agent or Focal Allows secure traffic forwarding in one direction only.

  • Page 8: Cable Specifications

    CGFEB1xxx-1xx CGFEB1xxx-1xx Cable Specifications Cable Specification -- Continued Fiber cable -- continued The physical characteristics must meet or exceed IEEE 802.3™ specifications. CGFEB1329-152, Port 2 1310 TX/1550 RX nm single mode Fiber cable Fiber Optic Transmitter Power: min: -3.0 dBm max: +2.0 dBm <10 -9 Bit Error Rate:...

  • Page 9: Technical Specifications

    Verify that the TX and RX cables on the media converter are connected to *Manufacturer’s rated ambient temperature: Tmra range for the CGFEB1xxx-1xx the RX and TX ports, respectively, on the other device. depends on the Transition Networks PointSystem™ chassis in which this slide-in- • Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

  • Page 10: Contact Us

    CGFEB1324-150, CGFEB1329-150, CGFEB1329-151, CGFEB1329-152, CGFEB1329-153, CGFEB1335-150, CGFEB1429-150, CGFEB1429-151, Transition Now CGFEB1429-152, CGFEB1429-153, CGFEB1340-170, CGFEB1440-170 Chat live via the Web with Transition Networks Technical Support. Regulation: EMC Directive 89/336/EEC Log onto www.transition.com and click the Transition Now link. Purpose: To declare that the CGFEB1xxx-1xx to which this declaration refers is in conformity with the following standards.

  • Page 11: Compliance Information

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
