Transition Networks C/TR-CF-01(SM) User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards IEEE 802.5, 802.5j
Delay
50nsec round trip
Environment
Temperature:
Humidity
Altitude
Warranty
Five years
Switch:
The switch on the side of the media converter
provides the following settings:
Norm(al) Used for most network operation.
L(oop-back) S(witch) Used ONLY at the direction of
Transition Networks Technical Support.
NOTE: For more information, go to www.transition.com/support, select
Tech Tips, and then select the Token Ring media converter.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1998, 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Twisted-pair
RX TX
10BASE-T
Fiber UTP/STP
Fiber
33087.D
Token Ring Copper/Fiber
Slide-In-Module Media Converters
C/TR-CF-01, C/TR-CF-01(SM)
USER'S GUIDE

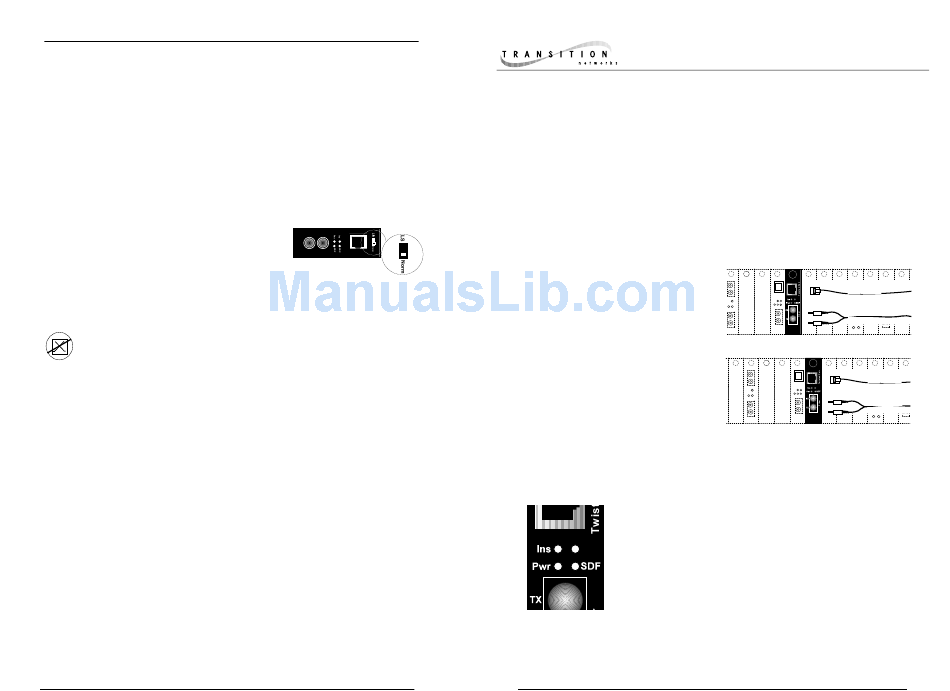

The TRANSITION Networks slide-in-module media converters, C/TR-CF-01 and
C/TR-CF-01(SM), designed to be installed in the TRANSITION Networks Media
Conversion Center, E-MCC-1600, connect unshielded or shielded Token Ring
twisted-pair copper cable to Token Ring multimode fiber-optic cable OR
singlemode fiber-optic cable.
C/TR-CF-01
Provides a Token Ring RJ-45 twisted-pair
connector and an RX (receive) and a TX
(transmit) ST connector to multimode
fiber-optic cable for fiber network
extension distances up to 2 kilometers.
C/TR-CF-01(SM)
Provides a Token Ring RJ-45 twisted-pair
connector and an RX (receive) and a TX
(transmit) ST connector to singlemode
fiber-optic cable for fiber network
extension distances up to 15 kilometers.
Both media converters function at 4Mb/s or 16Mb/s in half-duplex mode or,
when connected to devices capable of full-duplex connectivity, in full-duplex
mode for up to 32Mb/s total throughput.
Status LEDs
P(o)w(e)r Steady green LED indicates connection to
external AC power.
Ins(erted) Steady green LED indicates twisted-pair and
fiber connections negotiated link.
SDC
S(ignal) D(etect) C(opper) Steady green LED indicates
twisted-pair link is up and ready to insert.
S(ignal) D(etect) F(iber) Steady green LED indicates fiber
link is up and ready to insert.
NOTE: The fiber interface LEDs are NOT illuminated until the twisted-pair side
has been initialized and asserts a phantom voltage to the fiber. (See a description
of the activity of the Token Ring twisted-pair to fiber signal in "Media Converters
in the Network" on page 4.)
Minneapolis, MN 55344 USA
UTP or STP
Copper
Multimode
Fiber
Token Ring
C/TR-CF-01
C/TR-CF-01
UTP or STP
Copper
Singlemode
Fiber
Token Ring
C/TR-CF-01
C/TR-CF-01(SM)
