Transition Networks CFMFF1314-280 User Manual

Cfmff13xx-28 series single mode to multimode retiming media converter gigabit ethernet
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Enlarged version

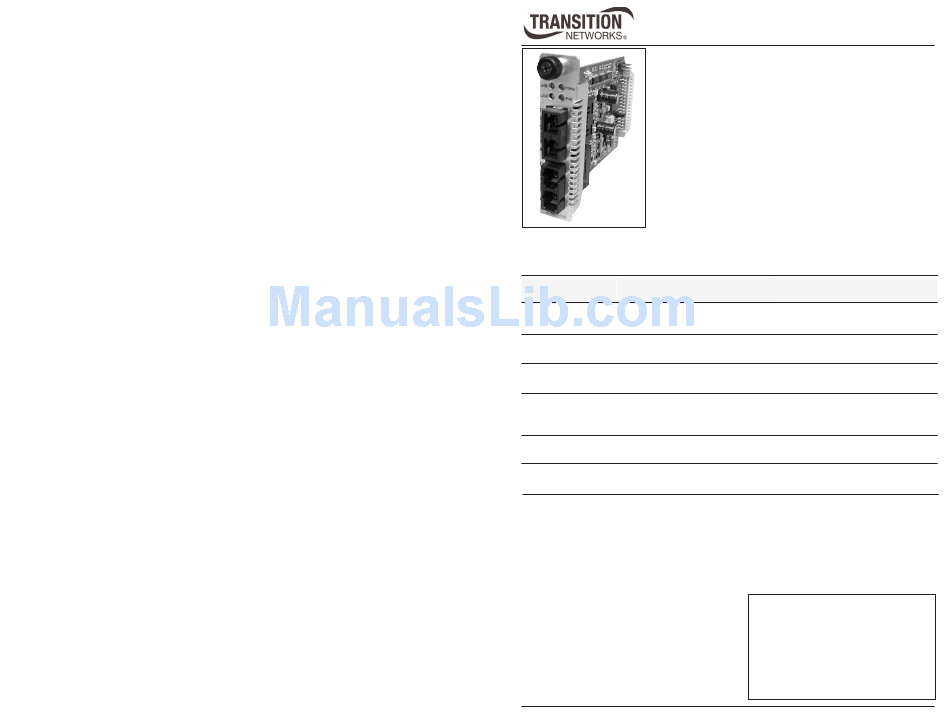

CFMFF13xx-28x
User's Guide
Single Mode to Multimode Retiming Media
Converter
• Slide-in-Module Media Converter
• Gigabit Ethernet
Transition Networks CFMFF13xx-28x series media
converters extend multimode interfaces over gigabit
Ethernet fiber optic cable. The CFMFF13xx-28x is also
designed to be installed into the Transition Networks
PointSystem™ chassis.
Unlike most gigabit Ethernet media converters, which allow only two media
converters in series, the CFMFF13xx-28x has a retiming/reshaping feature that
makes it possible to connect any number of media converters in series.
Part Number
Port One - Duplex Fiber Optic
1000Base-SX
CFMFF1314-280 SC, 850 nm multimode
220 m (721 ft)**
CFMFF1315-280 SC, 850 nm multimode
220 m (721 ft)**
CFMFF1317-280 SC, 850 nm multimode
220 m (721 ft)**
CFMFF1324-280 SC, 850 nm multimode
220 m (721 ft)**
CFMFF1335-280 SC, 850 nm multimode
220 m (721 ft)**
CFMFF3535-280 SC, 1550 nm single mode
125 km (77.5 mi)
Unless otherwise indicated, the distances listed are the typical maximum cable
distance. The actual maximum cable distances are dependent upon the physical
characteristics of the network installation.
** Minimum Cable Distance:
Typical Maximum Cable Distance:
NOTE: The SFMFF13xx-28x model is the
stand alone version of the media converter.
For more information, see the user's guide
on-line at: www.transition.com.
Port Two - Duplex Fiber-Optic
1000Base-LX
SC, 1310 nm single mode
10 km (6.2 miles)
SC, 1310 nm single mode
25 km (15.5 miles)
SC, 1550 nm single mode
65 km (40.3 miles)
SC, 1300 nm multimode
(1000Base-SX) 2 km (1.2 miles)
(62.5 / 125 mm fiber only)
SC, 1550 nm single mode
125 km (77.5 mi)
SC, 1550 nm single mode
125 km (77.5 mi)
2 meters
220 meters for 160/500MHz•Km
270 meters for 200/500MHz•Km
Installation . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . . .9
Contact Us . . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFMFF1314-280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CFMFF1314-280

Summary of Contents for Transition Networks CFMFF1314-280

  • Page 1 Unlike most gigabit Ethernet media converters, which allow only two media converters in series, the CFMFF13xx-28x has a retiming/reshaping feature that makes it possible to connect any number of media converters in series. Part Number Port One - Duplex Fiber Optic...

  • Page 2: Installation

    CFMFF13xx-28x Part Number Port One - Duplex Fiber Optic Port Two - Single Mode Fiber-Optic 1000Base-SX Single Fiber, 1000Base-LX CFMFF1329-280 SC, 850 nm multimode SC, 1310 nm (TX)/1550 nm (RX) 220 m (721 ft)** 20 km (12.4 miles) CFMFF1329-281 SC, 850 nm multimode SC, 1550 nm (TX)/1310 nm (RX) 220 m (721 ft)** 20 km (12.4 miles)
  • Page 3 CFMFF13xx-28x Installation -- Continued Pause (Switches 3 & 4) The pause feature can improve network performance by allowing one end of the link to signal the other to discontinue frame transmission for a set period of time to relieve buffer congestion. To properly set the pause feature in the network, the link partner (i.e., the device to which the CFMFF13xx-28x is linked) must also have comparable pause switches.

  • Page 4: Operation

    1300 nm multimode Fiber-optic Transmitter Power: min: -10.0 dBm Fiber-optic Receiver Sensitivity: min: -17.0 dBm Link Budget: 7.0 dB Port 2: CFMFF1314-280 1310 nm single mode Fiber-optic Transmitter Power: min: -13.0 dBm Fiber-optic Receiver Sensitivity: min: -20.0 dBm Link Budget: 7.0 dB...

  • Page 5: Troubleshooting

    CFMFF13xx-28x Cable Specifications -- continued CFMFF3535-280, Ports 1 & 2 1550 nm single mode Fiber-optic Transmitter Power: min: 0.0 dBm Fiber-optic Receiver Sensitivity: min: -27.0 dBm Link Budget: 27.0 db CFMFF1414-280, Port 2 1310 nm single mode Fiber-optic Transmitter Power: min: -13.0 dBm Fiber-optic Receiver Sensitivity: min: -20.0 dBm...
  • Page 6 Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: CFMFF13xx-28x Series Media Converters Part Number(s): CFMFF1314-280, CFMFF1315-280, CFMFF1317-280, CFMFF1324-280, CFMFF1335-280, CFMFF3535-280, CFMFF1329-280, CFMFF1329-281, CFMFF1329-282, CFMFF1329-283, CFMFF1414-280 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CFMFF13xx-28x series and CFMFF1414-280 to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    CFMFF13xx-28x Compliance Information CISPR22/EN55022 Class A CE Mark UL Listed C-UL Listed FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This manual is also suitable for:

Cfmff1315-280Cfmff1317-280Cfmff1324-280Cfmff1335-280Cfmff3535-280Cfmff1329-280 ... Show all
