Transition Networks C/E-TX-SX-02 User Manual

10/100base-tx to 10/100base-sx slide-in-module media converters
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Enlarged version

COMPLIANCE INFORMATION

UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes
Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende Gegenmaßnahmen
werantwortlich ist.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques
appropriées
VCCI Class 1 Compliance
This equipment is in the 1st Class category (information equipment to be used in commercial and/or
industrial areas) and conforms to the standards set by the Voluntary Control Council For Interference by
Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in
commercial and/or industrial areas. When used in a residential area or in an adjacent area thereto,
interference may be caused to radio and TV receivers, etc. Read the instructions for correct handling.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
Copyright Restrictions
© 2000 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Printed in the U.S.A.
10/100BASE-TX to 10/100BASE-SX
The TRANSITION Networks C/E-TX-SX-02 series Fast Ethernet™ media converters,
designed to be installed in the E-MCC-1600 Media Conversion Center,
connect 10BASE-T or 100BASE-TX shielded or unshielded twisted-pair copper
cable to 850 nm 10/100BASE-SX multimode fiber-optic cable, using either an ST
fiber connector (C/E-TX-SX-02) or an SC fiber connector (C/E-TX-SX-02(SC)).
C/E-TX-SX-02
Provides an RJ-45 twisted pair
10BASE-T/100BASE-TX connector
and a set of RX (receive) and TX
(transmit) ST 10/100BASE-SX
connectors to 850 nm multimode
fiber-optic cable.
C/E-TX-SX-02(SC)
Provides an RJ-45 twisted pair
10BASE-T/100BASE-TX connector
and an RX (receive) and TX
(transmit) SC 10/100BASE-SX
connector to 850 nm multimode
fiber-optic cable.
The AutoCross™ feature allows either straight-through or crossover
twisted-pair copper cable to be used when connecting the C/E-TX-SX-02
to a 10/100BASE-TX device.
The Autonegotiation feature allows automatic speed and mode sensing
between the media converter and attached devices.
The LinkAlert™ feature allows the C/E-TX-SX-02 media converter to pass
10/100BASE-TX side link faults to
the 10/100BASE-SX side and to pass
10/100BASE-SX side link faults to the
10/100BASE-TX side.

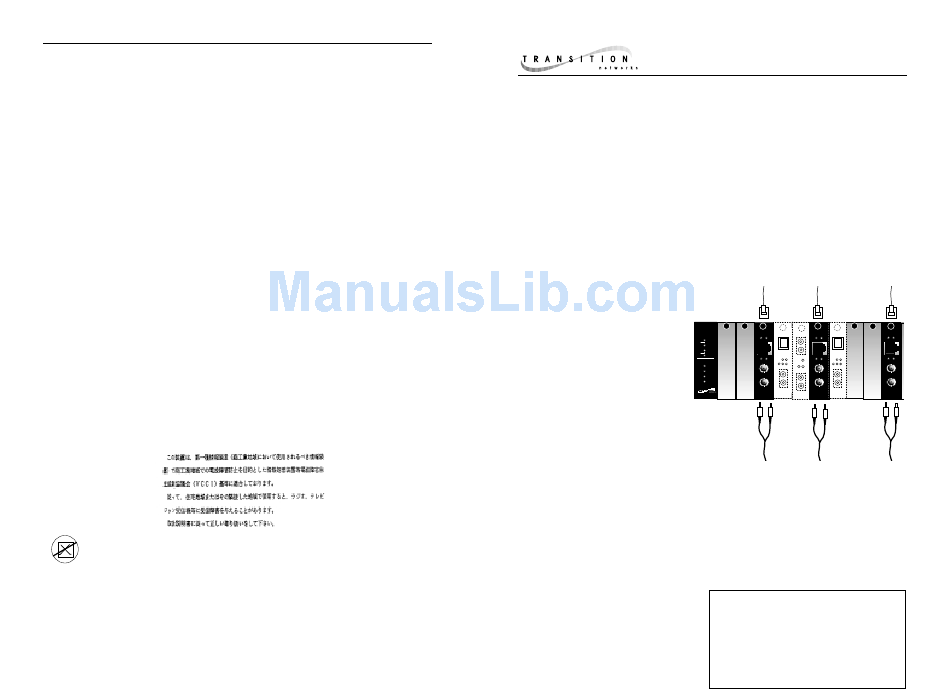

33156.B
Slide-In-Module Media Converters
C/E-TX-SX-02
USER'S GUIDE
Media
Conversion
Center
Power Modules
Power
1
In Use
Power
2
In Use
Management
Module
Power
Link
TX
RX
C/E-TX-SX-02 in the Network . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .5
Operation . . . . . . . . . . . . . . . . . . . . .6
Fault Isolation and Correction . . . . .8
Cable Specifications . . . . . . . . . . . .10
Technical Specifications . . . . . . . . .11
Compliance Information . . . . . . . . .12
Minneapolis, MN 55344 USA
