4. Select the desired PCIe slot to Enable or Disable Intel VMD functionality according to
the current hardware configuration being used. Hot Plug Capability can also be Enabled
or Disabled.

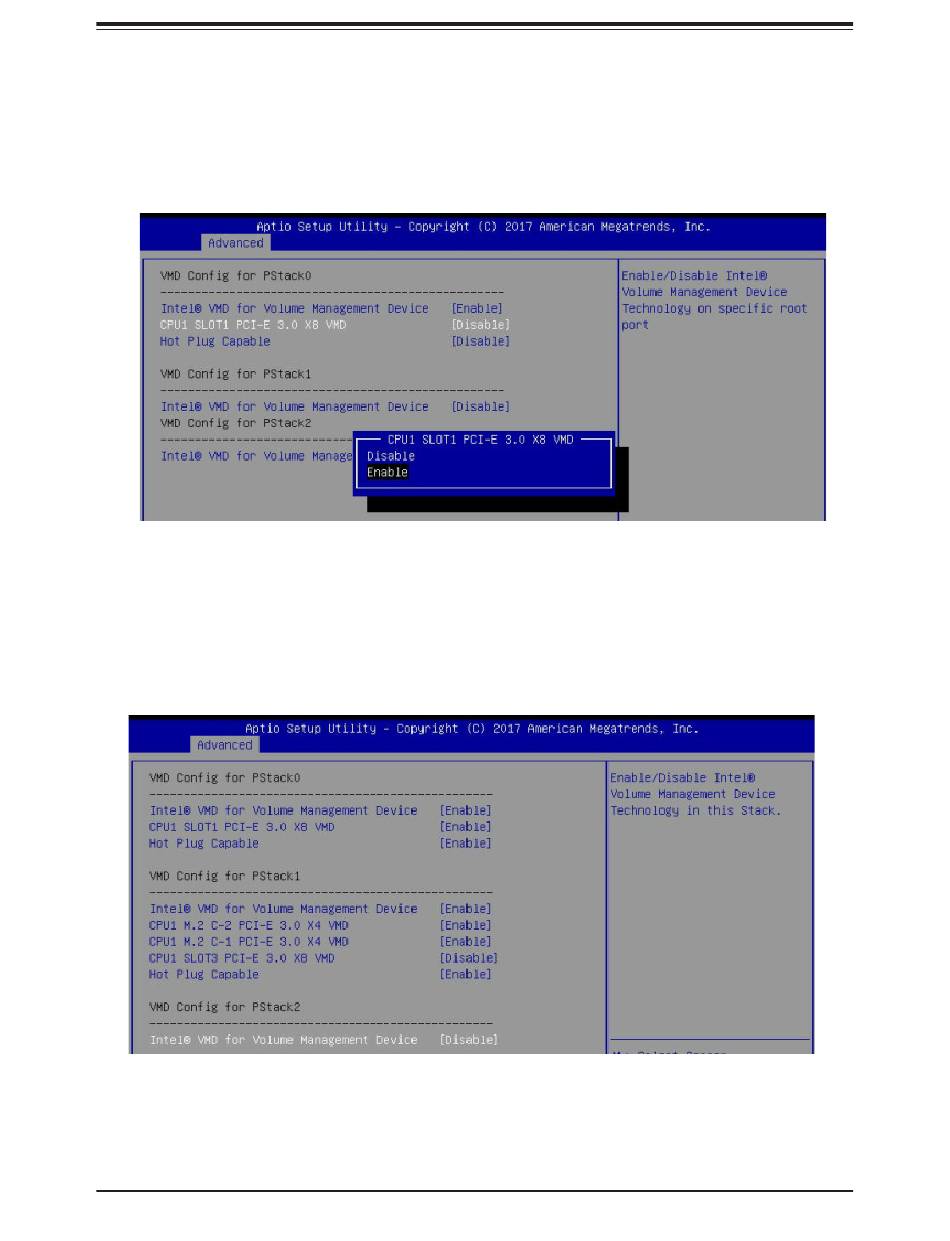

Figure 6-5. BIOS, Enabling VMD Functionality per Slot
5. Repeat steps 3 and 4 for each PStack# on each CPU to be enabled or disabled. In this
example, we enabled CPU1 Slot1 (Figure 6-11) and CPU2 Slot5 (Figure 6-12) (four U.2
form factor SSDs), as well as CPU1 M.2 C-1 and CPU1 M2. C-2 (two M.2 form factor
SSDs)
Figure 6-6. BIOS, Enabling CPU1 Example
