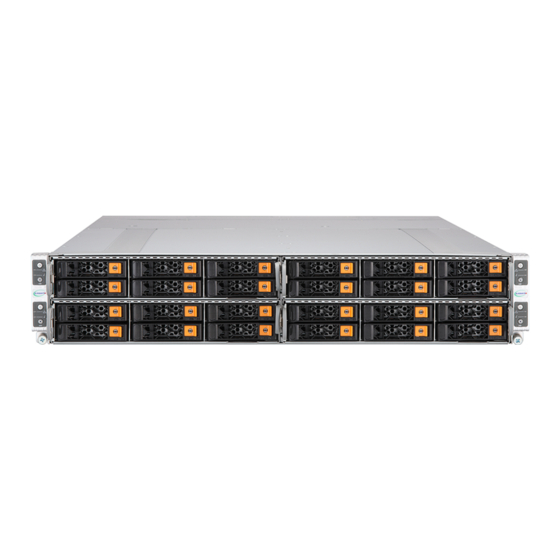

- Page 1 SuperServer ® SYS-211GT-HNTR SYS-211GT-HNC8R USER’S MANUAL Revision 1.0...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/...
- Page 4 Preface Contents Contacting Supermicro ......................8 Chapter 1 Introduction 1.1 Overview ..........................9 1.2 System Features ........................10 System: Front View ......................10 Control Panel ........................11 System: Rear View ......................12 1.3 Motherboard Layout ......................13 Quick Reference Table ......................14 Block Diagram ........................15 Chapter 2 Server Installation 2.1 Overview ..........................16...
- Page 5 Preface 3.3 Static-Sensitive Devices .....................25 Precautions ........................25 Unpacking .........................25 3.4 Processor and Heatsink Installation ...................26 The 4th Generation Intel Xeon Scalable Processor ............26 Overview of the Processor Carrier Assembly ..............27 Overview of the CPU Socket ....................27 Overview of the Processor Heatsink Module ..............28 Creating the Processor Carrier Assembly .................29 Assembling the Processor Heatsink Module ..............30 Preparing the CPU Socket for Installation ................31...
- Page 6 Preface Chapter 4 Motherboard Connections 4.1 Power Connections ......................51 4.2 Headers and Connectors ....................51 4.3 Jumper Settings .........................54 How Jumpers Work ......................54 4.4 LED Indicators ........................56 Chapter 5 Software 5.1 Microsoft Windows OS Installation ..................57 5.2 Driver Installation ........................59 5.3 SuperDoctor 5 ........................60 ®...
- Page 7 7.7 Where to Get Replacement Components ................81 7.8 Reporting an Issue ......................81 Technical Support Procedures ..................81 Returning Merchandise for Service ...................81 Vendor Support Filing System ..................82 7.9 Feedback ..........................82 7.10 Contacting Supermicro ......................83 Appendix A Standardized Warning Statements for AC Systems Appendix B System Specifications...
- Page 8 San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
- Page 9 2U rackmount, (WxHxD) 17.67 x 3.46 x 28" (449 x 88 x 711.2 mm) Notes: A Quick Reference Guide can be found on the product page of the Supermicro website. The following safety models associated with the SYS-211GT-HNTR/HNC8R have been...
- Page 10 Chapter 1: Introduction 1.2 System Features System: Front View The CSE-GT214BC is a 2U chassis that supports four hot-plug nodes. Refer to Appendix B for additional specifications. The chassis front offers access to the storage drives, a control panel for each node, four pullout service tags, and two thumbscrews. Control Panels for Node A (bottom) Control Panels for Node C (bottom) and Node B (top)
- Page 11 Chapter 1: Introduction Control Panel Power switches and status LEDs are located on the control panel on the front of the chassis. Power Button NIC LED Information LED BMC Button/UID LED Node Label Figure 1-2. Control Panel (per node) Control Panel Features Feature Description The main power switch applies or removes primary power from the power supply to the...
- Page 12 Chapter 1: Introduction System: Rear View The illustration below shows the features on the rear of the chassis. BMC LAN BMC LAN VGA Switch VGA Switch PWS1 PWS2 Locking Clip Locking Clip Locking Lever Locking Lever Figure 1-3. System Rear View Rear Chassis Features Feature Description...
- Page 13 Chapter 1: Introduction 1.3 Motherboard Layout Below is a layout of the X13SET-G/GC with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter JAIOM1SB1 JMD1 JMD2 JFIO1...
- Page 14 Chapter 1: Introduction Quick Reference Table Jumper Description Default Setting JBT1 CMOS Clear Open (Normal) JI²C1, JI²C2 Backplane or Riser Card/AIOM Enable Pins 1-2 (RSC/AIOM) JPME2 ME Manufacturing Mode Pins 1-2 (Normal) JWD1 Watch Dog Timer Pins 1-2 (Reset) Description Status LED1 UID LED...
- Page 15 Chapter 1: Introduction Block Diagram NCSI Molex Impel Molex Impel NCSI UPI2 UPI3 CPU 1 Socket E SocketID 00 UPI1 PE0 DMI PE1 PE2 UPI0 SAS3808 PCIe 4.0 x8 PCIe [0..7] PCIe 5.0 x16 PCIe 5.0 x 16 SAS [0..5] MCIOX8 MCIOX8 MCIOX8...
- Page 16 Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components.
- Page 17 Chapter 2: Server Installation • Always make sure the rack is stable before extending a server or other component from the rack. • You should extend only one server or component at a time - extending two or more simul- taneously may cause the rack to become unstable.
- Page 18 Chapter 2: Server Installation Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
- Page 19 Chapter 2: Server Installation 2.3 Installing the Rails This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided.
- Page 20 Chapter 2: Server Installation Installing the Rails on a Rack 1. Loosen the adjusting screw to allow the rear section to slide in the front section. 2. Push the small hooks on the front section of the rail into the holes on the front post of the rack and then down, until the spring-loaded pegs snap into the rack holes.
- Page 21 Chapter 2: Server Installation Chassis Installation Slide the chassis into the rack so that the bottom of the chassis slides onto the bottom lip of the rails. Figure 2-3. Sliding the Chassis into the Rack Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing.
- Page 22 Chapter 3: Maintenance and Component Installation Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.
- Page 23 Chapter 3: Maintenance and Component Installation Installing and Removing the Node Drawers The SYS-211GT-HNTR/HNC8R contains four individual motherboards in separate node drawers. Warning: Except for short periods of time, do not operate the server without the cover in place, which helps maintain proper airflow and prevent overheating. Removing Nodes from the Chassis Each of the four individual nodes may be removed from the chassis without powering down the system.
- Page 24 Chapter 3: Maintenance and Component Installation Removing the Chassis Cover You can access some chassis components, such as fans, by removing the cover. Removing the Chassis Cover 1. Remove the four screws securing the cover to the chassis. 2. Slide the cover toward the rear of the chassis. 3.
- Page 25 Chapter 3: Maintenance and Component Installation 3.3 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...
- Page 26 Thermal grease is pre-applied on a new heatsink. No additional thermal grease is needed. • Refer to the Supermicro website for updates on processor support. • All graphics in this manual are for illustration purposes only. Your components may look different.
- Page 27 Chapter 3: Maintenance and Component Installation Overview of the Processor Carrier Assembly The processor carrier assembly contains the Intel Xeon processor and a processor carrier. 1. Intel Xeon Processor 2. Processor Carrier Overview of the CPU Socket The CPU socket is protected by a plastic protective cover. 1.
- Page 28 Chapter 3: Maintenance and Component Installation Overview of the Processor Heatsink Module The Processor Heatsink Module (PHM) contains a heatsink, a processor carrier, and the Intel Xeon processor. 1. Heatsink with Thermal Grease 2. Processor Carrier 3. Intel Xeon Processor Processor Heatsink Module (PHM) Bottom View...
- Page 29 Chapter 3: Maintenance and Component Installation Creating the Processor Carrier Assembly To install a processor into the processor carrier, follow the steps below: 1. Before installation, make sure the lever on the processor carrier is pressed down as shown below. 2.
- Page 30 Chapter 3: Maintenance and Component Installation Assembling the Processor Processor Carrier Assembly Heatsink Module (Upside Down) After creating the processor carrier Triangle on the CPU assembly for the processor, mount it onto the heatsink to create the processor heatsink module (PHM): 1.
- Page 31 Chapter 3: Maintenance and Component Installation Preparing the CPU Socket for Installation This motherboard comes with a plastic protective cover installed on the CPU socket. Remove it from the socket to install the Processor Heatsink Module (PHM). Gently pull up one corner of the plastic protective cover to remove it.
- Page 32 Chapter 3: Maintenance and Component Installation Installing the Processor Heatsink Module After assembling the Processor Heatsink Module (PHM), install it onto the CPU socket: 1. Align pin 1 of the PHM with the printed triangle on the CPU socket. See the left image below.
- Page 33 Chapter 3: Maintenance and Component Installation Removing the Processor Heatsink Module Before removing the processor heatsink module (PHM) from the motherboard, shut down the system and then unplug the AC power cord from all power supplies. Then follow the steps below: 1.
- Page 34 Chapter 3: Maintenance and Component Installation 3.5 Memory Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X13SET-G/GC supports up to 4 TB of ECC RDIMM and RDIMM 3DS DDR5 memory with speeds of up to 4800 MT/s (DDR5-4400MT/s when fully populated) in 16 memory slots.
- Page 35 Chapter 3: Maintenance and Component Installation Compatible and Incompatible DIMM Types DIMM Type RDIMM RDIMM 3DS 9x4 RDIMM RDIMM Compatible Incompatible Incompatible RDIMM 3DS Incompatible Compatible Incompatible 9x4 RDIMM Incompatible Incompatible Compatible Speed (MT/s); Voltage (V); DIMM Capacity Slot Per Channel (SPC) and DIMM Per Channel (DPC) (GB) *Data below assumes 2 SPC unless otherwise noted.
- Page 36 Chapter 3: Maintenance and Component Installation General Guidelines for Optimizing Memory Performance • It is recommended to use DDR5 memory of the same type, size, and speed. • Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
- Page 37 Chapter 3: Maintenance and Component Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, there is no specific sequence or order required. 2. Push the release tabs outwards on both ends of the DIMM slot to unlock it. Receptive Point 3.
- Page 38 Chapter 3: Maintenance and Component Installation Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in Section 3.1.
- Page 39 Safe to remove NVMe device Status LED Amber Blinking at 1Hz Do not remove NVMe device Note: Enterprise level drives are recommended for use in Supermicro chassis and servers. For information on recommended storage drives, visit the Supermicro website product pages at www.supermicro.com/products.
- Page 40 Chapter 3: Maintenance and Component Installation Drive Configuration The CSE-GT214BC chassis contains four separate computing node drawers, each with its own motherboard. Each node controls a set of six drives. If a node drawer is pulled out of the chassis, the drives associated with that node will power down. Node Drawer Locations Node B controls drives B0, B1, B2, B3, B4, and B5 Node D controls drives D0, D1, D2, D3, D4, and D5...
- Page 41 Chapter 3: Maintenance and Component Installation Removing/Installing Drives Removing a Drive Carrier from the Chassis 1. Push the release button on the drive carrier. This releases and extends the drive carrier handle. If the release button does not release it, the handle may be locked. Use a flathead screwdriver and rotate the screw counterclockwise 45 degrees to unlock the handle.
- Page 42 Chapter 3: Maintenance and Component Installation Installing a 2.5" Drive into the Drive Tray 1. Place the drive carrier on a flat surface. 2. Orient the drive with the connector facing the bottom rear of the carrier. The drive can be inserted from above into the clips until a "click"...
- Page 43 Chapter 3: Maintenance and Component Installation Hot-Swap for NVMe Drives Supermicro servers support NVMe surprise hot-swap. For even better data security, NVMe orderly hot-swap is recommended. NVMe drives can be ejected and replaced remotely using BMC. Ejecting a Drive 1. BMC > System > Storage Monitoring > Physical View 2.
- Page 44 BMC > Sensor Reading – Shows the single highest temperature among all the NVMe drives. AIOM Card A Supermicro Advanced Input/Output Module (AIOM) provides options for network connection when inserted into an AIOM slot on the motherboard tray. The following AIOM cards may be used with the SYS-211GT-HNTR/HNC8R: AOC-ATGC-i2TM, AOC-A25G-m2SM, and AOC- A25G-i2SM.
- Page 45 Chapter 3: Maintenance and Component Installation I/O Card Module The I/O card module provides options for input/output connections for different devices. It is inserted into the I/O slot in the chassis. Removing the I/O Card Module 1. Power down the system as described in Section 3-1 and remove the cover. 2.
- Page 46 Chapter 3: Maintenance and Component Installation 3.7 System Cooling Fans Fan speed is controlled by a system temperature setting in IPMI. If a fan fails, the remaining fans will ramp up to full speed. Replace any failed fan at your earliest convenience with the same type and model.
- Page 47 Chapter 3: Maintenance and Component Installation Installing the Air Shroud Air shrouds help to funnel the airflow provided by the fans over the system components that generate the most heat. The system requires air shrouds for each node to maximize airflow efficiency.
- Page 48 The chassis features dual redundant power supplies. The power modules can be changed without powering down the system. Please exchange the power modules within one minute. New units can be ordered directly from Supermicro or authorized distributors. These power supplies are auto-switching capable. This feature enables them to automatically sense the input voltage and operate at a 100-120 VAC or 180-240 VAC.
- Page 49 Chapter 3: Maintenance and Component Installation 3.9 Cable Routing Diagram Refer to the diagrams below for representations of how the NVMe and AIOM cables are routed throughout the system. When disconnecting cables to add or replace components, refer to these diagrams so you can reroute them in the same manner. Proper cable routing is important in maintaining proper airflow through the system.
- Page 50 Chapter 3: Maintenance and Component Installation 3.9 BMC Reset The BMC can be reset using the button on the front control panel or on the chassis rear. • Reset – Press and hold the button. After six seconds, the LED blinks at 2 Hz. The BMC resets and the reset duration is ~250 ms.
- Page 51 Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections, jumpers and LED indicators on the motherboard and provides pinout definitions. Not all connections are required. A motherboard layout indicating component locations may be found in Chapter Please review the Safety Precautions in Appendix A before installing or removing components.
- Page 52 BMC is able to poll the temperature reading from it. Note: For detailed instructions on how to configure Network Interface Card (NIC)settings, refer to the Network Interface Card Configuration User's Guide posted on the web page under the link: http://www.supermicro.com/support/manuals/.
- Page 53 Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. Go to the following link for more information on the TPM: http://www.supermicro.com/manuals/other/TPM.pdf. Trusted Platform Module Header Pin Definitions...
- Page 54 Chapter 4: Motherboard Connections 4.3 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin #1 is identified with a thicker border line on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
- Page 55 Chapter 4: Motherboard Connections Backplane or Riser Card/AIOM Enable Use the JI²C1 (JPCIEA1) and JI²C2 (JPCIEB1) jumpers to enable backplane or riser card/ AIOM features. The backplane supports NVMe while the riser card/AIOM supports standard PCIe devices and AIOM cards. Refer to the table below for jumper settings. JI²C1 (JPCIEA1) and JI²C2 (JPCIEB1) Jumper Settings Jumper Setting...
- Page 56 Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com/ support/manuals/. UID LED...
- Page 57 1. Create a method to access the Microsoft Windows installation ISO file. That can be a USB flash or media drive. 2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash or media drive.
- Page 58 Chapter 5: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.
- Page 59 The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive.
- Page 60 5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).
- Page 61 BIOS settings that are related to IPMI. For general documentation and information on IPMI, visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm. BMC ADMIN User Password For security, each system is assigned a unique default BMC password for the ADMIN user.
- Page 62 Chapter 6: Optional Components Chapter 6 Optional Components This chapter describes optional system components and installation procedures. 6.1 Optional Parts List Optional Parts List Description Part Number Quantity (Max.) Front window dummy cover for rear I/O node tray MCP-120-21408-0N SPI capable TPM 2.0 AOM-TPM-9670V-S...
- Page 63 Chapter 6: Optional Components 6.2 Intel Virtual RAID on CPU (VROC) Intel Virtual RAID on CPU (Intel VROC) is an enterprise RAID solution for NVMe SSDs ® directly attached to Intel Xeon Scalable processors. Intel Volume Management Device (VMD) is an integrated controller inside the CPU PCIe root complex. •...
- Page 64 Chapter 6: Optional Components Additional Information Additional information is available on the product page for the Supermicro add-on card and the linked manuals. www.supermicro.com/products/accessories/addon/AOC-VROCxxxMOD.cfm Hardware Key The Intel VROC hardware key is a license key that detects the Intel VROC SKU and activates the function accordingly.
- Page 65 Chapter 6: Optional Components Enabling NVMe RAID RAID for NVMe SSDs must be enabled through the UEFI BIOS. 1. Install the patch as described in the Restrictions and Requirements section on a previous page. 2. Reboot the server. 3. Press [DEL] key to enter BIOS. 4.
- Page 66 Chapter 6: Optional Components Figure 6-2. BIOS VMD Setting Examples...
- Page 67 Chapter 6: Optional Components 13. Select Strip Size (Default 64KB). 14. Select Create Volume. 15. If another RAID is needed, start again at step 6. 16. Press [F4] to save and reboot. Figure 6-3. Created Volume without Figure 6-4. Created Volume with enabling RAID spanned over VMD enabling RAID spanned over VMD Controller...
- Page 68 Chapter 6: Optional Components Status Indications An LED indicator on the drive carrier shows the RAID status of the drive. Drive Carrier Status LED Indicator Status State (red) Normal function Locating Blinking at 4 Hz Fault Solid on Rebuilding Blinking at 1 Hz IBPI SFF 8489 Defined Status LED States Hot Swap Drives Intel VMD enables hot-plug and hot-unplug for NVMe SSDs, whether from Intel or other...
- Page 69 Chapter 7 Troubleshooting and Support 7.1 Information Resources Website A great deal of information is available on the Supermicro website, supermicro.com. Menu Icon Figure 7-1. Supermicro Website • Specifications for servers and other hardware are available by clicking the menu icon, then selecting the Products option.
- Page 70 Security Center for recent security notices Supermicro Phone and Addresses 7.2 Baseboard Management Controller Interface The system supports the Baseboard Management interface. BMC is used to provide remote access, monitoring and management. There are several BIOS settings that are related to BMC.
- Page 71 Chapter 7: Troubleshooting and Support 7.3 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the Technical Support Procedures Returning Merchandise for Service section(s) in this chapter. Power down the system before changing any non hot-swap hardware components.
- Page 72 Chapter 7: Troubleshooting and Support No Video If the power is on but you have no video, remove all the add-on cards and cables. Then power up the system again to see if you then have video. System Boot Failure If the system does not display POST (Power-On-Self-Test) or does not respond after the power is turned on, check the following: Turn on the system with only one DIMM module installed.
- Page 73 Chapter 7: Troubleshooting and Support Note: Refer to the product page on our website at http://www.supermicro.com for memory and CPU support and updates. 3. HDD support: Make sure that all storage drives work properly. Replace the bad drives with good ones.
- Page 74 Chapter 7: Troubleshooting and Support 7.4 Crash Dump Using BMC In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. You can download a crash dump of status information using BMC.
- Page 75 Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
- Page 76 USB device or a writable CD/DVD. Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
- Page 77 Chapter 7: Troubleshooting and Support Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below. 4. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update"...
- Page 78 Chapter 7: Troubleshooting and Support 7. Press <Del> continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press <F4>...
- Page 79 Chapter 7: Troubleshooting and Support Note: Do not interrupt this process until the BIOS flashing is complete. 9. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.
- Page 80 Chapter 7: Troubleshooting and Support 7.6 CMOS Clear JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS. To Clear CMOS 1.
- Page 81 7.7 Where to Get Replacement Components If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com.
- Page 82 For issues related to Red Hat Enterprise Linux, since it is a subscription based OS, contact your account representative. 7.9 Feedback Supermicro values your feedback as we strive to improve our customer experience in all facets of our business. Please email us at techwriterteam@supermicro.com to provide feedback on our manuals.
- Page 83 San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
- Page 84 Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
- Page 85 Appendix A: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
- Page 86 Appendix A: Standardized Warning Statements . ٌ ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز ٍ...
- Page 87 Appendix A: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .יש...
- Page 88 Appendix A: Standardized Warning Statements Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
- Page 89 Appendix A: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
- Page 90 Appendix A: Standardized Warning Statements אזהרה מפני ניתוק חשמלי !אזהרה יש לנתק את המערכת מכל מקורות החשמל ויש להסיר את כבל החשמלי מהספק .לפני גישה לחלק הפנימי של המארז לצורך התקנת או הסרת רכיבים يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد انطاقت...
- Page 91 Appendix A: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !אזהרה .צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד واملدربيه...
- Page 92 Appendix A: Standardized Warning Statements Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
- Page 93 Appendix A: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
- Page 94 Appendix A: Standardized Warning Statements هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل اسحبذال البطارية فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
- Page 95 Appendix A: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
- Page 96 Appendix A: Standardized Warning Statements Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
- Page 97 Appendix A: Standardized Warning Statements هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
- Page 98 Appendix A: Standardized Warning Statements תיאום חוקי החשמל הארצי !אזהרה .התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة بالكهرباء 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
- Page 99 Appendix A: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. סילוק המוצר !אזהרה .סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה التخلص...
- Page 100 Appendix A: Standardized Warning Statements Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
- Page 101 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
- Page 102 .قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحيUL وأCSA ( ةمالع لمحت يتلاوUL/CSA) لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عمSupermicro.
- Page 103 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...
- Page 104 Appendix B: System Specifications Appendix B System Specifications Processor Support* Single 4th Generation Intel Xeon Scalable Processor in a Socket E (LGA 4677) Chipset* Intel C741 PCH BIOS* 256 Mb SPI AMI BIOS ® Memory* Up to 4 TB of ECC RDIMM and RDIMM 3DS DDR5 memory with speeds of up to 4800 MT/s Storage Drives* Front hot-swap drives: Supports up to four SATA/SAS/NVMe drives depending on selected enablement kits (SAS with SYS-211GT-HNC8R only)
- Page 105 Appendix B: System Specifications Operating Environment Operating Temperature: 10º to 35º C (50º to 95º F) Non-operating Temperature: -30º to 60º C (-22º to 140º F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) Regulatory Compliance FCC, ICES, CE, VCCI, RCM, NRTL, CB, UKCA, KCC, BSMI Applied Directives, Standards...
