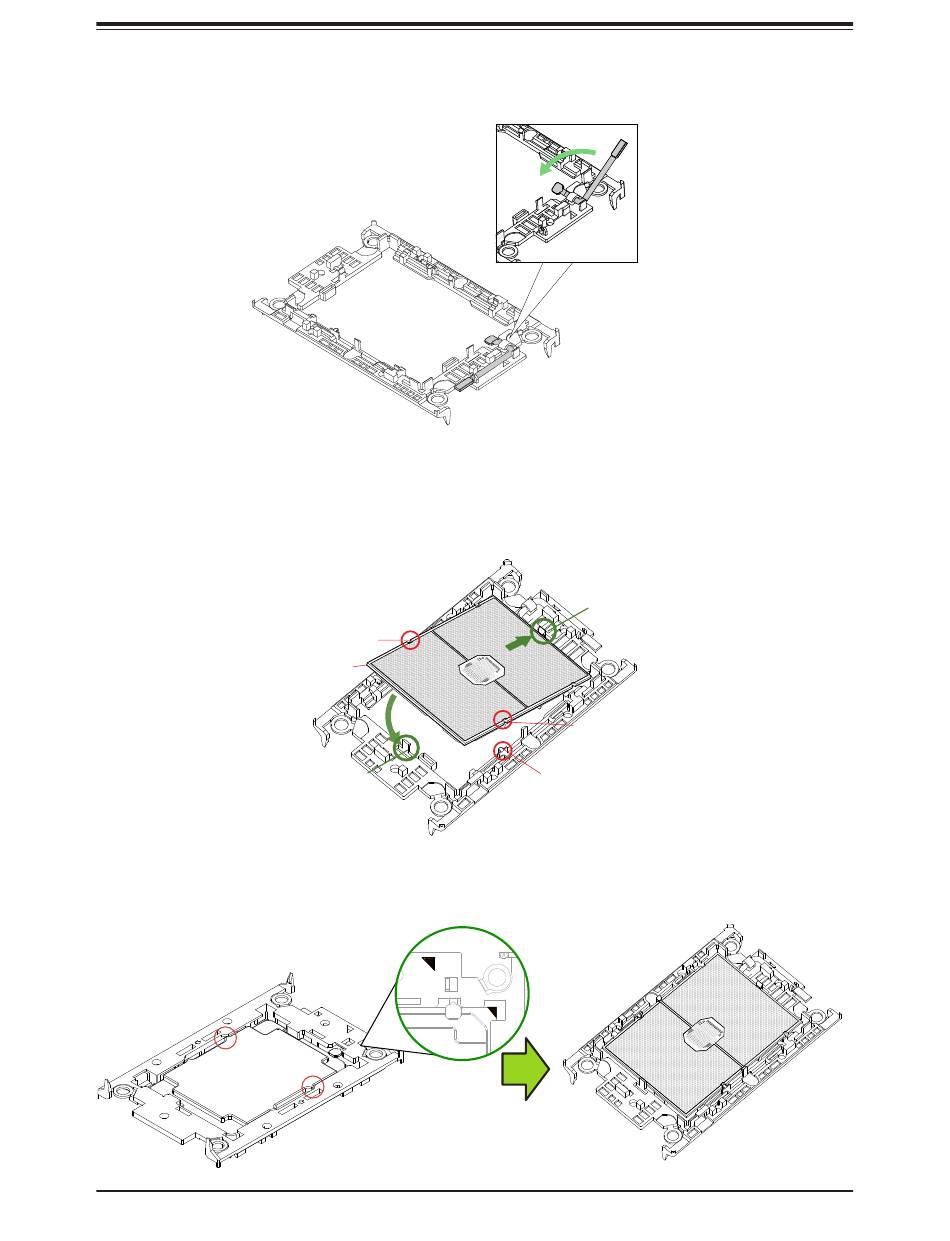

3. Locate the lever on the CPU socket and press the lever down as shown below.
4. Using Pin 1 as a guide, carefully align the CPU keys (A & B) on the processor against
the CPU keys on the carrier (a & b) as shown in the drawing below.
5. Once they are properly aligned, carefully place one end of the processor into the latch
marked 1 on the carrier, and place the other end of processor into the latch marked 2.
6. After the processor is placed inside the carrier, examine the four sides of the processor,
making sure that the processor is properly seated on the carrier.
Processor Carrier Assembly
(Top Side View)
Chapter 3: Maintenance and Component Installation
B
CPU Key (on the
processor)
CPU Key (on
b
the carrier)
2
Latch
41
Latch
1
A
CPU Key (on the
processor)
a
CPU Key (on the
carrier)
Processor Carrier Assembly
