One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
FEATURES
Full featured evaluation board used in conjunction with
low voltage digiPOT motherboard (EVAL-MB-LV-SDZ)
Multiple test circuits
Multiple ac/dc input signals
PC control via a separately purchased system demonstration
platform
(SDP-B
PC software for control
EVALUATION KIT CONTENTS
EVAL-AD5165DBZ
EVAL-MB-LV-SDZ motherboard
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the
Electronic version of the
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Arrow.com.
Downloaded from
Evaluation Board for the
or SDP-S)
evaluation board
AD5165
data sheet
EVAL-AD5165DBZ
user guide
PHOTOGRAPH OF
EVAL-AD5165DBZ

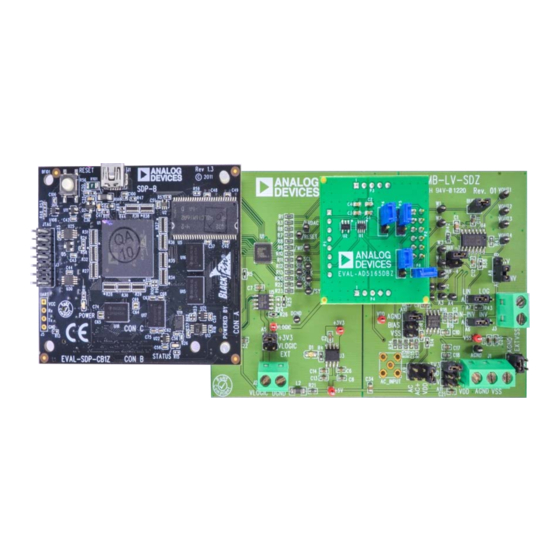

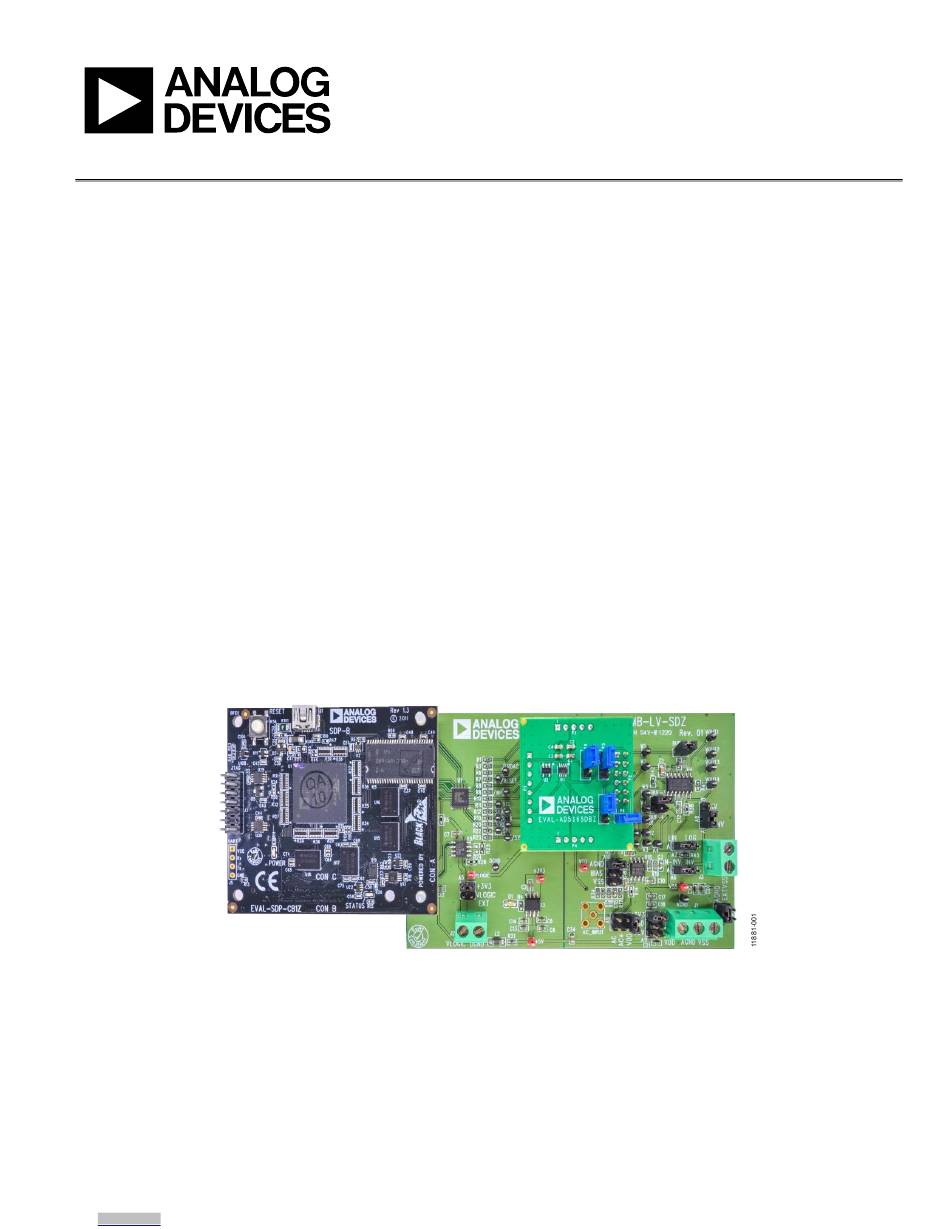

Figure 1. Digital Picture of Evaluation Board with Low Voltage DigiPOT Motherboard and System Demonstration Platform
EVAL-AD5165DBZ User Guide
AD5165
Digital Potentiometer
GENERAL DESCRIPTION
This user guide describes the evaluation boards for evaluating the
AD5165, a single-channel, 256-position, ultralow power, 1.8 V
logic level digital potentiometer.
The
AD5165
supports single-supply 2.7 V to 5.5 V operation,
making the device suitable for battery-powered applications and
many applications requiring superior low temperature coefficient
performance.
In addition, the
AD5165
to vary the wiper setting. The resistance between the wiper and
either end point of the fixed resistor varies linearly with respect to
the digital code transferred into the RDAC latch.
The
EVAL-AD5165DBZ
LV-SDZ motherboard can operate in single-supply mode and
incorporate an internal power supply from the USB.
Complete specifications for the
AD5165
data sheet, which is available from
and should be consulted in conjunction with this user guide
when using the evaluation board.
WITH MOTHERBOARD AND SDP-B
Rev. 0 | Page 1 of 16
UG-629
uses an SPI-compatible digital interface
daughter board and the EVAL-MB-
AD5165
can be found in the
www.analog.com
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD5165DBZ
Summary of Contents for Analog Devices EVAL-AD5165DBZ
-
Page 1: Features
EVAL-AD5165DBZ User Guide UG-629 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluation Board for the AD5165 Digital Potentiometer FEATURES GENERAL DESCRIPTION This user guide describes the evaluation boards for evaluating the Full featured evaluation board used in conjunction with AD5165, a single-channel, 256-position, ultralow power, 1.8 V... -
Page 2: Table Of Contents
Test Circuits ...................4 Evaluation Kit Contents ..............1 Evaluation Board Software ...............6 General Description ................. 1 Installing the Software ..............6 Photograph of EVAL-AD5165DBZ with Motherboard Running the Software ..............6 and SDP-B ..................1 Operating the Software ..............7 Revision History ................2 Evaluation Board Schematics and Artwork ........8... -
Page 3: Evaluation Board Hardware
EVAL-AD5165DBZ User Guide UG-629 EVALUATION BOARD HARDWARE LINK OPTIONS POWER SUPPLIES Several link and switch options are incorporated on the EVAL- The EVAL-MB-LV-SDZ supports using single power supplies. MB-LV-SDZ and EVAL-AD5165DBZ boards and must be set The evaluation board can be powered either from the SDP port up before using the evaluation system. -
Page 4: Test Circuits
UG-629 EVAL-AD5165DBZ User Guide TEST CIRCUITS 1kHz EVAL-AD5165DBZ and EVAL-MB-LV-SDZ incorporate several test circuits to evaluate the performance of the AD5165. AC_INPUT The RDAC can be operated as a digital-to-analog converter RDAC (DAC), as shown in Figure 2. VOUT1 BUF-W1... - Page 5 EVAL-AD5165DBZ User Guide UG-629 Signal Amplifier 1.7kΩ VOUT2 The RDAC can be operated as an inverting or noninverting signal amplifier and can support linear or pseudologarithmic gain. Table 5 shows the available configurations. 10nF The noninverting amplifier with linear gain is shown in Figure 4, and the gain is defined in Equation 3.
-
Page 6: Evaluation Board Software
To run the program, do the following: opens, as shown in Figure 8. Click Start > All Programs > Analog Devices > AD5165 > AD5165 Eval Board. (To uninstall the program, click Start > Control Panel > Add or Remove Programs >... -
Page 7: Operating The Software
EVAL-AD5165DBZ User Guide UG-629 OPERATING THE SOFTWARE Manual Control Tab The Manual Control tab, as shown in Figure 9, allows customizing The main window of the EVAL-AD5165DBZ software is an I C data-word by manually switching each serial data-word divided into two tabs: Visual Control and Manual Control. -
Page 8: Evaluation Board Schematics And Artwork
UG-629 EVAL-AD5165DBZ User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK MOTHERBOARD Figure 10. SDP Connector and Power Supply Rev. 0 | Page 8 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from... - Page 9 EVAL-AD5165DBZ User Guide UG-629 Figure 11. Schematic of Test Circuits Rev. 0 | Page 9 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 10 UG-629 EVAL-AD5165DBZ User Guide Figure 12. Schematic of Connectors to Daughter Board Rev. 0 | Page 10 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 11 EVAL-AD5165DBZ User Guide UG-629 Figure 13. Component Side View Figure 14. Component Placement Drawing Figure 15. Layer 2 Side PCB Drawing Rev. 0 | Page 11 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from...
-
Page 12: Daughter Board
UG-629 EVAL-AD5165DBZ User Guide DAUGHTER BOARD Figure 16. Schematic of Daughter Board Rev. 0 | Page 12 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... - Page 13 EVAL-AD5165DBZ User Guide UG-629 Figure 17. Component Side View Figure 18. Component Placement Drawing Figure 19. Layer 2 Side PCB Drawing Rev. 0 | Page 13 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
-
Page 14: Bill Of Materials
UG-629 EVAL-AD5165DBZ User Guide BILL OF MATERIALS Table 6. Motherboard Bill of Materials Reference Designator Description Supplier /Part Number BUF-3, BUF-4, BUF-W1 2-pin (0.1" pitch) header and shorting shunt FEC 1022247 and FEC 150411 A6, A7, A8 3-pin SIL header and shorting link... - Page 15 EVAL-AD5165DBZ User Guide UG-629 Table 7. Daughter Board Bill of Materials Reference Designator Description Supplier /Part Number 256-position digital potentiometer AD5165BUJZ100 Logic inverter NC7S04M5X 2-pin (0.1" pitch) header and shorting shunt FEC 1022247 and FEC 150411 P5, P6, P7 3-pin SIL header and shorting link...
- Page 16 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
