Input Output Manager
In order to use the available functions it is necessary to make some electrical connec-
tions that must be set on this configuration area.

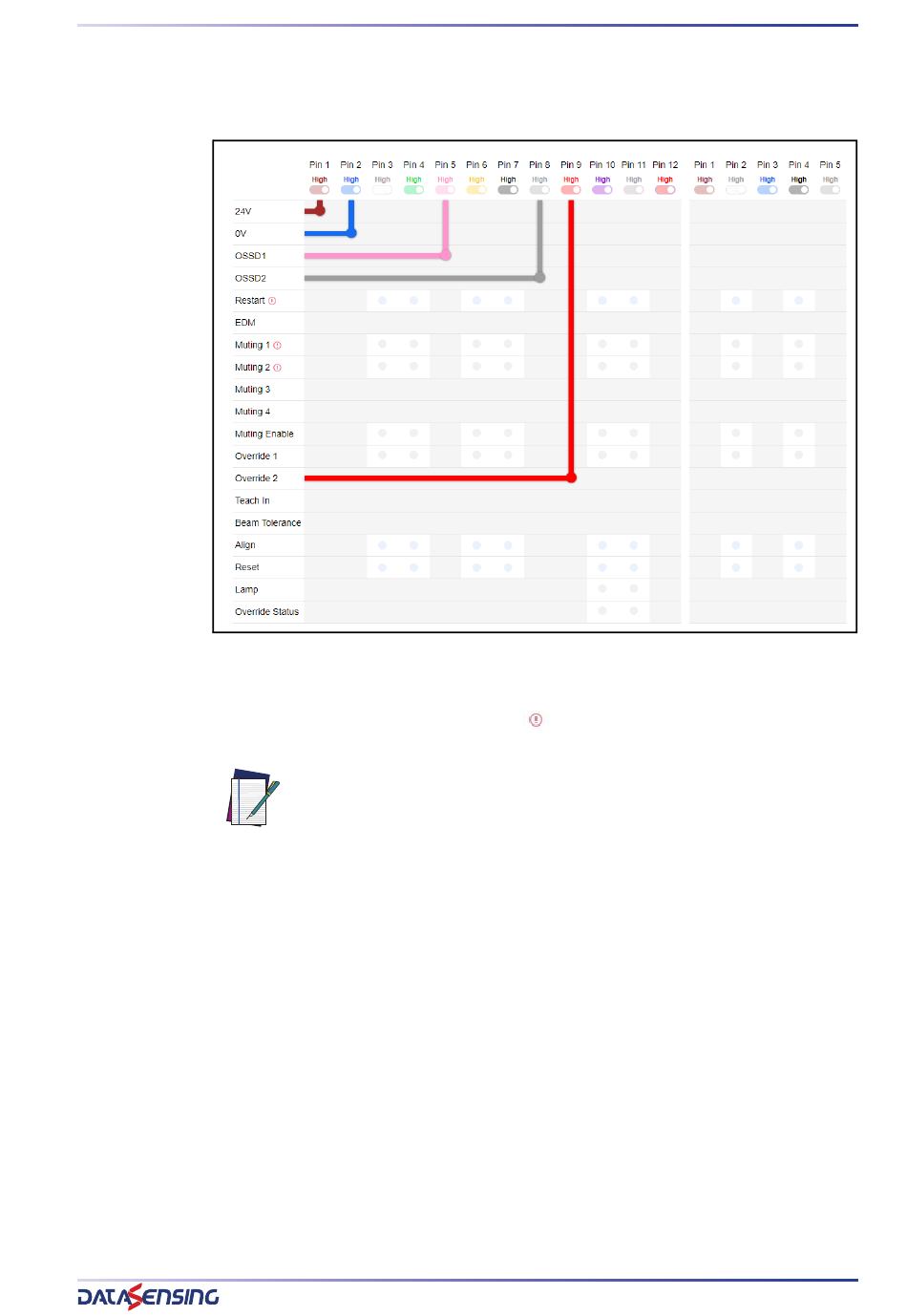

Figure 26: Input Output Manager windows
In this window the connections already set up will be visible while the connections to be
made will be highlighted by an alert circle
NOTE: Only for some functions it is possible to select the type of signal
(HIGH or LOW).
.
PRODUCT REFERENCE GUIDE
USER INTERFACE
41
