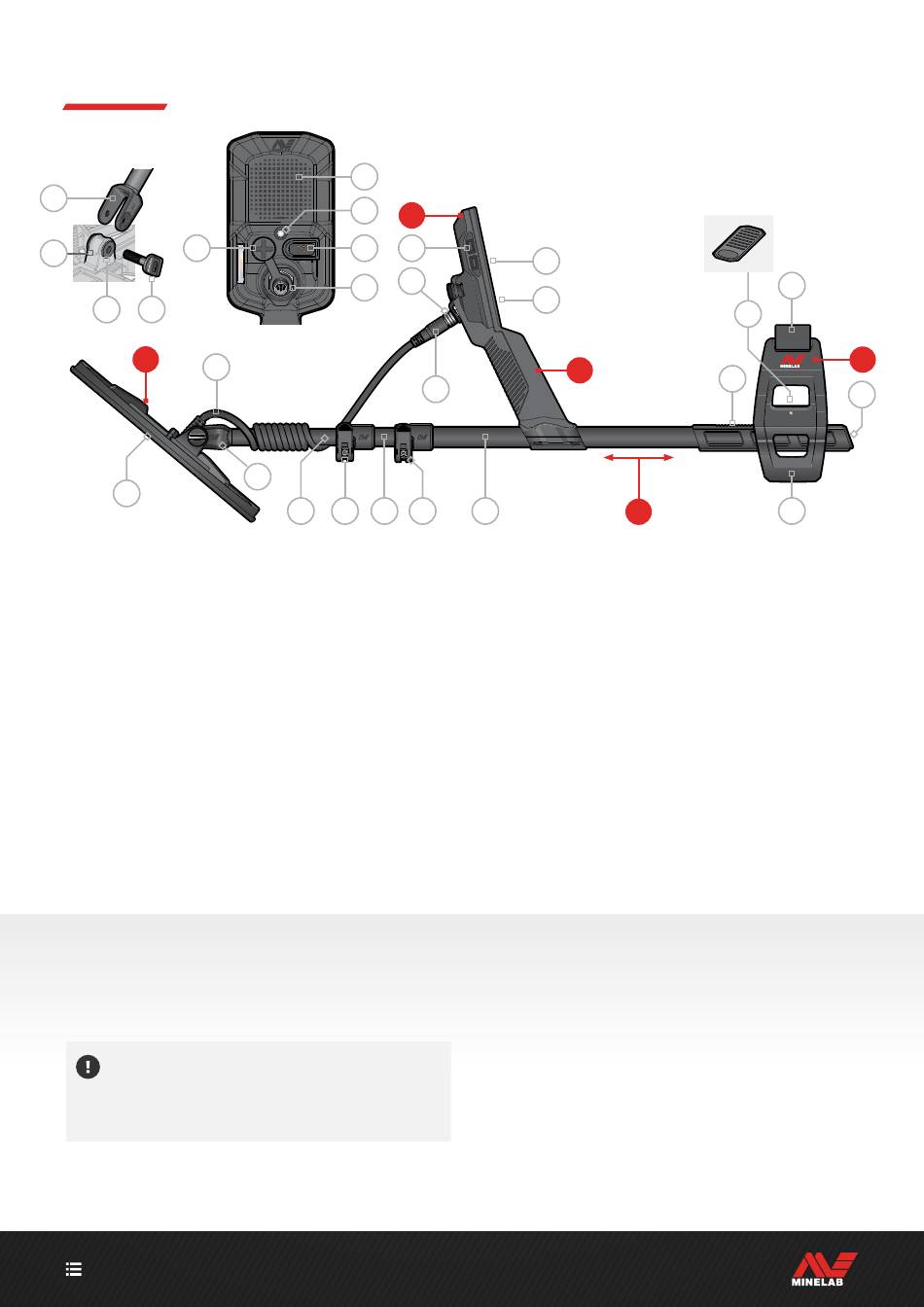

Parts of the Detector

23
7
31
29 30
24
26
25
1. Control Pod
2. Display
3. Keypad
4. Side Buttons (×4)
5. Speaker
6. Flashlight
7. Headphone Socket 3�5 mm/⅛"
(with waterproof dust‑cap)
8. Charging Interface
9. Coil Connector Interface
10. Handgrip
with vibration and internal
Lithium‑ion Rechargeable Battery

SCREEN PROTECTOR APPLICATION

Applying a screen protector will protect your screen
against scuffing and scratching from normal use�
NOTICE: Never clean the Display lens using
solvents or alcohol‑based cleaners� To clean the
Display lens, use a slightly damp cloth with mild
soap detergent�
CONTENTS
5
6
1
8 4
28
9
23
22 21 20 19
11. SCORPION™ Armrest
12. Stand
13. Armrest Lock
14. Armstrap
15. Armrest Rail
16. Shaft Bung
17. Shafts
18. Upper Shaft
19. Upper Camlock
20. Middle Shaft
21. Lower Camlock
22. Lower Shaft
23. Shaft Yoke
2
3
10
27
18
1. Remove the thin plastic film from the detector screen�
Make sure the screen is free of dust and fingerprints�
2. Peel the backing off of the screen protector, being
careful not to touch the adhesive side�
3. Hold the edges of the screen protector, align it to the
screen, and apply gently�
4. Wipe any bubbles to the edge with a soft, clean cloth�
5. Peel off the front layer�
9
14
13
15
17
24. Coil (with cable)
25. Skidplate
26. Coil Cable
27. Coil Connector
28. Retaining Ring
29. Coil Washers (×2)
30. Coil Bolt
31. Yoke Bracket
11
16
12
