Screens

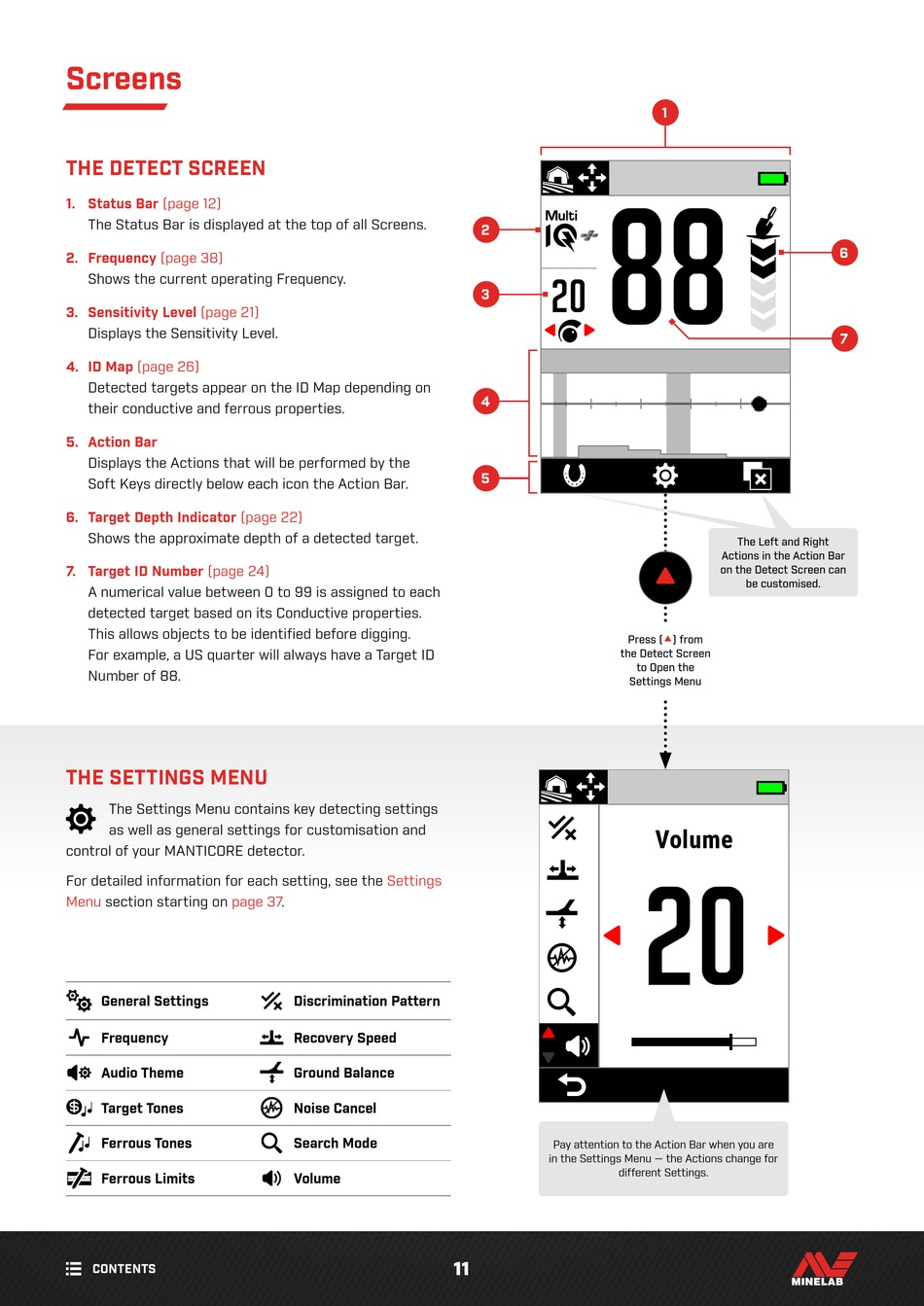

THE DETECT SCREEN

1. Status Bar (page 12)
The Status Bar is displayed at the top of all Screens�
2. Frequency (page 38)
Shows the current operating Frequency�
3. Sensitivity Level (page 21)
Displays the Sensitivity Level�
4. ID Map (page 26)
Detected targets appear on the ID Map depending on
their conductive and ferrous properties�
5. Action Bar
Displays the Actions that will be performed by the
Soft Keys directly below each icon the Action Bar�
6. Target Depth Indicator (page 22)
Shows the approximate depth of a detected target�
7. Target ID Number (page 24)
A numerical value between 0 to 99 is assigned to each
detected target based on its Conductive properties�
This allows objects to be identified before digging�
For example, a US quarter will always have a Target ID
Number of 88�

THE SETTINGS MENU

The Settings Menu contains key detecting settings
as well as general settings for customisation and
control of your MANTICORE detector�
For detailed information for each setting, see the
Menu section starting on page
General Settings
Frequency
Audio Theme
Target Tones
Ferrous Tones
Ferrous Limits
CONTENTS
Settings
37�
Discrimination Pattern
Recovery Speed
Ground Balance
Noise Cancel
Search Mode
Volume
88
2
20
3
4
5
Press () from
the Detect Screen
Pay attention to the Action Bar when you are
in the Settings Menu — the Actions change for
different Settings�
11
1
The Left and Right
Actions in the Action Bar
on the Detect Screen can
be customised.
to Open the
Settings Menu
Volume
20
6
7
