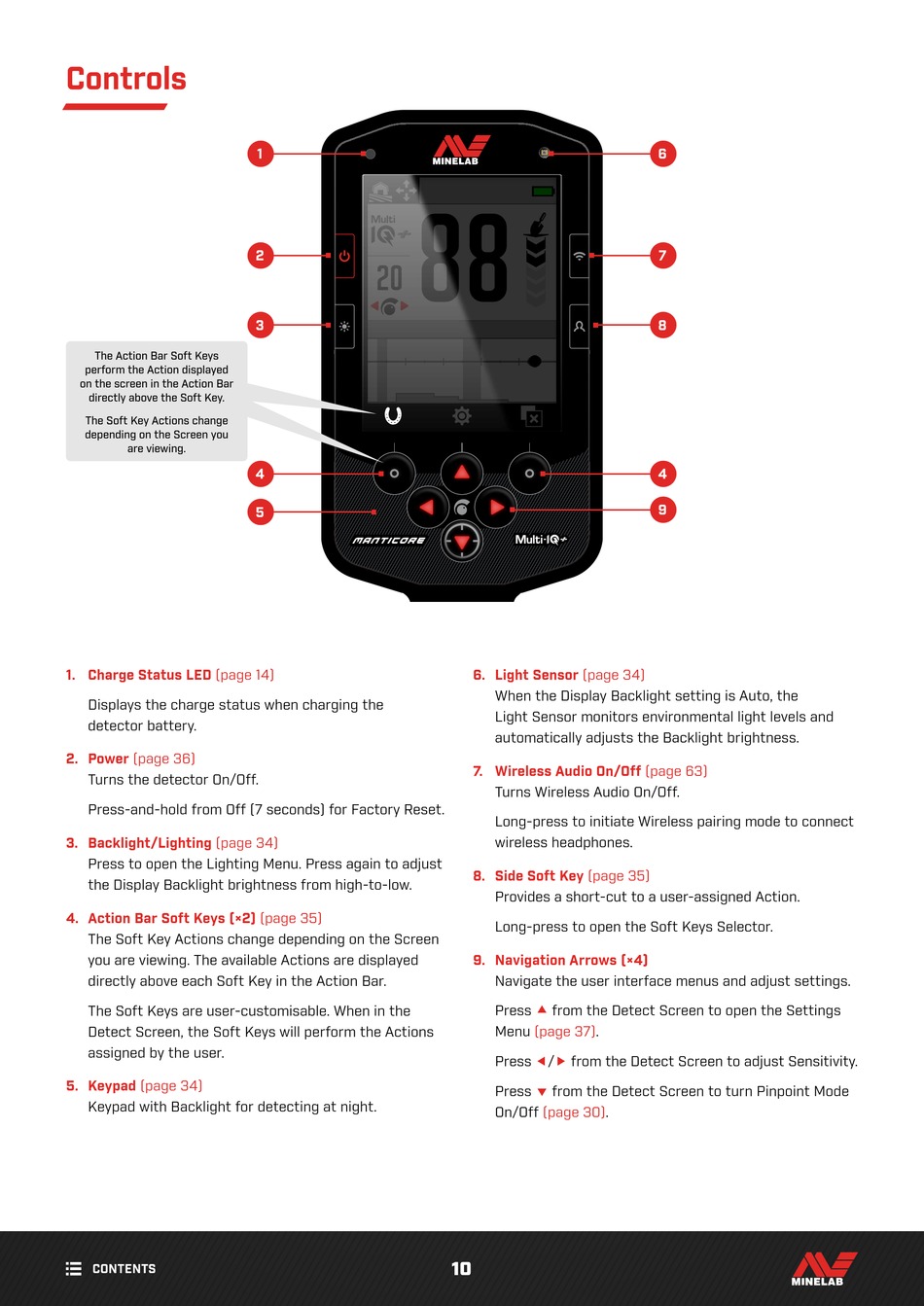

Controls

The Action Bar Soft Keys
perform the Action displayed
on the screen in the Action Bar
directly above the Soft Key.
The Soft Key Actions change
depending on the Screen you
are viewing.
1. Charge Status LED (page 14)
Displays the charge status when charging the
detector battery�
2. Power (page 36)
Turns the detector On/Off�
Press‑and‑hold from Off (7 seconds) for Factory Reset�
3. Backlight/Lighting (page 34)
Press to open the Lighting Menu� Press again to adjust
the Display Backlight brightness from high‑to‑low�
4. Action Bar Soft Keys (×2) (page 35)
The Soft Key Actions change depending on the Screen
you are viewing� The available Actions are displayed
directly above each Soft Key in the Action Bar�
The Soft Keys are user‑customisable� When in the
Detect Screen, the Soft Keys will perform the Actions
assigned by the user�
5. Keypad (page 34)
Keypad with Backlight for detecting at night�
CONTENTS
1
2
3
4
5
6. Light Sensor (page 34)
When the Display Backlight setting is Auto, the
Light Sensor monitors environmental light levels and
automatically adjusts the Backlight brightness�
7. Wireless Audio On/Off (page 63)
Turns Wireless Audio On/Off�
Long‑press to initiate Wireless pairing mode to connect
wireless headphones�
8. Side Soft Key (page 35)
Provides a short‑cut to a user‑assigned Action�
Long‑press to open the Soft Keys Selector�
9. Navigation Arrows (×4)
Navigate the user interface menus and adjust settings�
Press  from the Detect Screen to open the Settings
Menu (page 37)�
Press / from the Detect Screen to adjust Sensitivity�
Press from the Detect Screen to turn Pinpoint Mode

On/Off (page 30)�
10
6
7
8
4
9
