Target Tones

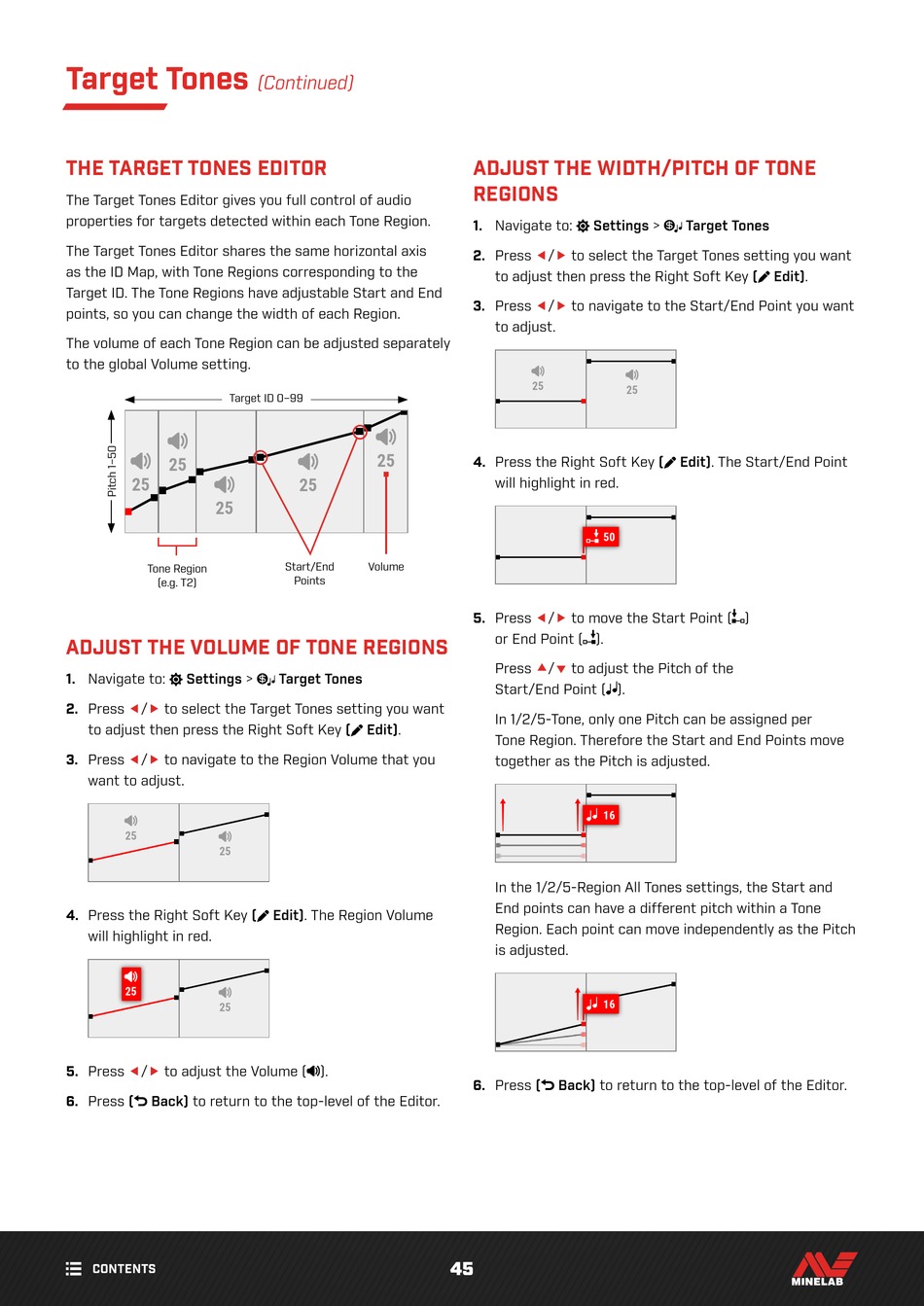

THE TARGET TONES EDITOR

The Target Tones Editor gives you full control of audio
properties for targets detected within each Tone Region�
The Target Tones Editor shares the same horizontal axis
as the ID Map, with Tone Regions corresponding to the
Target ID� The Tone Regions have adjustable Start and End
points, so you can change the width of each Region�
The volume of each Tone Region can be adjusted separately
to the global Volume setting�
Target ID 0–99
25
25
25
Tone Region
(e�g� T2)

ADJUST THE VOLUME OF TONE REGIONS

1. Navigate to: Settings >
2. Press to select the Target Tones setting you want
/
to adjust then press the Right Soft Key (
3. Press to navigate to the Region Volume that you
/
want to adjust�
25
25
4. Press the Right Soft Key (
will highlight in red�
25
25
5. Press / to adjust the Volume ( )�
6. Press ( Back) to return to the top‑level of the Editor�
CONTENTS
(Continued)
25
25
Start/End Volume
Points
Target Tones
Edit)�
Edit)� The Region Volume
ADJUST THE WIDTH/PITCH OF TONE
REGIONS
1. Navigate to: Settings >
2. Press / to select the Target Tones setting you want
to adjust then press the Right Soft Key (
3. Press / to navigate to the Start/End Point you want
to adjust�
25
4. Press the Right Soft Key (
will highlight in red�
50
5. Press
/ to move the Start Point ( )
or End Point ( )�
Press / to adjust the Pitch of the
Start/End Point ( )�
In 1/2/5‑Tone, only one Pitch can be assigned per
Tone Region� Therefore the Start and End Points move
together as the Pitch is adjusted�
16
In the 1/2/5‑Region All Tones settings, the Start and
End points can have a different pitch within a Tone
Region� Each point can move independently as the Pitch
is adjusted�
16
6. Press ( Back) to return to the top‑level of the Editor�
45
Target Tones
Edit)�
25
Edit)� The Start/End Point
