Depth Indicator

The Depth Indicator shows the approximate
depth of detected targets� After a target
is detected, the Depth Indicator reading
remains on the screen for 5 seconds, or
until the next target is detected�
If a target is detected but is masked by the Discrimination
Pattern or Ferrous Limits, no depth indication is given�
--
20
The Depth Indicator is a guide only� Fewer arrows indicate a
shallower target, more arrows indicate a deeper target� The
accuracy can vary depending on the target type and
ground conditions�

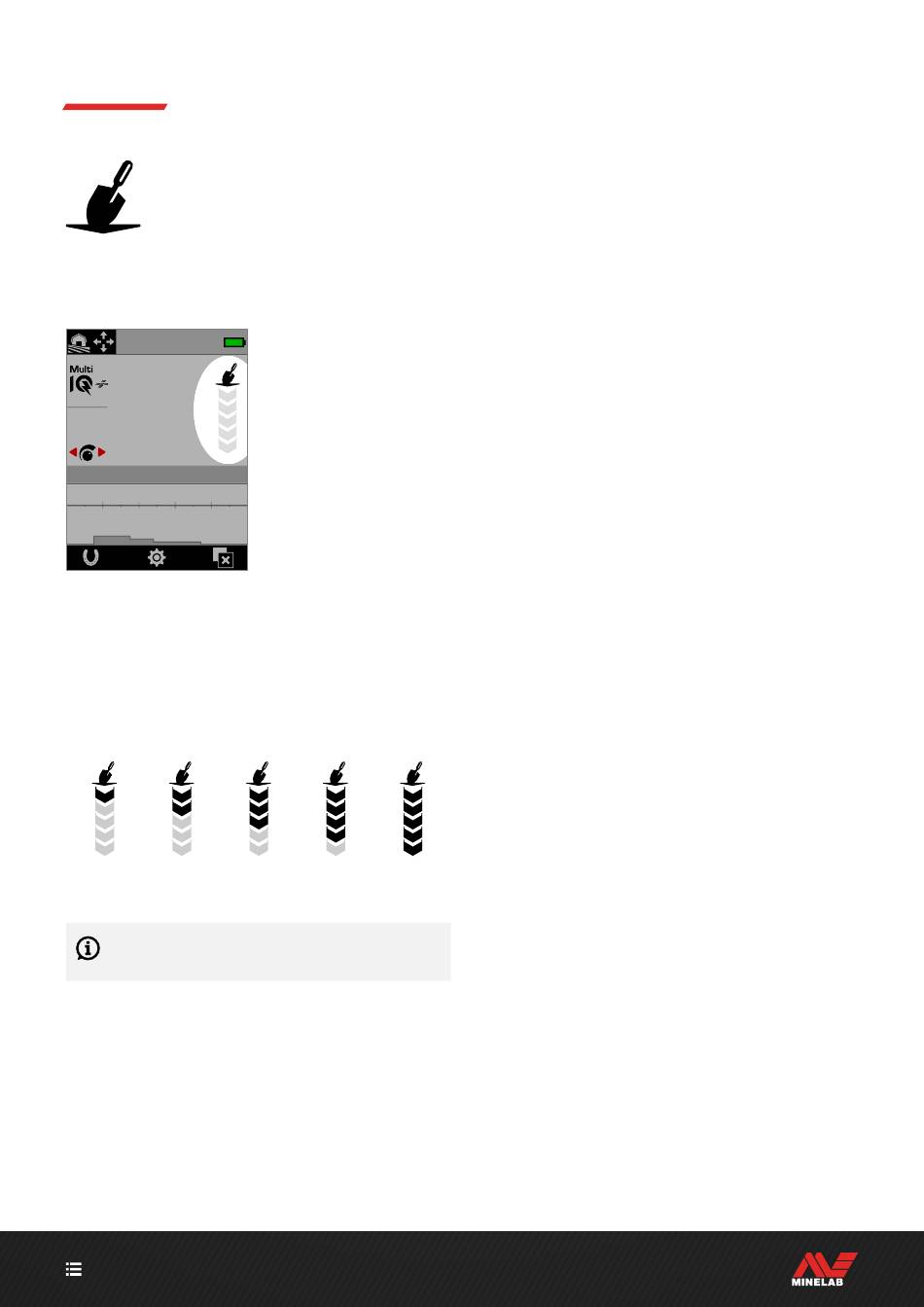

Here is an example of the Depth Indicator reading and the
approximate target depth for a US quarter detected in
benign soil�
< 7�5 cm 12�5 cm
< 3" 5"
The Depth Indicator accuracy is reduced in highly
mineralised soil�
