local Email address. When a message is sent to
all recipients, this is the name that will appear in
FROM
the Email column.
[Subject] - Enter here a custom subject that you
would like to have appear when a message
failure is sent. When a message is sent to all
recipients, this is the wording that will appear in
SUBJECT
the Email
[SMTP Server Name OR IP Address] – SMTP
stands for Simple Mail Transfer Protocol. This
ACCESSING:

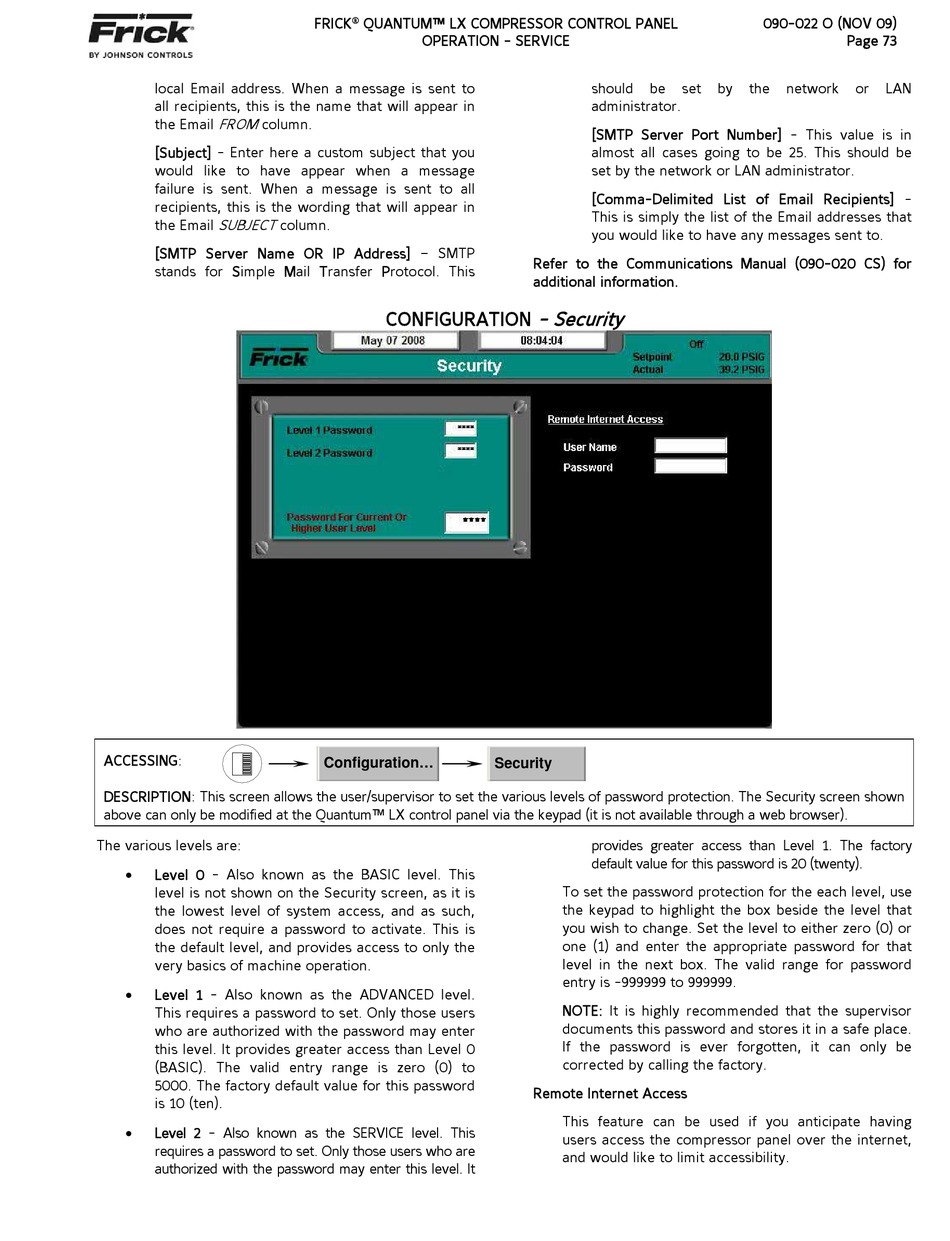

DESCRIPTION: This screen allows the user/supervisor to set the various levels of password protection. The Security screen shown
above can only be modified at the Quantum™ LX control panel via the keypad (it is not available through a web browser).
The various levels are:

Level 0 - Also known as the BASIC level. This
level is not shown on the Security screen, as it is
the lowest level of system access, and as such,
does not require a password to activate. This is
the default level, and provides access to only the
very basics of machine operation.

Level 1 - Also known as the ADVANCED level.
This requires a password to set. Only those users
who are authorized with the password may enter
this level. It provides greater access than Level 0
(BASIC). The valid entry range is zero (0) to
5000. The factory default value for this password
is 10 (ten).

Level 2 - Also known as the SERVICE level. This
requires a password to set. Only those users who are
authorized with the password may enter this level. It
FRICK ® QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION - SERVICE
column.
CONFIGURATION
Configuration...
should be
administrator.
[SMTP Server Port Number] - This value is in
almost all cases going to be 25. This should be
set by the network or LAN administrator.
[Comma-Delimited List of Email Recipients] -
This is simply the list of the Email addresses that
you would like to have any messages sent to.
Refer to the Communications Manual (090-020 CS) for
additional information.

- Security

Security
provides greater access than Level 1. The factory
default value for this password is 20 (twenty).
To set the password protection for the each level, use
the keypad to highlight the box beside the level that
you wish to change. Set the level to either zero (0) or
one (1) and enter the appropriate password for that
level in the next box. The valid range for password
entry is -999999 to 999999.
NOTE: It is highly recommended that the supervisor
documents this password and stores it in a safe place.
If the password is ever forgotten, it can only be
corrected by calling the factory.
Remote Internet Access
This feature can be used if you anticipate having
users access the compressor panel over the internet,
and would like to limit accessibility.
090-022 O (NOV 09)
Page 73
set by the network or LAN
