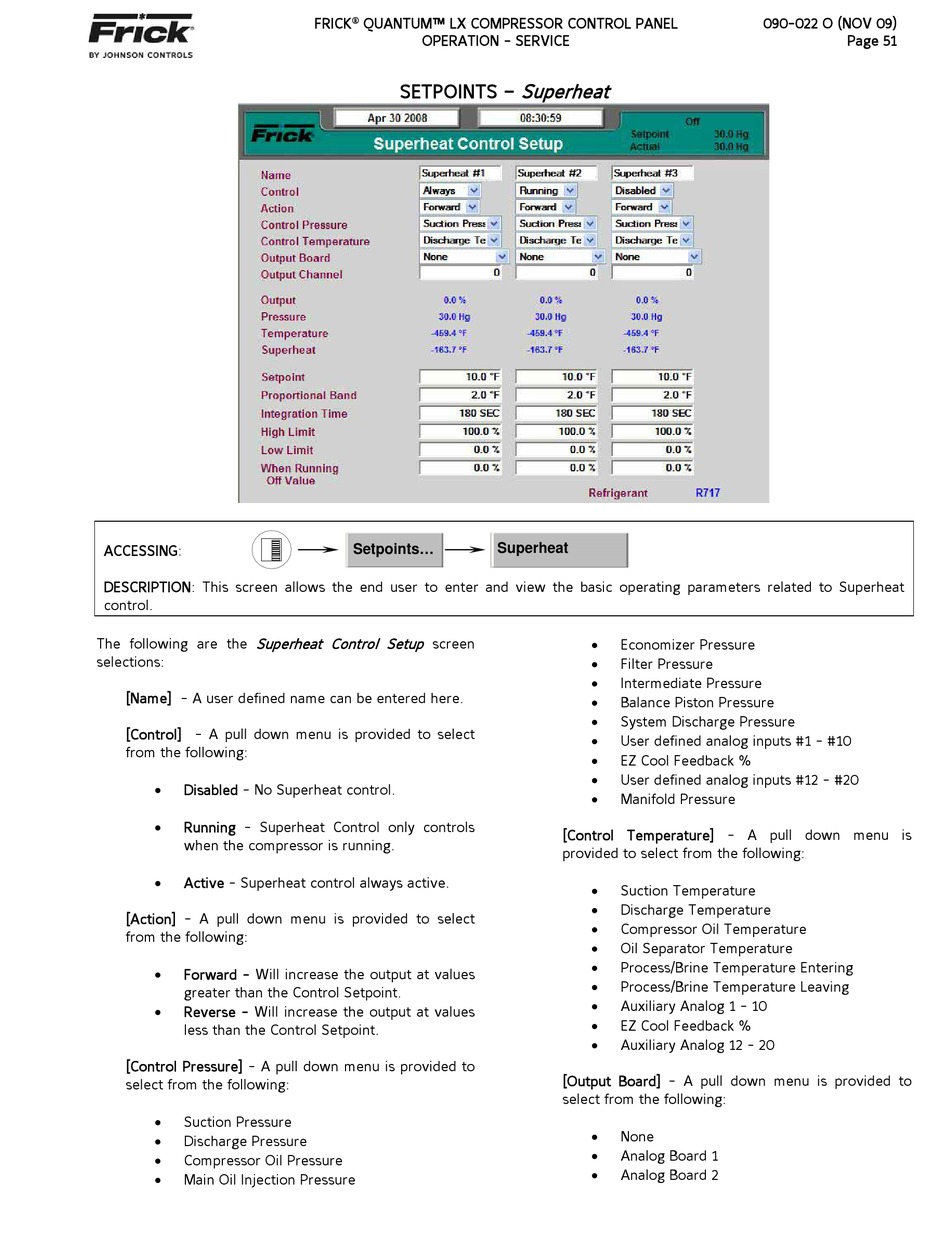

ACCESSING:
DESCRIPTION: This screen allows the end user to enter and view the basic operating parameters related to Superheat
control.
Superheat Control Setup
The following are the
selections:
[Name] - A user defined name can be entered here.
[Control] - A pull down menu is provided to select
from the following:

Disabled - No Superheat control.

Running - Superheat Control only controls
when the compressor is running.

Active - Superheat control always active.
[Action] - A pull down menu is provided to select
from the following:

Forward - Will increase the output at values
greater than the Control Setpoint.

Reverse - Will increase the output at values
less than the Control Setpoint.
[Control Pressure] - A pull down menu is provided to
select from the following:

Suction Pressure

Discharge Pressure

Compressor Oil Pressure

Main Oil Injection Pressure
FRICK ® QUANTUM™ LX COMPRESSOR CONTROL PANEL
OPERATION - SERVICE
SETPOINTS –
Setpoints...
screen

Superheat

Superheat

Economizer Pressure

Filter Pressure

Intermediate Pressure

Balance Piston Pressure

System Discharge Pressure

User defined analog inputs #1 - #10

EZ Cool Feedback %

User defined analog inputs #12 - #20

Manifold Pressure
[Control Temperature] - A pull down menu is
provided to select from the following:

Suction Temperature

Discharge Temperature

Compressor Oil Temperature

Oil Separator Temperature

Process/Brine Temperature Entering

Process/Brine Temperature Leaving

Auxiliary Analog 1 - 10

EZ Cool Feedback %

Auxiliary Analog 12 - 20
[Output Board] - A pull down menu is provided to
select from the following:

None

Analog Board 1

Analog Board 2
