FRICK
®
QUANTUM™ LX COMPRESSOR CONTROL PANEL
090-022 O (NOV 09)
OPERATION - SERVICE
Page 23
-Trending - History Data Log
SYSTEM STATUS
ACCESSING:
System Status...
Trending...
History Data Log

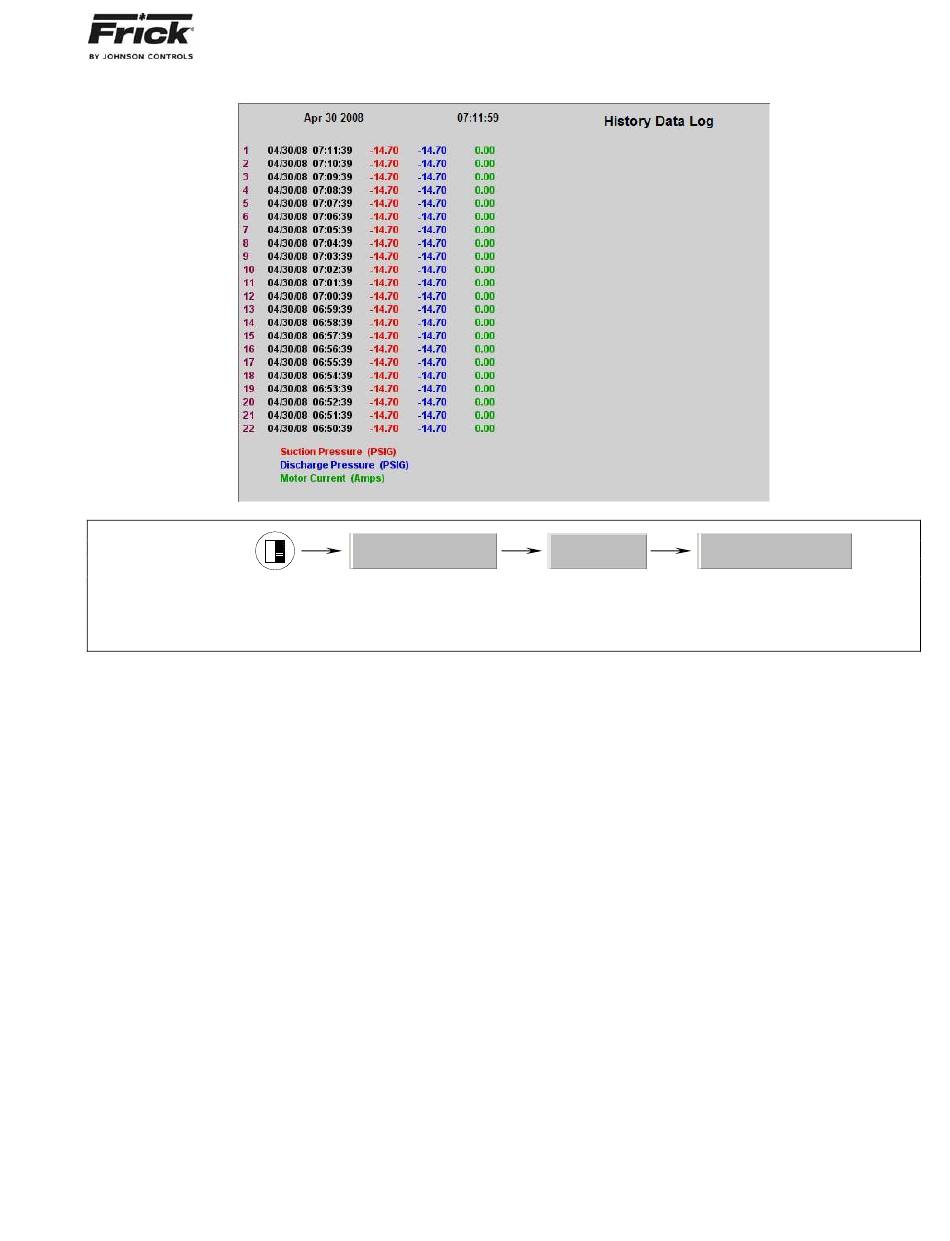

DESCRIPTION: This screen will display in a tabular format, the numerical data values as selected on the
Real Time Trending
Setup
screen. Each of the possible eight selectable channels will be shown at the bottom of the screen, each in a different
color. The color data values displayed in the chart correspond to the matching color of the trending channels at the bottom of
the screen.
The events that can be logged are set using the Trending
Setup screen.
