5.2.3
Current Measurement
The 5068 current meter will display the equivalent current output of the Insulation tester.
Perform the following procedure to measure the current.

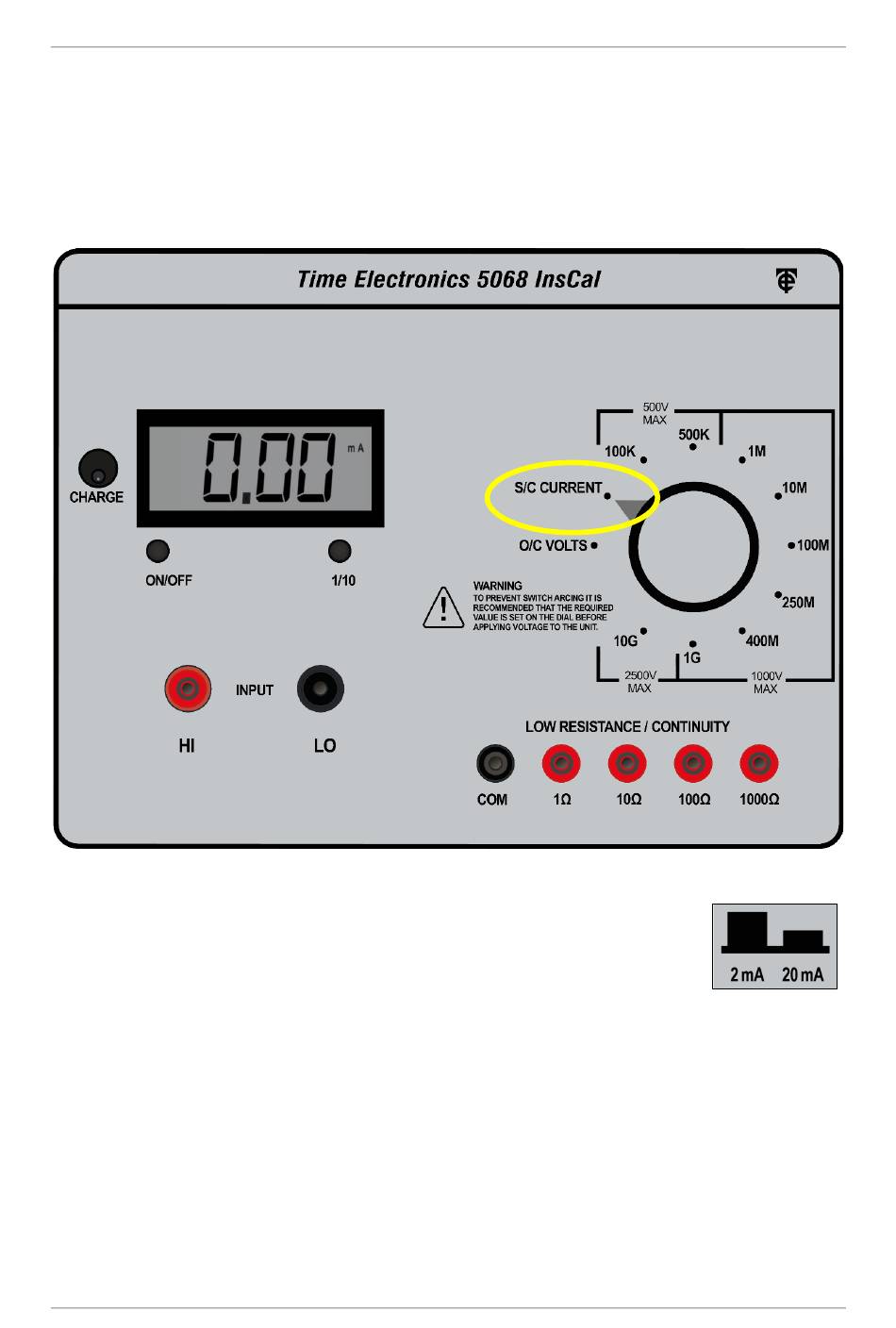

1) On the 5068, select the S/C CURRENT function using the rotator knob.
2) Using range selection button under the display, choose the required
current range: 2 mA or 20 mA.
3) Press the test button on the UUT, and record the current reading on the 5069 display.
Ensure the output of the UUT is turned off after test.
4) Return the 5068 setting to O/C Voltage, and repeat the Voltage Measurement
procedure above (5.2.2). This is to check the voltage has recovered. Switch off the
output from the UUT.
