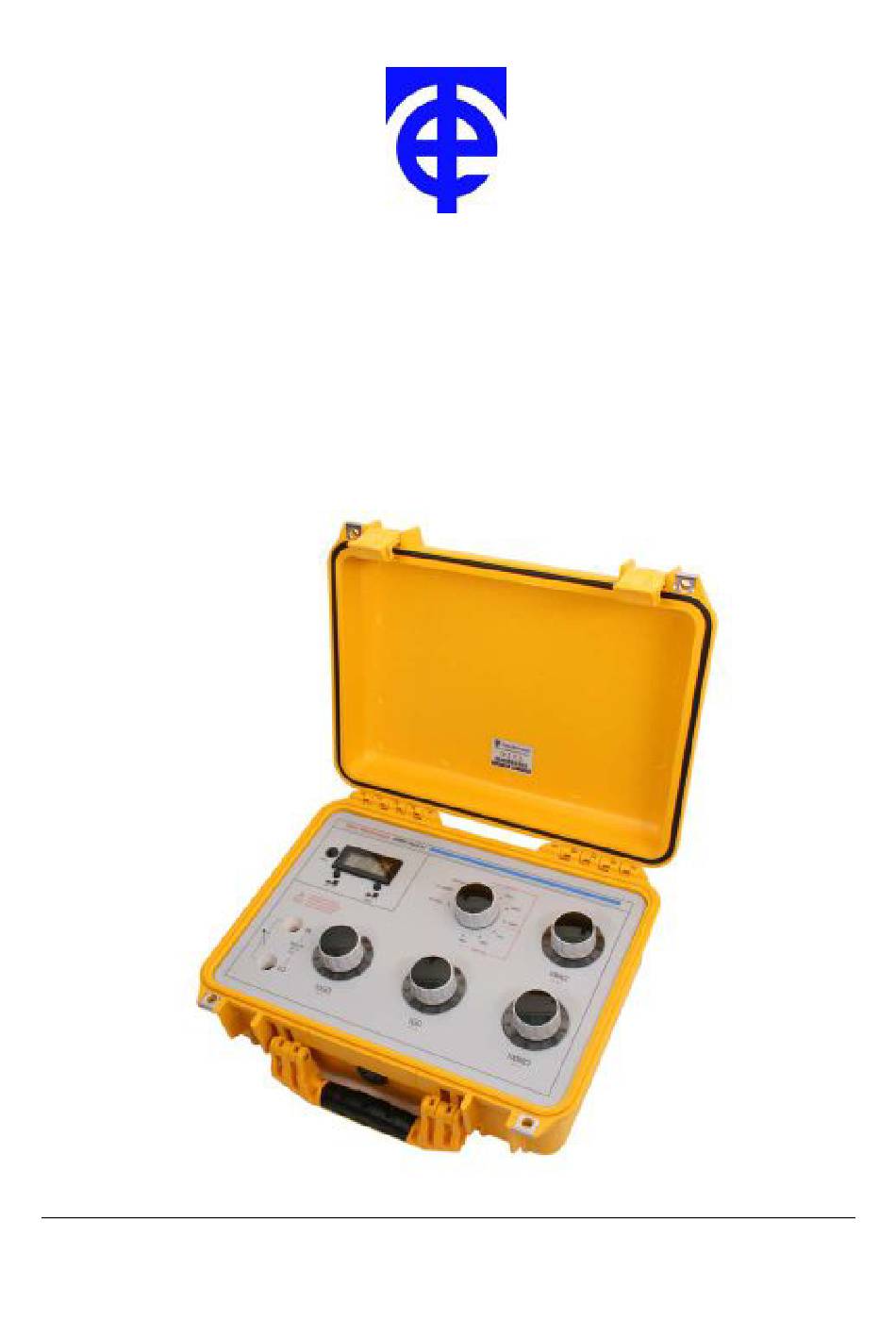

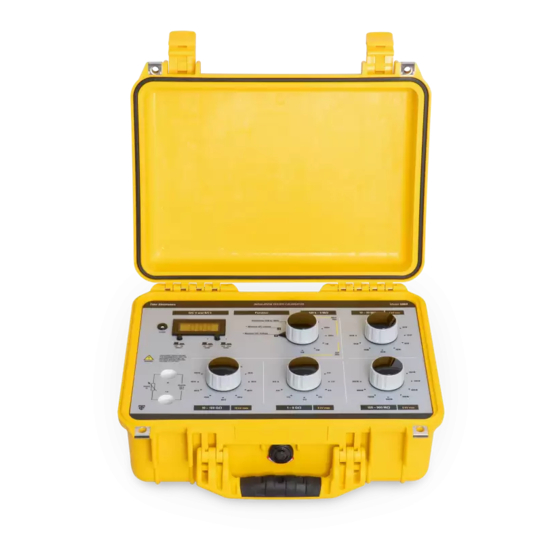

- Page 1 Time Electronics 5069 Ins-Cal Insulation Tester Calibration System Technical Manual V1.2 20/04/11 Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 Email: mail@TimeElectronics.co.uk Web Site: www.TimeElectronics.com...
- Page 2 5069 Ins -C al P roc edural Notes ................ 7 Guarantee & Servicing ..................8 All Time Electronics' instruments are subject to continuous development and improvement and in consequence may incorporate minor detail changes from the information contained herein. 5069 Technical Manual...
- Page 3 1. Supplied Items 5069 Ins-Cal Insulation Tester Calibration System Accessories in the box: 5KV Lead Set Wallet 10KV lead Battery charger 5069 Technical Manual...
- Page 4 2. G eneral Des c ription This instrument provides all the equipment necessary to test and calibrate insulation test sets and megohm meters. It consists of a high precision resistance box, a volt meter and a milliamp meter. It is constructed from very high insulation materials, including its case, and is fully isolated from any external circuits including the mains supply.
- Page 5 3. S pec ific ations 3.1. Technical Specification Insulation Resistance 3 x Spot values, 100KΩ, 200KΩ, 500KΩ, 1%, Max. Volts 500V 3 x Spot values, 1MΩ, 2MΩ, 5MΩ, 1%, Max. Volts 2KV 9 x 10M ohm Max. Volts 1KV 9 x 100M ohm Max.
- Page 6 4. Typic al Operation Ins truc tions 5069 Ins-Cal Typical Operation Procedure 1) Fully charge the battery in the 5069. 2) Fully charge the battery in the insulation tester (or fit fresh batteries). 3) Complete the set up procedure for the insulation tester (UUT = Unit Under Test).
- Page 7 5. 5069 Ins -C al P roc edural Notes 1. Always remove the battery charger leads from both instruments before starting set up. 2. Use only the measuring leads supplied with the Unit Under Test or those supplied with the 5069. When checking high resistance values the leads may pick up electrical interference, which can cause a disturbance to the readings obtained.
- Page 8 We maintain comprehensive after sales facilities and the unit can, if necessary be returned to us for servicing. During this period, Time Electronics Ltd will, at its discretion, repair or replace the defective items. For servicing under guarantee, the instrument type and serial number must always be quoted, together with details of any fault and the service required.
