5069 Insulation Tester Calibrator
5.2.3
Current Measurement

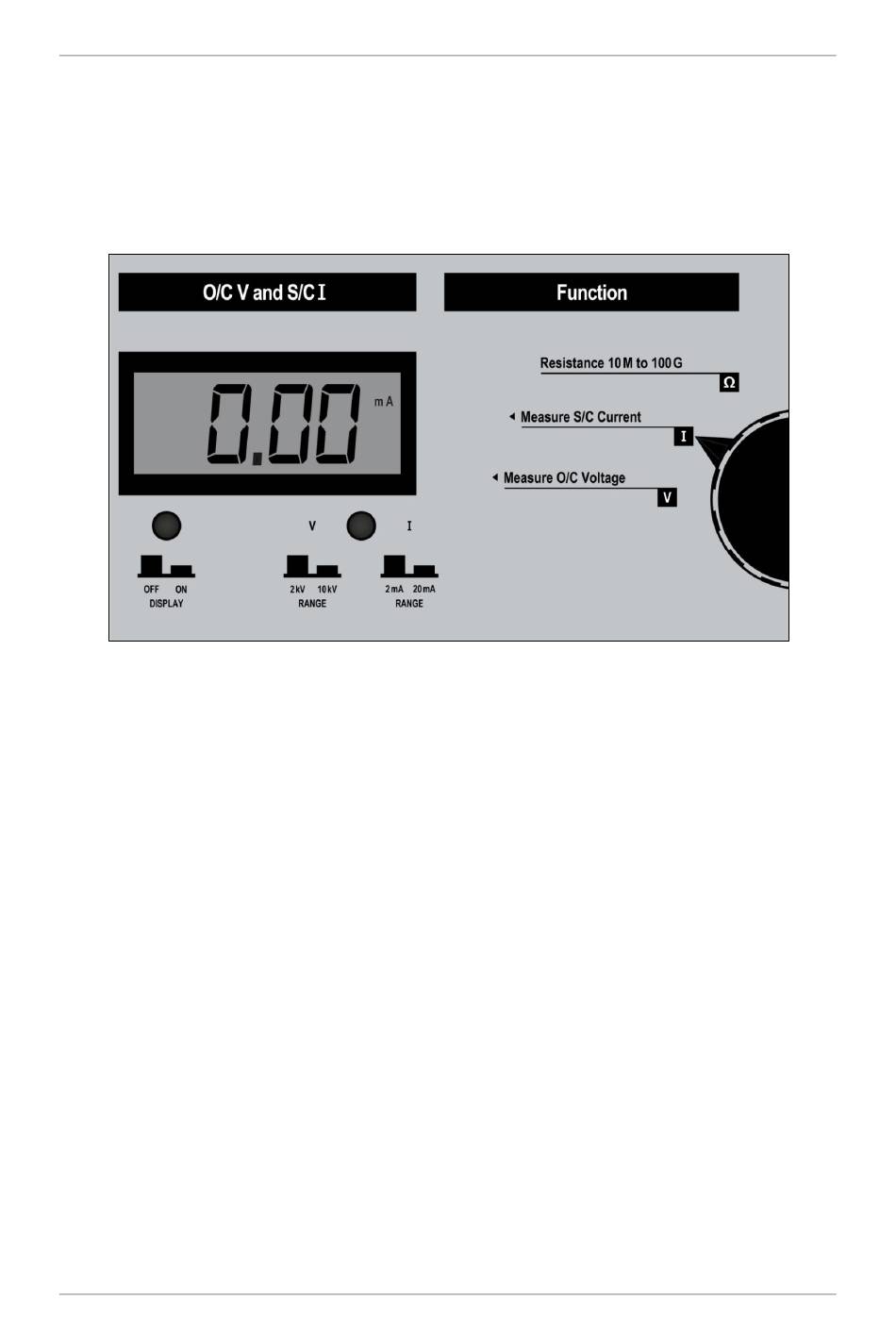

The 5069 current meter will display the equivalent current output of the Insulation tester.
Perform the following procedure to measure the current.
1) On the 5069, select the S/C CURRENT function using the rotator knob.
2) Using 'Range Selection Button' under the display, choose the required current range:
2 mA or 20 mA.
3) Press the test button on the UUT, and record the current reading on the 5069 display.
Ensure the output of the UUT is turned off after test.
4) Return the 5069 setting to O/C Voltage, and repeat the Voltage Measurement procedure
above (5.2.2). This is to check the voltage has recovered. Switch off the output from the UUT.
5069 Insulation Tester Calibrator
User Manual
v2.2
Page 11 of 15
