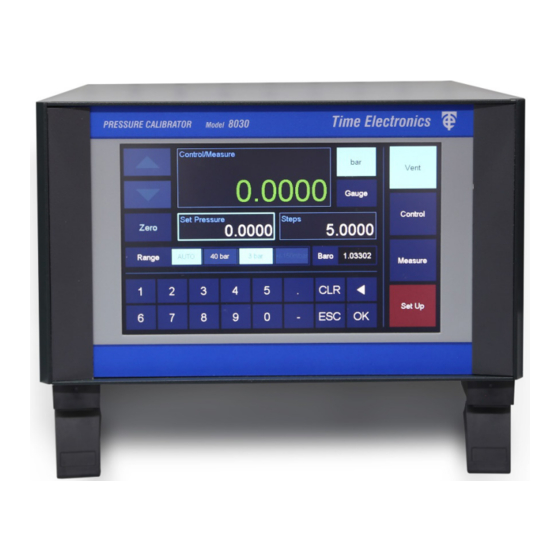

User Manual
8030 and 8030B
Automatic Pressure Controller/Calibrator
Version 1.1
January 2021
Time Electronics Ltd
Unit 5, TON Business Park, 2-8 Morley Road,
Tonbridge, Kent, TN9 1RA, United Kingdom.
T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198
mail@timeelectronics.co.uk | www.timeelectronics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Time Electronics 8030

Summary of Contents for Time Electronics 8030

  • Page 1 User Manual 8030 and 8030B Automatic Pressure Controller/Calibrator Version 1.1 January 2021 Time Electronics Ltd Unit 5, TON Business Park, 2-8 Morley Road, Tonbridge, Kent, TN9 1RA, United Kingdom. T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198...
  • Page 2 All rights reserved. Nothing from this manual may be multiplied, or made public in any form or manner, either electronically or hard copy, without prior written consent from Time Electronics Ltd. This also applies to any schematics, drawings and diagrams contained herein.

  • Page 3: Table Of Contents

    Contents Introduction ............................ 4 Models ..............................5 Technical Specifications ........................6 8030 Front Panel ........................... 7 8030 Rear Panel ............................ 7 8030B Front Panel (CalBench module) ....................8 8030B Rear Panel (CalBench module) ....................8 Installation Notes ........................... 9 8030 Pressure Connections ........................

  • Page 4: Introduction

    Applications The 8030 and 8030B are suitable for use as high performance pressure standards in process plants, instrument workshops, and calibration labs. Routine testing of pressure instrumentation is made quick and simple, whether using the touch screen display or via EasyCal calibration software.

  • Page 5: Models

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 1.1 Models Available pressure ranges Model Configuration Pressure Media (Number of internal sensors) 8030 1 to 3 + Barometric Reference Benchtop Pneumatic (inert gas) 8030B 1 to 3 + Barometric Reference CalBench...

  • Page 6: Technical Specifications

    Air Humidity........0 to 95 % (relative humidity without moisture condensation) Compensated Temp Range...15 to +35 °C (+59 to +95 °F) Dimensions/Weight......8030 Benchtop Versions: W 235 x H 132 x D 375 mm ............Weight: approx. 12kg depending on sensors ordered ............8030B Module Versions: Width 315 mm (295 mm special available) Options...........Internal Barometric Reference, Manifolds, Calibration Certificates.

  • Page 7: 8030 Front Panel

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 1.3 8030 Front Panel The front panel features a 7” TFT touchscreen, to display controls and instrument information. 1.4 8030 Rear Panel Note: Pressure fittings supplied not shown below. Ethernet RS-232 port...

  • Page 8: 8030B Front Panel (Calbench Module)

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 1.5 8030B Front Panel (CalBench module) Test Port The front panel features a 7” TFT touchscreen, to display controls and instrument information. Additionally, the test port is accessed on the front of the console.

  • Page 9: Installation Notes

    Installation Notes The 8030 and 8030B range of pressure controllers need to be supplied with a pressure source equal to the maximum range of the controller. Please observe all warnings and safety instructions when dealing with high pressure supplies and outputs. Please ensure that all users of the instrumentation have fully read and understood operating instructions and safety procedures for handling high pressure systems.

  • Page 10: 8030 Pressure Connections

    8030 Pressure Controller/Calibrator v1.1 2.1 8030 Pressure Connections The 8030 has a number of pressure ports for the supply, venting, reference, and output pressure. All pressure connections except for the Ref. port, have ⅛"G female connections on the rear panel.

  • Page 11: Electrical Connections

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 2.3 Electrical Connections 2.3.1 Mains Socket Before connecting the mains input socket, make sure that the mains voltage corresponds to the specification of the instrument. Switch off the instrument before connecting mains power.

  • Page 12: Operation

    Operation All control of the instrument is via the touchscreen. On power up, the 8030 displays the control menu. This is the main menu the user will utilise to control the output pressure. It is possible to press the Set Up button to change parameters of the pressure controller and various settings and then go back to the main control menu.

  • Page 13: Output Pressure Display Box (Control/Measure)

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.1.1 Output Pressure Display Box (Control/Measure) Control/Measure Vent 0.0000 Gauge Control/Measure Control Set Pressure Steps 1.0000 0.5000 Zero Range AUTO 0..100 bar 0..20 bar -1..2 bar Baro 1.01412 Measure 0.0000 Set Up –...

  • Page 14: Touch Keyboard

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.1.3 Touch keyboard Control/Measure Vent 0.0000 Gauge Control Set Pressure Steps 1.0000 0.5000 Zero Range AUTO 0..100 bar 0..20 bar -1..2 bar Baro 1.01412 Measure Set Up – – The Touch keyboard is in the disabled state by default.

  • Page 15: Set Pressure Box (Set-Point)

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.1.4 Set pressure Box (Set-point) Control/Measure Vent 0.0000 Gauge Control Set Pressure Steps 1.0000 0.5000 Zero Range AUTO 0..100 bar 0..20 bar -1..2 bar Baro 1.01412 Measure Set Pressure 1.0000 Set Up –...

  • Page 16: Steps Box And Buttons

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.1.5 Steps Box and Buttons Control/Measure Vent 0.0000 Gauge Control Set Pressure Steps Steps 1.0000 0.5000 Zero 0.5000 Range AUTO 0..100 bar 0..20 bar -1..2 bar Baro 1.01412 Measure Set Up –...

  • Page 17: Operation Mode Buttons

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.1.6 Operation Mode Buttons Control/Measure Vent 0.0000 Gauge Vent Control Set Pressure Steps 1.0000 0.5000 Zero Range AUTO 0..100 bar 0..20 bar -1..2 bar Baro 1.01412 Measure Set Up – Control Measure The pressure controller can be in 1 of 3 operation modes: Vent, Control or Measure.

  • Page 18: Range Selection Buttons

    Note: it may not be able to change to a fixed range if the current output pressure is higher than the selected range. By touching AUTO the instrument will automatically use the sensor with the most precision for the current output pressure. Example of a 2 sensor 8030: Range AUTO 0...20 bar -1...2 bar...

  • Page 19: Barometric Reference And Absolute Mode (Optional)

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.1.10 Barometric Reference and Absolute Mode (optional) Control/Measure Vent 0.0000 Gauge Control Set Pressure Steps Gauge 1.0000 0.5000 Zero Range AUTO 0..100 bar 0..20 bar -1..2 bar Baro 1.01412 Measure Set Up –...

  • Page 20: Setup Menu Button

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.1.11 Setup menu button Control/Measure Vent 0.0000 Gauge Control Set Pressure Steps 1.0000 0.5000 Zero Range AUTO 0..100 bar 0..20 bar -1..2 bar Baro 1.01412 Measure Set Up Set Up – Pressing the setup button changes the display to show the Setup menu.

  • Page 21: Display Menu

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.3 Display Menu 3.3.1 Display language The display menu allows selection of different languages. Press the required language and then the ‘Back’ button. 3.3.2 Screen Brightness At the bottom of the display menu is the Brightness setting that can be adjusted to user preference.

  • Page 22: Units Menu

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.4 Units Menu In the Unit menu, it is possible to change to instrument to a different pressure unit. This menu is also available from the main control screen as shown earlier.

  • Page 23: Information Menu

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.5 Information Menu Information Vent Model Number TE 8030 Serial Number 17234849 Control BIOS Version TE7V249.987-6409 Hardware 90270-76944-77231 Measure Time Electronics Calibration, Test and Measurement Back Unit 5 TON Business Park, 2-8 Morley Road, Tonbridge, Kent, TN9 1RA. United Kingdom.

  • Page 24: Control Menu

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.6 Control Menu The Control Menu allows adjustment of the Control Mode, Supply Pressure and Control Limit. It also allows access to the custom control mode menu. Once the options are made using buttons and on-screen keyboard, press the ‘Back’ button to return to the Setup Menu.
  • Page 25 Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.6.1.1 Fast Mode In this mode the controller is at its fastest. The resolution is low and the stability window is wider. This means the controller can reach the set pressure quickly and remain stable. This mode is suitable for most industrial testing applications of gauges, transmitters etc.

  • Page 26: Stable Hold Feature

    The stable hold feature is suitable for many applications, especially when working with low resolution UUTs, when the extended resolution the 8030 displays is not required. With this setting the user returns to the Main Control Screen and selects the pressure as usual, then the controller outputs and controls to this set point.

  • Page 27: Control Limit

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.6.3 Control Limit The control limit is usually set at 110% of maximum range of the unit. The control limit sets a high priority monitoring task on the controller and if the pressure at the output exceeds this amount the controller will activate the VENT port immediately.

  • Page 28: Service Menu

    In the Service menu, it is possible to enter a passcode for the authorised service menus. Enter code ‘48485’ for access to the Units Resolution and Network settings. For additional settings access please contact Time Electronics. 3.7.1 Units Resolution and Network settings Once accessed the user can view the pre-configured settings for unit resolution and network communications.
  • Page 29 The remote control software application is pre-loaded as standard, and EasyCal software will be setup (if ordered). See the 8030 Control Centre Software user manual for further details on this application: 8030 Pressure Controller/Calibrator Page 29 of 36...
  • Page 30 Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 3.7.1.2 Units Resolution Menu The Units Resolution Menu enables user to edit the resolution settings for the pressure units displayed on the main control screen. If the Barometric Reference is present then the unit resolution for that can also be adjusted.

  • Page 31: Using The 7115 Contamination Trap

    8030, damaging it and compromising the operation of the control valves. This may also occur when selecting negative setpoints (vacuum). The contamination trap must be placed between the 8030 and the UUT in order to avoid that liquid (water, oil etc.) and residues from these process instruments damage the internal system of the controller.

  • Page 32: Setting Up The 7115

    This guide will show the connections and usage with the 8030/8030B Pressure Controllers. 8030B is the module version of the 8030. The CLEAN port must be connected to the 8030 pressure controller. The DIRTY (UUT*) port must be connected to the manifold, manometer, pressure switch, transmitter or other process instruments that will be calibrated or adjusted.

  • Page 33: Example Connections

    4.2.1 Example Connections The 8030 should be used with a liquid trap to ensure that no contamination reaches the instrument. UUT’s can be dirty, with oil and water capable of getting into hoses and affecting instrument performance. Minimess hoses are supplied for connection from the 8030 to the 7115.

  • Page 34: Photos Of Example Set Ups

    Time Electronics User Manual 8030 Pressure Controller/Calibrator v1.1 4.2.2 Photos of Example Set Ups Using a Manifold 7115 8030 Manifold 8030B 7115 8100 8100 Instrumentation Manifold Test Stand Direct to UUT 7115 8030 8030 Pressure Controller/Calibrator Page 34 of 36...

  • Page 35: Warranty And Servicing

    Time Electronics’ total liability is limited to repair or replacement of the product. Note that if Time Electronics determine that the fault on a returned product has been caused by the user, we will contact the customer before proceeding with any repair.
  • Page 36 Returning Instruments Prior to returning your product please contact Time Electronics. We will issue a return merchandise authorization (RMA) number that is to accompany the goods returning. Further instructions will also be issued prior to shipment. When returning instruments, please ensure that they have been adequately packed, preferably in the original packing supplied.
