5068 Insulation Tester Calibrator
5.2.2

Voltage Measurement

The 5068 voltmeter will display the voltage output from the insulation tester.
Perform the following procedure to measure the voltage.
1) Adjust the pointer at zero on the UUT (Analogue meter display, if required).

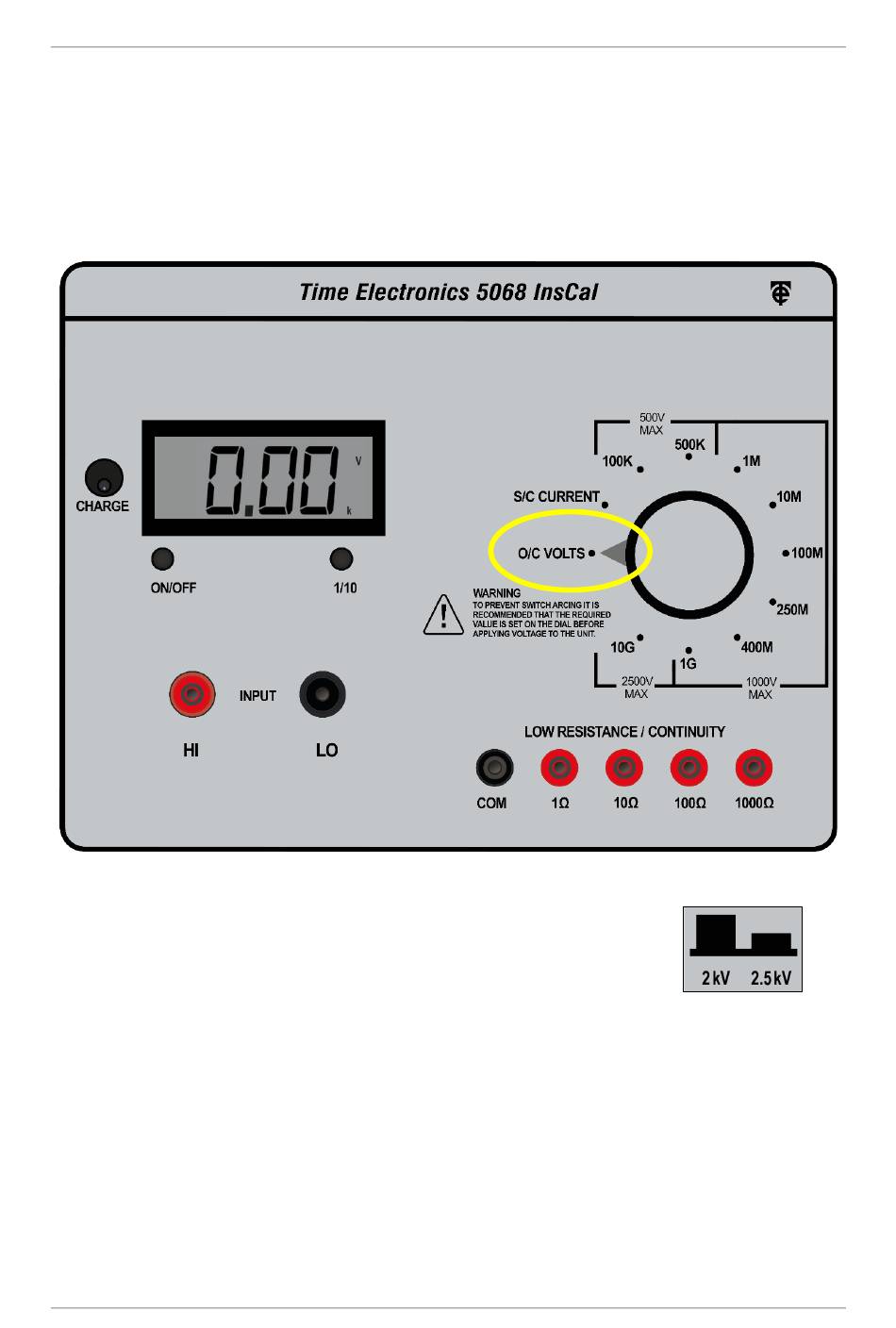

2) On the 5068, select the O/C VOLTS function using the rotator knob.
3) Using range selection button under the display, choose the required
voltage range of 1.999 kV or 2.50 kV.
4) Using the selected high voltage test leads, connect the 5068 to the UUT, observing their
polarities.
5) Select voltage range on UUT, and press the test button.
6) When the reading has stabilised, record the O/C voltage reading on the 5068 voltmeter.
