5068 Insulation Tester Calibrator
5.2.4
Insulation Resistance Verification
Note: The O/C V and S/C I display can be turned off when using the resistance function to conserve
the meter battery life.

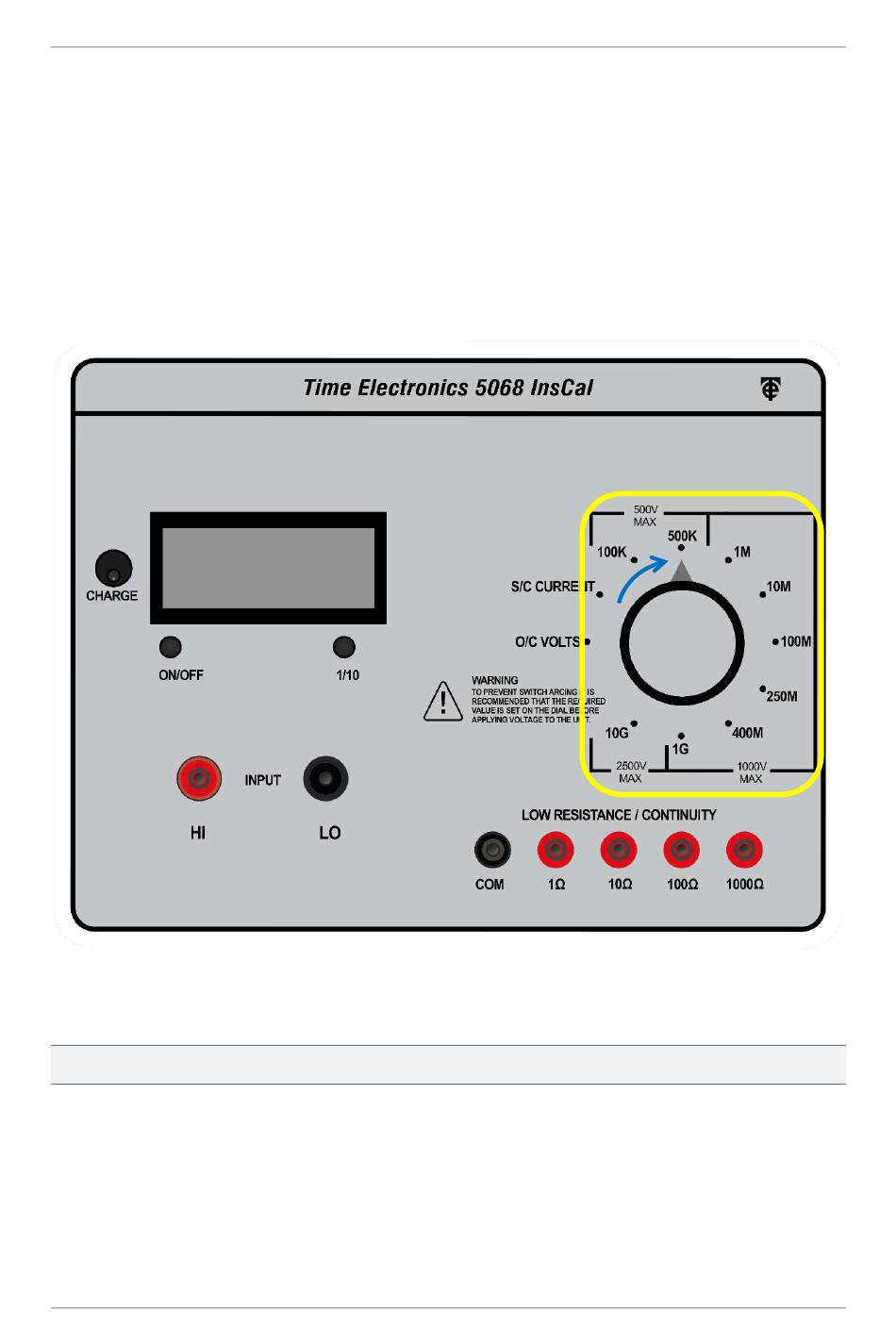

1. Using the rotator knob of 5068, select the required Resistance Spot value.
2. Note the allowed voltage of the spot value resistances shown on the 5068 panel.
Ensure that the voltage set on the UUT does not exceed this voltage rating.
Important Note: Wherever possible use the test leads supplied with the UUT.
5) Press the test button on the UUT. Please note on the higher resistance ranges, due to
the very low currents present, the display on the UUT may fluctuate and take time to
settle, please follow any precautions given by the tester manufacturer.
6) Proceed and record all test results, noting the allowed errors of the 5068 and also for
that of the UUT.
12
User Manual
